Shop Legrand Osmoz Red LED Pilot Light 24V AC/DC IP66 Control Signal | 24601 In Iraq Best Prices
Professional one-piece red LED pilot light with 24V AC/DC rating, IP66/IP69K protection, 22mm mounting, and 50,000-hour lifespan for industrial control and signaling applications.

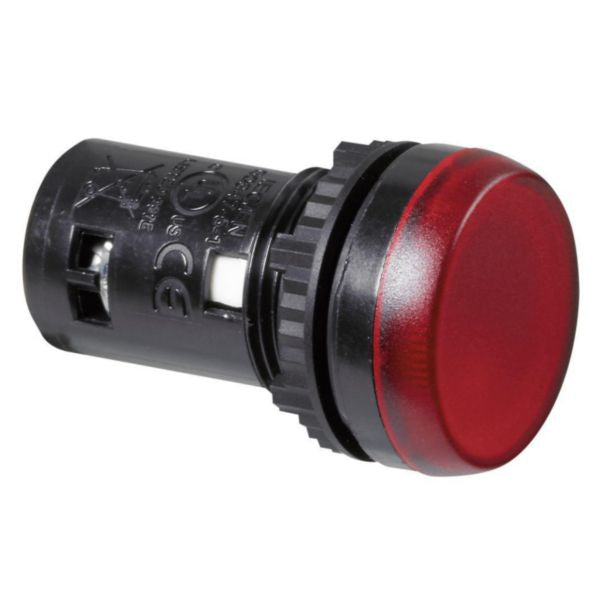

The Osmoz one-piece pilot light with integrated LED is a professional-grade control and signaling auxiliary designed for industrial and commercial applications. This robust indicator light features a red lens with integrated LED technology, rated for 10.8V to 26.4V AC/DC operation, making it versatile for various electrical systems. The unit is manufactured to conform to IEC 60947-5-1 standards and provides reliable status indication with minimal maintenance requirements.
This pilot light is engineered with IP66 and IP69K protection ratings, ensuring superior resistance to dust, water jets, and harsh environmental conditions. The 22mm mounting diameter allows for easy installation in standard control panels and electrical enclosures. With a screw-type electrical connection and flat round lens design, it offers straightforward integration into existing systems. The black plastic front ring provides a professional appearance while maintaining durability.
With an impressive estimated bulb life of 50,000 hours, this LED pilot light eliminates frequent replacement needs and reduces operational costs. Operating temperature range from -25°C to 70°C ensures reliable performance in diverse climates and industrial environments. The one-piece construction eliminates the need for separate electrical blocks, simplifying installation and reducing component inventory. This makes it an ideal choice for OEMs, system integrators, and maintenance professionals seeking dependable control and signaling solutions.
Key Features
- Integrated LED technology eliminates separate lamp installation and reduces maintenance requirements
- IP66 and IP69K protection ratings provide superior resistance to dust, water jets, and harsh environmental conditions
- Wide voltage range 10.8V to 26.4V AC/DC ensures compatibility with diverse electrical systems
- 50,000-hour estimated bulb life significantly reduces replacement costs and operational downtime
- IEC 60947-5-1 compliant design ensures industry-standard reliability and safety performance
- One-piece construction eliminates need for separate electrical blocks, simplifying installation
- 22mm standard mounting diameter allows easy integration into control panels and enclosures
- Operating temperature range -25°C to 70°C provides reliable performance in diverse climates
- Screw-type electrical connection ensures secure and reliable wiring installation
- Red flat round lens design provides clear status indication with professional appearance
Technical Specifications
| Specification |
Value |
| Product Type | One-piece pilot light with integrated LED |
| Lens Color | Red |
| Lamp Socket Type | LED |
| Rated Operating Voltage (Ue) | 10.8-26.4 V AC/DC |
| Voltage Type | AC/DC |
| Electrical Connection Type | Screw connection |
| Lens Construction Type | Round flat |
| Hole Diameter | 22 mm |
| Front Ring Material | Plastic |
| Front Ring Color | Black |
| IP Protection Rating | IP66, IP69K |
| Impact Strength Rating (IK) | IK05 |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Estimated Bulb Life | 50,000 hours |
| Number of Indicator Lights | 1 |
| With Light Source | Yes |
| With Front Ring | No |
| Standards Compliance | IEC 60947-5-1 |
| Reference Number | 024601 |
| EAN Code | 3414970863614 |
