Shop Legrand Osmoz One-Piece Pilot Light LED 130V White Control Signaling | 24605 In Iraq Best Prices
Premium one-piece pilot light with integrated LED, 130V~ operation, IP66/IP69K protection, 100,000-hour lifespan, and screw-connection mounting for industrial control applications.

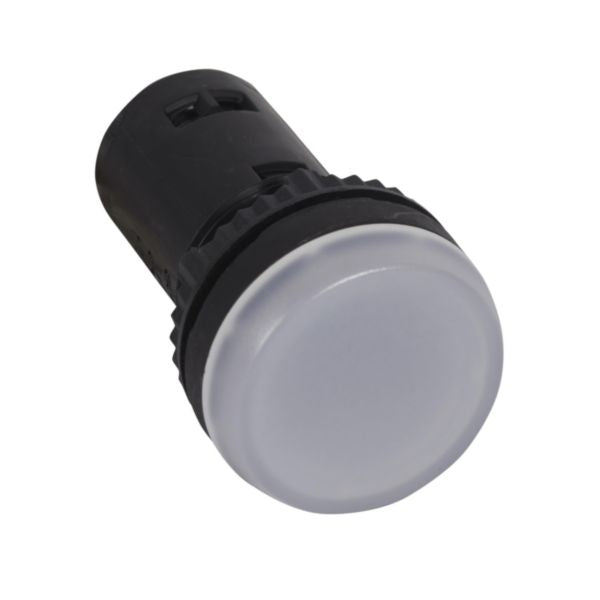

The Osmoz one-piece pilot light is a premium control and signaling auxiliary device designed for industrial and commercial applications. This innovative 130V~ white pilot light features an integrated LED light source, eliminating the need for an additional electrical block. The unit provides exceptional durability with IP66/IP69K protection ratings, ensuring reliable performance in harsh environments including washdown and high-pressure cleaning applications. With an impressive 100,000-hour estimated bulb life, this pilot light offers long-term cost savings and reduced maintenance requirements.
This control and signaling unit features a 22mm screw-connection mounting system that simplifies installation and ensures secure mounting on control panels and electrical enclosures. The flat-lens design with a colourless lens provides excellent visibility while maintaining a professional appearance. The device operates reliably across a temperature range of -25°C to +70°C, making it suitable for diverse industrial environments from cold storage facilities to hot manufacturing areas.
The Osmoz pilot light conforms to IEC 60947-5-1 international standards, guaranteeing compatibility with global electrical systems and installations. Its one-piece construction with integrated LED eliminates complex wiring requirements, reducing installation time and potential errors. The device is supplied with a fixing ring and features an IK05 impact strength rating, providing protection against accidental impacts in demanding industrial settings.
Key Features
- Integrated LED light source eliminates need for additional electrical block
- IP66/IP69K protection rating for harsh washdown and high-pressure environments
- 100,000-hour estimated bulb life for extended operational reliability
- 22mm screw-connection mounting system for simplified installation
- IEC 60947-5-1 compliant for global electrical system compatibility
- Operating temperature range -25°C to +70°C for diverse industrial applications
- IK05 impact strength rating for protection against accidental impacts
- Flat colourless lens design for excellent visibility and professional appearance
Technical Specifications
| Specification |
Value |
| Product Type | One-Piece Pilot Light with Integrated LED |
| Rated Operating Voltage | 130V~ AC (119.6-149.5V range) |
| Voltage Type | Alternating Current (AC) |
| Light Source | Integrated LED |
| Number of Indicator Lights | 1 |
| Lens Color | Colourless |
| Lens Construction Type | Round Flat |
| Hole Diameter | 22mm |
| Mounting Type | Screw Connection |
| Degree of Protection (IP) | IP66/IP69K |
| Impact Strength Rating (IK) | IK05 |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Estimated Bulb Life | 100,000 hours |
| Front Ring Material | Plastic (Black) |
| Front Ring Included | No |
| Standards Compliance | IEC 60947-5-1 |
| Product Reference | REF. 024605 |
| EAN Code | 3414970863737 |
| Manufacturer | Legrand |
Order Legrand Osmoz One-Piece Pilot Light LED 130V White Control Signaling | 24605 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
