Description

Shop Legrand Osmoz Non-Illuminated Stay-Put Mushroom Head Push-Pull Red | 23872 In Iraq Best Prices

Professional-grade Osmoz non-illuminated red mushroom head push-pull button with stay-put latching function, IP66/IP69K protection, and IEC 60947-5-1 compliance for reliable emergency stop applications.

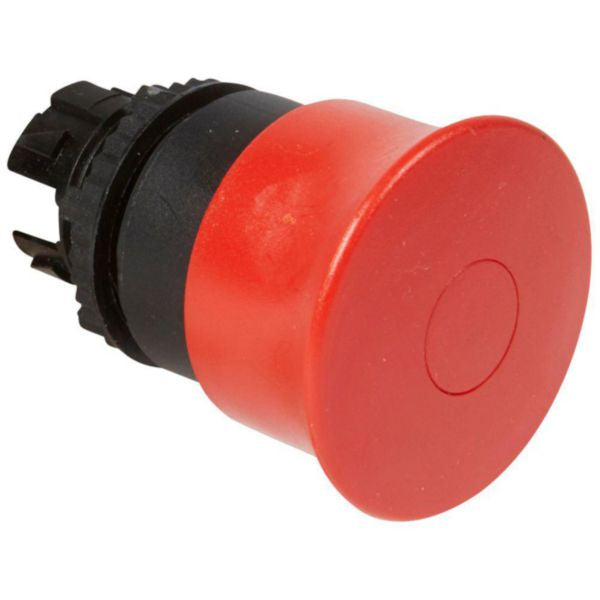

The Osmoz non-illuminated stay-put mushroom head push-pull button in red is a professional-grade control and signalling unit designed for industrial and commercial applications. This emergency stop button features a distinctive mushroom-shaped head with a 40mm diameter, providing clear visibility and easy identification in critical situations. The push-pull mechanism ensures reliable operation with latching functionality, allowing the button to maintain its position until deliberately released. Built to IEC 60947-5-1 standards, this control unit offers exceptional durability and safety performance. This Osmoz button is engineered with IP66/IP69K protection rating, making it suitable for harsh environments including washdown areas and outdoor installations. The red color is specifically chosen for emergency stop applications, meeting international safety standards and conventions. The unit features a 22.5mm hole diameter for standard mounting and includes a fixing ring for secure installation. With halogen-free construction and a wide operating temperature range of -25°C to +70°C, this button ensures reliable performance across diverse environmental conditions. The stay-put design with pull-release unlocking method provides intuitive operation for emergency situations. The button is suitable for high-visibility control applications and comes with comprehensive technical documentation and certifications including UL recognition and VERITAS compliance. This is an essential component for any industrial control panel requiring reliable emergency stop functionality.

Key Features

40mm red mushroom head for clear emergency stop identification
Stay-put latching mechanism with push-pull operation
IP66/IP69K protection rating for harsh and washdown environments
IEC 60947-5-1 compliant control and signalling unit
Halogen-free construction for environmental safety
Wide operating temperature range -25°C to +70°C
22.5mm hole diameter for standard mounting
Includes fixing ring for secure installation
Pull-release unlocking method for intuitive emergency operation
UL recognized and VERITAS certified

Technical Specifications

Specification	Value
Product Name	Osmoz Non-Illuminated Stay-Put Mushroom Head Push-Pull Red
SKU/Reference	023872
EAN Code	3245060238728
Brand	Legrand - Osmoz
Button Color	Red
Head Shape	Mushroom (Round Construction)
Head Diameter	40 mm
Hole Diameter	22.5 mm
Button Type	High
IP Protection Rating	IP66, IP69K
NEMA Protection Rating	4X
Switching Function	Latching (Stay-Put)
Spring-Return Function	No
Operation Type	Push-Pull
Unlocking Method	Pull-Release
Suitable for Emergency Stop	Yes
Front Ring	No (Supplied with Fixing Ring)
Suitable for Lighting	No
Operating Temperature Range	-25°C to +70°C
Storage Temperature Range	-40°C to +70°C
Halogen Free	Yes
Standards Compliance	IEC 60947-5-1
Certifications	UL Recognized, VERITAS (BV) Certified, CB Certificate
Category	Control, Button and Signaling
Application	Industrial and Commercial Emergency Stop

Order Legrand Osmoz Non-Illuminated Stay-Put Mushroom Head Push-Pull Red | 23872 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
