Shop Legrand Osmoz Non-Illuminated Standard Handle Selector Switch 3 Positions Spring Return | 23928 In Iraq Best Prices
Professional 3-position selector switch with spring return mechanism, IP66/IP69K protection, halogen-free construction, and -25°C to 70°C operating temperature range for industrial control applications.

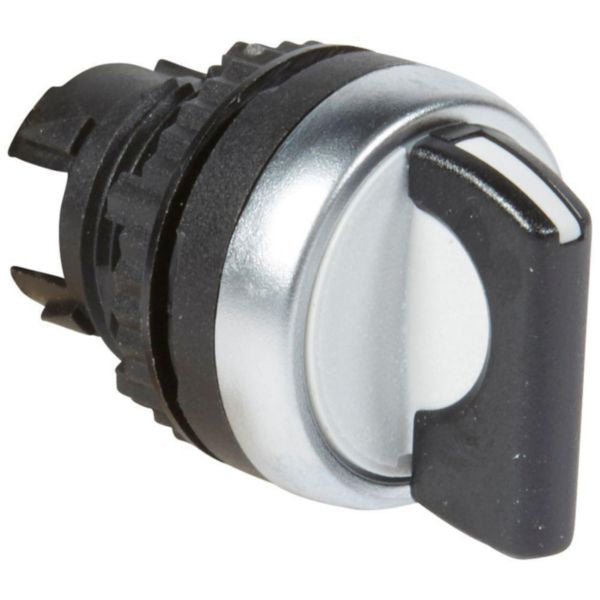

The Osmoz non-illuminated standard handle selector switch is a professional-grade control and signalling unit designed for industrial applications. This 3-position selector switch features a spring return to center mechanism with a 45-degree rotation angle, making it ideal for applications requiring automatic return to neutral position. The switch is supplied with a fixing ring and constructed with a black wing knob control element, providing reliable and intuitive operation in demanding environments.
This selector switch conforms to international standards IEC 60947-5-1 and offers exceptional protection ratings of IP66 and IP69K, ensuring reliable performance in harsh conditions including high-pressure water jets and dust-laden environments. The device features a 22.5mm hole diameter and is constructed with halogen-free materials, meeting strict environmental compliance requirements. The plastic front ring with chrome finish provides both aesthetic appeal and corrosion resistance, while the IK05 impact strength rating ensures durability against mechanical stress.
Operating across a temperature range of -25°C to 70°C, this Osmoz selector switch is engineered for versatility and long-term reliability. The non-latching design with spring-return functionality makes it particularly suitable for emergency stop circuits, mode selection, and other applications where automatic return to a safe position is critical. With its robust construction and comprehensive technical specifications, this industrial control element represents a dependable solution for modern manufacturing and automation systems.
Key Features
- 3-position selector switch with spring return to center at 45-degree rotation angle
- IP66 and IP69K protection ratings for harsh and wet environments
- Non-illuminated design with black wing knob control element
- Halogen-free materials meeting strict environmental compliance standards
- IEC 60947-5-1 international standard compliance for industrial safety
- IK05 impact strength rating for mechanical durability
- Operating temperature range from -25°C to 70°C
- Supplied with plastic front ring with chrome finish
- 22.5mm hole diameter for standard installation
- Non-latching mechanism ideal for emergency stop circuits
Technical Specifications
| Specification |
Value |
| Product Name | Osmoz Non-Illuminated Standard Handle Selector Switch |
| Reference Number | 023928 |
| EAN Code | 3245060239282 |
| Number of Switch Positions | 3 positions with spring return |
| Control Element Type | Wing knob |
| Control Element Color | Black |
| Hole Diameter | 22.5 mm |
| Front Ring Material | Plastic with chrome finish |
| IP Rating Front Side | IP66 and IP69K |
| Impact Strength Rating | IK05 |
| Operating Temperature Range | -25°C to 70°C |
| Storage Temperature Range | -40°C to 70°C |
| Switching Function | Non-latching with spring return |
| Rotation Angle | 45 degrees |
| Halogen Free | Yes |
| International Standard | IEC 60947-5-1 |
| Suitable for Lighting | No |
| Construction Type | Round lens |
| Supplied With | Fixing ring |
| Brand | Legrand Osmoz |
