Shop Legrand Osmoz Non-Illuminated Standard Handle Selector Switch 3 Positions Spring Return | 23926 In Iraq Best Prices
Professional 3-position selector switch with spring-return mechanism, IP66 rated, IEC 60947-5-1 compliant, ideal for industrial control applications

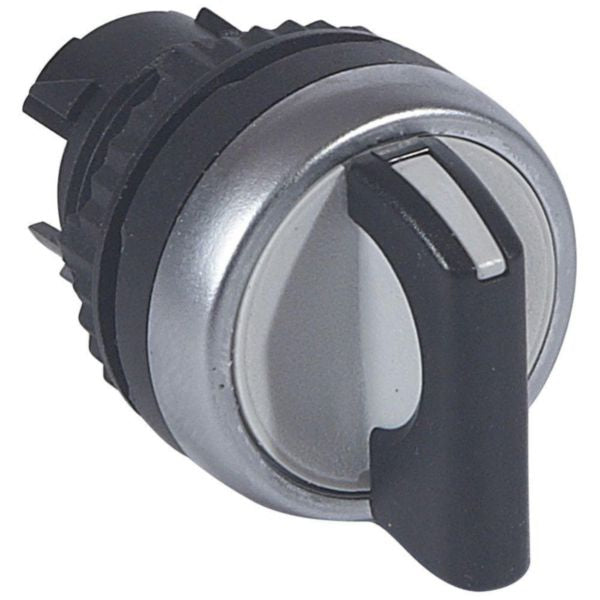

The Osmoz non-illuminated standard handle selector switch is a professional-grade control and signalling unit designed for industrial applications requiring reliable position selection. This 3-position selector switch features a spring-return mechanism from left to center (0), making it ideal for applications where automatic return to neutral is essential. The switch is equipped with a black wing knob control element and a chrome plastic front ring, providing both durability and aesthetic appeal for industrial control panels.
Manufactured to comply with IEC 60947-5-1 standards, this selector switch delivers exceptional protection with IP66 front-side rating and IK05 impact strength. The unit operates reliably across a wide temperature range from -25°C to 70°C, ensuring consistent performance in diverse environmental conditions. With a 22.5mm hole diameter and supplied with a fixing ring, installation is straightforward and secure. The halogen-free construction meets modern environmental and safety requirements, making it suitable for applications where material compliance is critical.
The Osmoz series represents professional-grade industrial control solutions from Legrand, offering superior reliability and performance for demanding applications. This selector switch is backed by comprehensive certifications including UL recognition and VERITAS (BV) approval, demonstrating its suitability for global industrial installations. Whether used in manufacturing, process control, or critical infrastructure applications, this switch provides the dependability and precision required for professional industrial environments.
Key Features
- 3-position selector switch with spring-return mechanism from left to center (0)
- Black wing knob control element for easy operation and clear positioning
- IP66 front-side protection rating for superior environmental resistance
- IK05 impact strength for durability in demanding industrial environments
- IEC 60947-5-1 compliant design ensuring international safety standards
- Chrome plastic front ring with 22.5mm hole diameter for secure installation
- Operating temperature range -25°C to 70°C for reliable performance
- Halogen-free construction meeting modern environmental requirements
- Supplied with fixing ring for easy mounting on control panels
- UL recognized and VERITAS (BV) approved for global industrial use
Technical Specifications
| Specification |
Value |
| Product Name | Osmoz Non-Illuminated Standard Handle Selector Switch |
| Reference Number | 023926 |
| EAN Code | 3245060239268 |
| Number of Positions | 3 positions with spring-return |
| Control Element Type | Wing knob |
| Control Element Color | Black |
| Illumination | Non-illuminated |
| Lens Construction Type | Round |
| Hole Diameter | 22.5 mm |
| Switching Function | Latching with spring-return |
| Front Ring Material | Plastic |
| Front Ring Color | Chrome |
| IP Rating (Front Side) | IP66 |
| Impact Strength (IK Rating) | IK05 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Halogen Free | Yes |
| Supplied With | Fixing ring |
| Standards Compliance | IEC 60947-5-1 |
| Certifications | UL recognized, VERITAS (BV) approved, CB certified |
| Suitable for Lighting | No |
| Product Series | Osmoz Control and Signalling Units |
| Manufacturer | Legrand |
