Professional Osmoz non-illuminated selector switch with 3 stay-put positions, IP 69/69K rated, black wing knob control, IEC 60947-5-1 compliant, ideal for industrial control applications

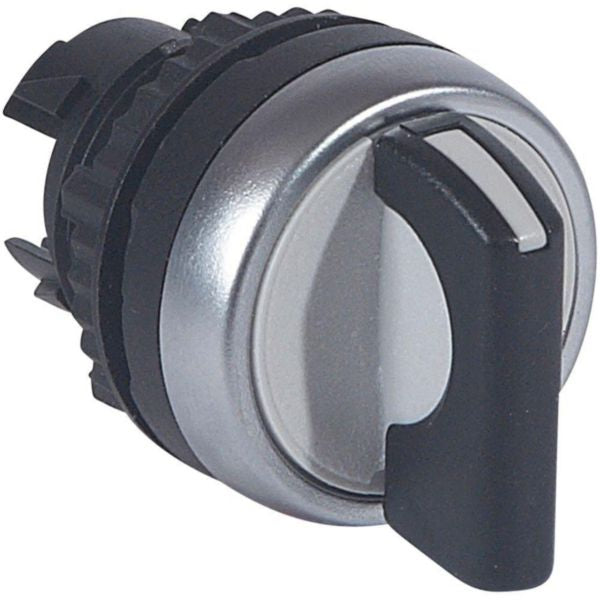

The Osmoz non-illuminated standard handle selector switch is a professional-grade control and signaling unit designed for industrial applications. This 3-position stay-put selector switch features a black wing knob control element and is supplied with a fixing ring for secure installation. Conforming to IEC 60947-5-1 standards, this unit provides reliable switching functionality with a 90-degree rotation between positions. The switch is rated IP 69 and IP 69K for superior protection against dust and high-pressure water jets, making it suitable for harsh industrial environments.
This selector switch is engineered with a round construction type lens and a 22.5mm hole diameter for standard mounting applications. The unit features a latching switching function with no spring-return mechanism, ensuring stable position retention. With a plastic front ring in chrome finish and an IK05 impact strength rating, this switch combines durability with professional aesthetics. The halogen-free construction ensures environmental compliance and safety standards.
Operating across a temperature range of -25 to 70°C, with storage capability from -40 to 70°C, this Osmoz selector switch is built for demanding industrial environments. It has been certified by multiple international bodies including UL, CB, VERITAS (BV), and OC certifications. The product maintains consistent performance in various climatic conditions and industrial settings, making it an ideal choice for control panels, machinery interfaces, and process automation systems.
Key Features
- 3 stay-put positions with 90-degree rotation between each position
- Non-illuminated design with black wing knob control element
- IP 69 and IP 69K rated for superior dust and water jet protection
- IEC 60947-5-1 compliant for industrial control and signaling applications
- Latching switching function with no spring-return mechanism for stable position retention
- IK05 impact strength rating for durability in harsh environments
- Halogen-free construction for environmental compliance and safety
- Operating temperature range -25 to 70°C for versatile climate compatibility
- Chrome finish plastic front ring for professional aesthetics
- 22.5mm hole diameter for standard mounting applications
Technical Specifications
| Specification |
Value |
| Product Name | Osmoz Non-Illuminated Standard Handle Selector Switch |
| Reference Number | 023929 |
| EAN Code | 3245060239299 |
| Number of Switch Positions | 3 stay-put positions |
| Rotation Angle | 90 degrees |
| Control Element Type | Wing knob |
| Control Element Color | Black |
| Construction Type Lens | Round |
| Hole Diameter | 22.5 mm |
| Switching Function | Latching (stay-put) |
| Spring Return | No |
| Front Ring Included | Yes |
| Front Ring Material | Plastic |
| Front Ring Color | Chrome |
| Degree of Protection (IP) Front Side | IP 66 |
| IP Rating | IP 69 / IP 69K |
| Impact Strength (IK) | IK05 |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Halogen Free | Yes |
| Suitable for Lighting | No |
| Compliance Standards | IEC 60947-5-1 |
| International Certifications | UL, CB, VERITAS (BV), OC |
| Brand | Legrand |
| Product Line | Osmoz |
