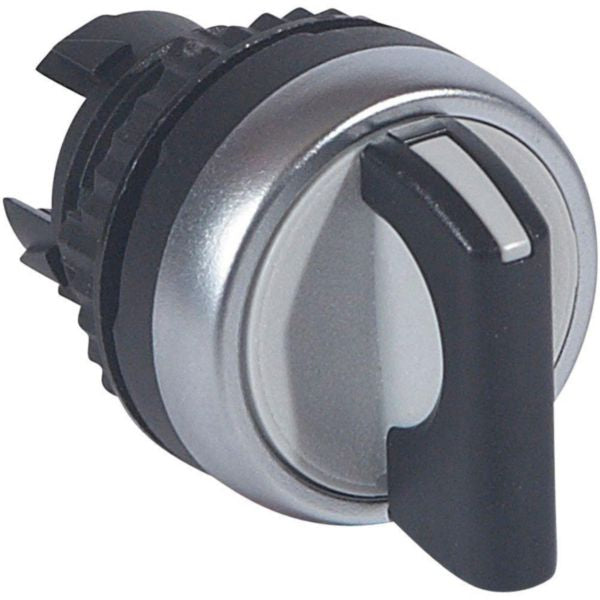

Shop Legrand Osmoz Non-Illuminated Standard Handle Selector Switch 2 Positions Black | 23903 In Iraq Best Prices
Professional industrial selector switch with 2 stay-put positions, non-illuminated design, black handle, IP 69/69K protection, IEC 60947-5-1 compliant, halogen-free construction for demanding control applications.
The Osmoz non-illuminated standard handle selector switch is a professional-grade industrial control device designed for demanding applications requiring reliable position selection. This 2 stay-put position selector switch features a black standard handle with 45° positioning, manufactured by Legrand to meet IEC 60947-5-1 standards. The unit is supplied with a fixing ring and offers exceptional durability with IP 69 and IP 69K protection ratings, making it suitable for harsh industrial environments including washdown and high-pressure cleaning applications.
This selector switch is engineered with precision latching functionality that ensures secure position retention without spring-return operation. The round lens construction with a 22.5mm hole diameter provides clear visibility and easy operation. With a plastic front ring finished in chrome, the device combines aesthetic appeal with functional robustness. The halogen-free construction ensures environmental compliance and safety standards, while the robust IK05 impact resistance rating protects against mechanical stress.
The Osmoz selector switch operates reliably across a wide temperature range from -25°C to +70°C during operation and -40°C to +70°C during storage, making it suitable for both indoor and outdoor installations. As a non-illuminated control element, it provides straightforward, maintenance-free operation without the complexity of indicator lights. This industrial-grade component is ideal for machinery control, process automation, and equipment management systems where dependable position selection is critical.
Key Features
- 2 stay-put positions with 45° angular separation for secure position retention
- Non-illuminated standard handle design in black for straightforward operation
- IP 69 and IP 69K protection ratings for washdown and high-pressure environments
- IEC 60947-5-1 compliant industrial control unit with latching functionality
- Halogen-free construction with IK05 impact resistance rating
- Wide operating temperature range -25°C to +70°C for versatile deployment
- Round lens construction with 22.5mm hole diameter for clear visibility
- Plastic front ring with chrome finish for durability and aesthetics
- Supplied with fixing ring for secure installation
- Maintenance-free operation without spring-return mechanism
Technical Specifications
| Specification |
Value |
| Product Type | Selector Switch - Non-Illuminated |
| Number of Positions | 2 stay-put positions |
| Control Element Type | Wing knob (Standard handle) |
| Control Element Color | Black |
| Hole Diameter | 22.5 mm |
| Lens Construction | Round |
| Switching Function | Latching (2 stay-put positions, 45° angular separation) |
| Spring-Return Function | No |
| Front Ring Material | Plastic |
| Front Ring Color | Chrome |
| Degree of Protection (IP) - Front | IP 66 |
| Overall Protection Rating | IP 69, IP 69K |
| Impact Strength Rating (IK) | IK05 |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Halogen-Free | Yes |
| Standards Compliance | IEC 60947-5-1 |
| Suitable for Lighting | No |
| Manufacturer | Legrand |
| Reference Number | 023903 |
| EAN Code | 3245060239039 |
| Accessories Included | Fixing ring |
