Shop Legrand Osmoz Non-Illuminated Long Handle Selector Switch 3 Positions 45° | 23940 In Iraq Best Prices
Professional Osmoz selector switch with 3 stay-put positions, long black handle, IP69/IP69K protection, and IEC 60947-5-1 compliance for industrial control applications.

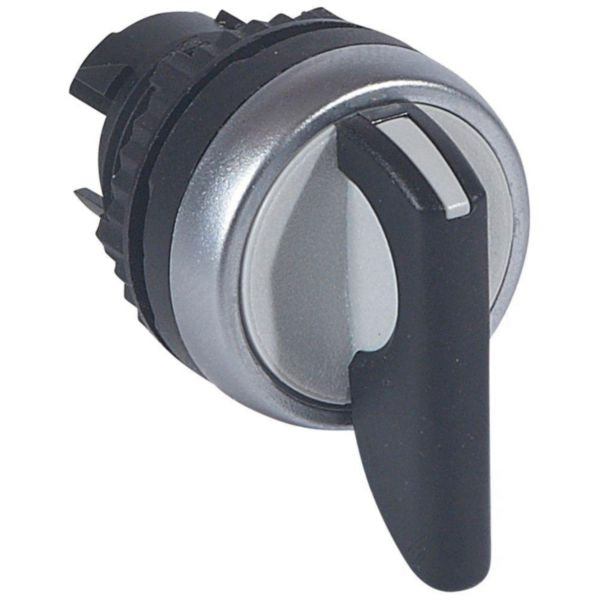

The Osmoz non-illuminated long handle selector switch is a professional-grade control and signaling unit designed for industrial applications requiring reliable switching functionality. This selector switch features three stay-put positions with a 45° rotation angle, making it ideal for precise control operations in demanding environments. The unit is equipped with a black long handle rocker lever for intuitive operation and comes supplied with a fixing ring for secure installation. Built to conform to IEC 60947-5-1 international standards, this switch delivers exceptional durability and performance in harsh industrial conditions.
This control element is engineered with advanced protection features including IP 69 and IP 69K ratings, ensuring complete protection against dust and high-pressure water jets. The 22.5mm hole diameter accommodates standard mounting configurations, while the plastic front ring with chrome finish provides both aesthetic appeal and functional protection. The halogen-free construction meets modern environmental and safety requirements, making it suitable for facilities with strict compliance standards. With an operating temperature range of -25°C to 70°C and storage capability from -40°C to 70°C, this selector switch maintains reliable performance across diverse climatic conditions.
The Osmoz selector switch combines robust engineering with user-friendly design, offering latching functionality without spring-return action for stable position holding. The IK05 impact strength rating ensures resistance to mechanical stress, while the IP66 front-side protection guarantees reliable operation in wet and dusty environments. This professional-grade component is ideal for manufacturing facilities, automation systems, and industrial control panels where dependable switching performance is critical.
Key Features
- 3 stay-put positions with 45° rotation angle for precise control operations
- Long black rocker lever handle for intuitive and ergonomic operation
- IP 69 and IP 69K protection ratings for complete dust and high-pressure water resistance
- IEC 60947-5-1 compliant design meeting international industrial standards
- Halogen-free construction for environmental and safety compliance
- Latching functionality without spring-return for stable position holding
- IK05 impact strength rating for mechanical stress resistance
- IP66 front-side protection for reliable operation in wet and dusty environments
- Wide operating temperature range from -25°C to 70°C
- Supplied with fixing ring and plastic front ring with chrome finish
Technical Specifications
| Specification |
Value |
| Product Name | Osmoz Non-Illuminated Long Handle Selector Switch |
| Reference Number | 023940 |
| EAN Code | 3245060239404 |
| Number of Switch Positions | 3 |
| Type of Control Element | Rocker Lever |
| Control Element Color | Black |
| Rotation Angle | 45° |
| Hole Diameter | 22.5 mm |
| Switching Function | Latching (Stay-put) |
| Spring-Return Function | No |
| Front Ring Included | Yes |
| Front Ring Material | Plastic |
| Front Ring Color | Chrome |
| IP Rating (Front Side) | IP66 |
| IP Rating (Overall) | IP 69, IP 69K |
| Impact Strength Rating | IK05 |
| Operating Temperature Range | -25°C to 70°C |
| Storage Temperature Range | -40°C to 70°C |
| Halogen-Free | Yes |
| International Standard | IEC 60947-5-1 |
| Construction Type Lens | Round |
| Suitable for Lighting | No |
| Brand | Legrand |
| Product Line | Osmoz |
