Description

Shop Legrand Osmoz Non-Illuminated Key Selector Switch 3 Positions 90° | 23963 In Iraq Best Prices

Professional 3-position key selector switch with 90° rotation, IP66/IP69K protection, latching mechanism, and halogen-free construction for secure industrial control applications.

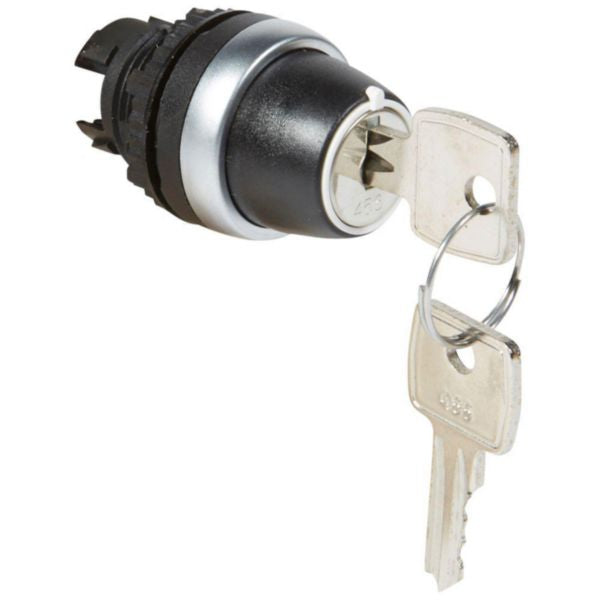

The Osmoz non-illuminated key selector switch is a professional-grade control and signalling unit designed for industrial applications requiring reliable switching functionality. This 3-position stay-put selector switch features a 90-degree rotation with key-free operation in all three positions, providing secure and convenient control. The unit is supplied with a fixing ring and conforms to IEC 60947-5-1 standards, ensuring compliance with international electrical safety requirements. With IP66 and IP69/IP69K protection ratings, this switch is suitable for demanding environments including washdown and harsh conditions. The silver-colored key control element operates with a latching mechanism, eliminating the need for spring-return functionality. The round lens construction with a 22.5mm hole diameter integrates seamlessly into standard control panels. The plastic front ring in chrome finish provides both aesthetic appeal and functional durability. Operating across a wide temperature range of -25°C to +70°C, this selector switch maintains reliable performance in diverse environmental conditions. The halogen-free construction ensures environmental compliance and safety in critical applications. This Osmoz selector switch is ideal for machinery control, process automation, and industrial equipment where secure key-operated switching is essential. The IP66 degree of protection ensures resistance to water jets and dust ingress, while the IK05 impact strength rating protects against mechanical stress. Perfect for applications requiring positive confirmation of switch position and secure key-based operation.

Key Features

3 stay-put positions with 90-degree rotation for secure switching
Key-operated control element for enhanced security and authorized access only
IP66 and IP69/IP69K protection ratings for harsh and washdown environments
IEC 60947-5-1 compliant design ensuring international electrical safety standards
Halogen-free construction meeting environmental and safety requirements
Wide operating temperature range -25°C to +70°C for diverse applications
Latching mechanism eliminating spring-return for positive position confirmation
22.5mm hole diameter fitting standard control panel installations
IK05 impact strength rating for mechanical durability
Chrome-finished plastic front ring for durability and aesthetics

Technical Specifications

Specification	Value
Product Name	Osmoz Non-Illuminated Key Selector Switch
Reference Number	023963
EAN Code	3245060239633
Number of Switch Positions	3
Rotation Angle	90 degrees
Control Element Type	Key
Control Element Color	Silver
Lens Construction	Round
Hole Diameter	22.5 mm
Switching Function	Latching (Stay-put)
Spring-Return Function	No
Front Ring Included	Yes
Front Ring Material	Plastic
Front Ring Color	Chrome
IP Rating (Front Side)	IP66, IP69, IP69K
Impact Strength Rating	IK05
Operating Temperature Range	-25°C to +70°C
Storage Temperature Range	-40°C to +70°C
Halogen Free	Yes
International Standard	IEC 60947-5-1
Suitable for Lighting	No
Brand	Legrand
Product Series	Osmoz
Key Free Positions	3 positions

Order Legrand Osmoz Non-Illuminated Key Selector Switch 3 Positions 90° | 23963 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
