Shop Legrand Osmoz Non-Illuminated Key Selector Switch 2 Positions 45° | 23950 In Iraq Best Prices
Professional industrial key selector switch with 2 stay-put positions, IP69/IP69K protection, latching function, and compliance with IEC 60947-5-1 standards. Halogen-free and suitable for harsh environments.

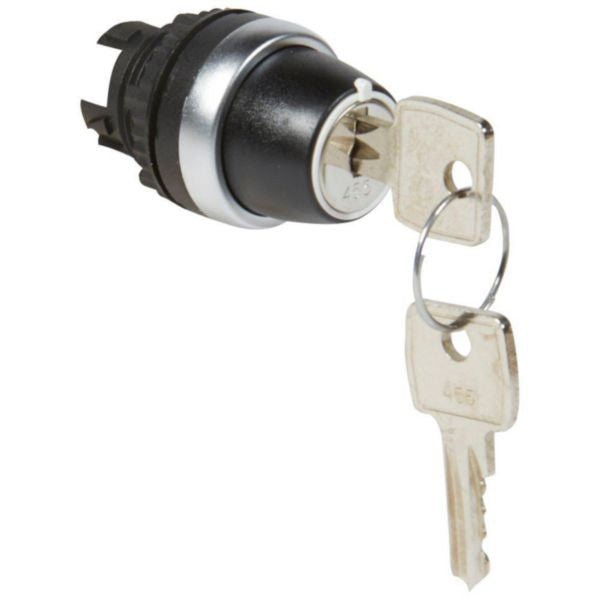

The Osmoz non-illuminated key selector switch is a professional-grade control and signalling unit designed for industrial applications requiring secure, latching key-operated switching. This robust device features 2 stay-put positions with a 45-degree rotation angle, providing reliable operation in demanding environments. The selector switch is supplied with a fixing ring and conforms to international standards IEC 60947-5-1, ensuring compatibility with industrial control systems worldwide.
Built with exceptional durability, this switch offers IP69 and IP69K protection ratings, making it suitable for harsh conditions including high-pressure water jets and extreme temperatures. The silver-colored key control element operates smoothly with a latching function that maintains position without spring-return, ensuring stable operation. The round lens construction with a 22.5mm hole diameter allows for straightforward installation in standard mounting locations.
The switch features a chrome-colored plastic front ring with IP66 degree of protection on the front side and IK05 impact strength rating. Operating reliably across a wide temperature range from -25°C to 70°C, with storage capability from -40°C to 70°C, this Osmoz selector switch is halogen-free and meets modern environmental standards. Perfect for industrial control panels, machinery operation, and emergency stop systems requiring key-operated access control.
Key Features
- 2 stay-put positions with 45-degree rotation angle for secure operation
- Key-operated control element with silver color and latching function
- IP69 and IP69K protection ratings for harsh industrial environments
- IEC 60947-5-1 compliance ensuring international industrial standards
- Wide operating temperature range from -25°C to 70°C
- IP66 front protection with IK05 impact strength rating
- Chrome-colored plastic front ring with fixing ring supplied
- Halogen-free construction meeting modern environmental requirements
- 22.5mm hole diameter for standard mounting applications
- No spring-return mechanism for stable latching position
Technical Specifications
| Specification |
Value |
| Product Reference | 023950 |
| EAN Code | 3245060239503 |
| Number of Switch Positions | 2 |
| Type of Control Element | Key |
| Suitable for Lighting | No |
| Color of Control Element | Silver |
| Construction Type Lens | Round |
| Hole Diameter | 22.5 mm |
| Switching Function | Latching |
| Spring-Return | No |
| Front Ring Included | Yes |
| Front Ring Material | Plastic |
| Front Ring Color | Chrome |
| Degree of Protection (IP) Front Side | IP66 |
| Impact Strength Rating (IK) | IK05 |
| Operating Temperature Range | -25°C to 70°C |
| Storage Temperature Range | -40°C to 70°C |
| Halogen Free | Yes |
| International Standard Compliance | IEC 60947-5-1 |
| Protection Rating | IP69, IP69K |
Order Legrand Osmoz Non-Illuminated Key Selector Switch 2 Positions 45° | 23950 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
