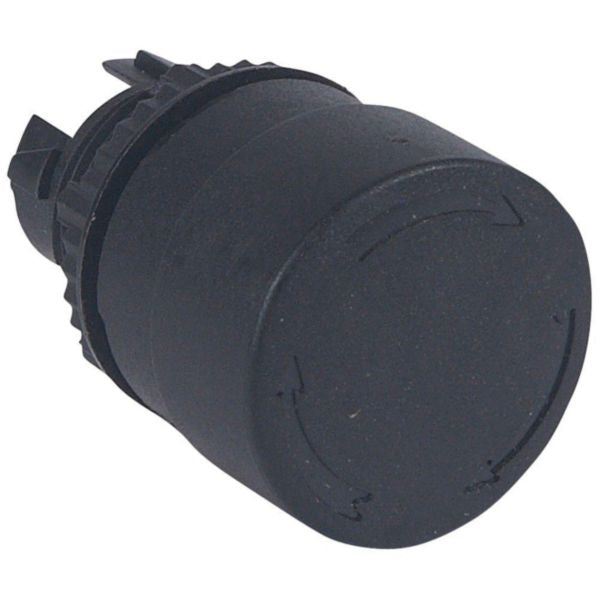

Shop Legrand Osmoz Non-Illuminated Stay-Put Mushroom Head Push-Turn Black 32mm | 23881 In Iraq Best Prices
Professional-grade Osmoz non-illuminated mushroom pushbutton with 32mm black head, latching function, IP66 protection, and push-turn release mechanism for industrial control applications
The Osmoz non-illuminated stay-put mushroom head push-turn button is a premium industrial control component manufactured by Legrand. This high-quality mushroom-shaped pushbutton features a robust 32mm diameter design with a black construction, specifically engineered for industrial applications requiring reliable latching functionality. The device operates with a push-turn release mechanism, making it ideal for emergency stop applications and critical control systems. With its IP66 rating and NEMA 4X protection degree, this button ensures superior protection against dust, water jets, and harsh environmental conditions.
This Osmoz pushbutton is constructed with screw terminals for secure and reliable electrical connections. It complies with the international IEC 60947-5-1 standard, guaranteeing compatibility with global industrial control systems. The button features a latching switching function with spring-return capabilities, allowing operators to maintain a pressed position until manually released. The operating temperature range of -25°C to 70°C ensures reliable performance across diverse industrial environments and seasonal variations. The halogen-free construction makes this component environmentally responsible and suitable for applications where material safety is paramount.
The device is designed with a 22.5mm hole diameter for standard panel mounting, making installation straightforward and compatible with existing control panel configurations. Its high-type button construction provides tactile feedback and ergonomic operation for frequent use scenarios. The turn-release unlocking method ensures intentional operation, preventing accidental activation in critical control situations. With comprehensive certifications including UL recognition and VERITAS approval, this Osmoz pushbutton represents the pinnacle of industrial control reliability and safety standards.
Key Features
- IP66 and NEMA 4X protection rating for harsh industrial environments
- 32mm diameter mushroom head design with black color for visibility
- Latching switching function with push-turn release mechanism
- Complies with IEC 60947-5-1 international industrial control standards
- Halogen-free construction for environmental responsibility and material safety
- Wide operating temperature range of -25°C to 70°C
- Screw terminal connections for secure electrical installation
- UL recognized and VERITAS certified for global reliability
Technical Specifications
| Specification |
Value |
| Product Name | Osmoz Non-Illuminated Stay-Put Mushroom Head Push-Turn Button |
| Reference Number | 023881 |
| EAN Code | 3245060238810 |
| Manufacturer | Legrand |
| Button Diameter | 32 mm |
| Hole Diameter | 22.5 mm |
| Button Color | Black |
| Construction Type | Round lens mushroom head |
| Button Type | High type |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Switching Function | Latching |
| Spring Return | No |
| Release Method | Turn-release |
| Operating Temperature Range | -25°C to 70°C |
| Storage Temperature Range | -40°C to 70°C |
| Terminal Type | Screw terminals |
| Halogen Free | Yes |
| Standard Compliance | IEC 60947-5-1 |
| Suitable for Lighting | No |
| Front Ring | No |
| Suitable for Emergency Stop | No |
| Certifications | UL recognized, VERITAS certified, RoHS compliant |
Order Legrand Osmoz Non-Illuminated Stay-Put Mushroom Head Push-Turn Black 32mm | 23881 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
