Description

Shop Legrand Osmoz Illuminated Standard Handle Select Switch 3 Position Spring Return Green | 24055 In Iraq Best Prices

Professional 3-position illuminated selector switch with spring-return mechanism, IP66/IP69K protection, green handle, and halogen-free construction for industrial control applications

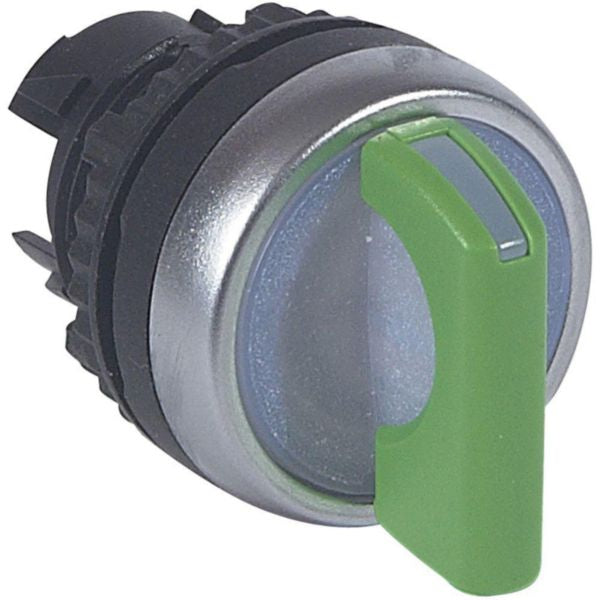

The Osmoz Illuminated Standard Handle Select Switch is a professional-grade control and signalling unit designed for industrial and commercial applications. This 3-position selector switch features a spring-return mechanism that automatically returns from right to center (0) position at 45°, making it ideal for applications requiring momentary or maintained switching functions. The switch is equipped with an illuminated green handle and colourless indicator light cap, providing clear visual feedback in various lighting conditions. This control element is constructed to meet IEC 60947-5-1 standards and offers excellent protection ratings with IP66/IP69K degree of protection on the front side and IK05 impact strength rating. The switch features a 22.5mm hole diameter and comes with a chrome plastic front ring for a professional appearance. It is halogen-free and suitable for lighting applications, making it compliant with modern environmental and safety regulations. The Osmoz switch operates reliably across a wide temperature range from -25°C to 70°C, with storage capabilities from -40°C to 70°C. Its wing knob control element and latching/spring-return switching function provide versatile operation for various industrial control scenarios. The product is manufactured by Legrand, a leading global provider of electrical and digital infrastructure solutions.

Key Features

3-position selector switch with spring-return mechanism from right to center at 45°
Illuminated green handle with colourless indicator light cap for clear visual feedback
IP66/IP69K degree of protection with IK05 impact strength rating
Complies with IEC 60947-5-1 international standards for control and signalling units
Halogen-free construction suitable for lighting and industrial applications
Wide operating temperature range from -25°C to 70°C
Wing knob control element with latching and spring-return switching functions
22.5mm hole diameter with chrome plastic front ring for professional appearance
Manufactured by Legrand, a global leader in electrical infrastructure solutions

Technical Specifications

Specification	Value
Product Name	Osmoz Illuminated Standard Handle Select Switch
Reference Number	024055
EAN Code	3245060240554
Number of Positions	3 positions with spring-return
Handle Type	Standard wing knob (green)
Handle Color	Green
Indicator Light Cap Color	Colourless
Lens Construction Type	Round
Hole Diameter	22.5 mm
Switching Function	Latching and spring-return
Spring Return Direction	From right to 0 at 45°
Front Ring	Yes - Chrome plastic
Degree of Protection (IP)	IP66/IP69K
Impact Strength (IK)	IK05
Operating Temperature Range	-25°C to +70°C
Storage Temperature Range	-40°C to +70°C
Halogen Free	Yes
Suitable for Lighting	Yes
Standards Compliance	IEC 60947-5-1
Manufacturer	Legrand

Order Legrand Osmoz Illuminated Standard Handle Select Switch 3 Position Spring Return Green | 24055 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
