Shop Legrand Osmoz Illuminated Selector Switch 2 Position 90° Green | 24042 In Iraq Best Prices
Professional illuminated selector switch with 2 stay-put positions, IP 66/69K rated, green wing knob, ideal for industrial control applications

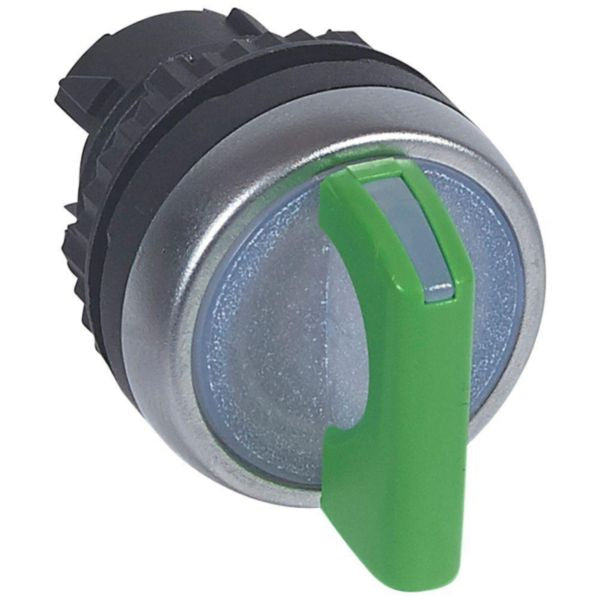

The Osmoz Illuminated Standard Handle Selector Switch is a professional-grade control and signalling unit designed for industrial applications. This selector switch features a green wing knob control element with 2 stay-put positions at 90° angles, providing reliable and intuitive operation. The unit is supplied with a fixing ring and offers IP 66 and IP 69K protection ratings, making it suitable for harsh environments and demanding industrial settings. Conforming to IEC 60947-5-1 standards, this illuminated selector switch combines durability with functionality.
The switch features a round construction type lens with a 22.5 mm hole diameter and includes a colourless indicator light cap for clear visibility. With latching switching function and no spring-return mechanism, the selector maintains its position until manually changed. The plastic front ring with chrome finish provides both aesthetic appeal and practical protection. Operating temperature range spans from -25°C to 70°C, with storage capability from -40°C to 70°C, ensuring reliable performance across various climatic conditions.
This Osmoz selector switch is halogen-free, meeting modern environmental standards and safety regulations. The IK05 degree of impact strength provides excellent protection against mechanical damage. Suitable for lighting applications and various control scenarios, this illuminated selector switch is an essential component for industrial control panels, machinery operation, and building automation systems requiring reliable manual control with visual feedback.
Key Features
- 2 stay-put positions at 90° angles with latching mechanism
- IP 66 and IP 69K protection ratings for harsh environments
- Green illuminated wing knob control element with visual feedback
- Halogen-free construction meeting modern environmental standards
- IK05 impact strength for mechanical damage protection
- Wide operating temperature range -25°C to 70°C
- Conforms to IEC 60947-5-1 international standards
- Chrome-finished plastic front ring for durability
Technical Specifications
| Specification |
Value |
| Product Name | Osmoz Illuminated Standard Handle Selector Switch |
| Reference Number | 024042 |
| EAN Code | 3245060240424 |
| Number of Switch Positions | 2 stay-put positions |
| Position Angle | 90° |
| Control Element Type | Wing knob |
| Control Element Colour | Green |
| Indicator Light Cap Colour | Colourless |
| Lens Construction Type | Round |
| Hole Diameter | 22.5 mm |
| Switching Function | Latching (stay-put) |
| Spring Return | No |
| Suitable for Lighting | Yes |
| Front Ring Included | Yes |
| Front Ring Material | Plastic |
| Front Ring Colour | Chrome |
| IP Rating (Front Side) | IP 66, IP 69K |
| Impact Strength Rating | IK05 |
| Operating Temperature Range | -25°C to 70°C |
| Storage Temperature Range | -40°C to 70°C |
| Halogen Free | Yes |
| International Standard | IEC 60947-5-1 |
| Product Category | Control, Button and Signaling |
| Brand | Legrand - Osmoz |
