Description

Shop Legrand Osmoz Illuminated Block Sub-Assembly NO+NC Green 12-24V | 23005 In Iraq Best Prices

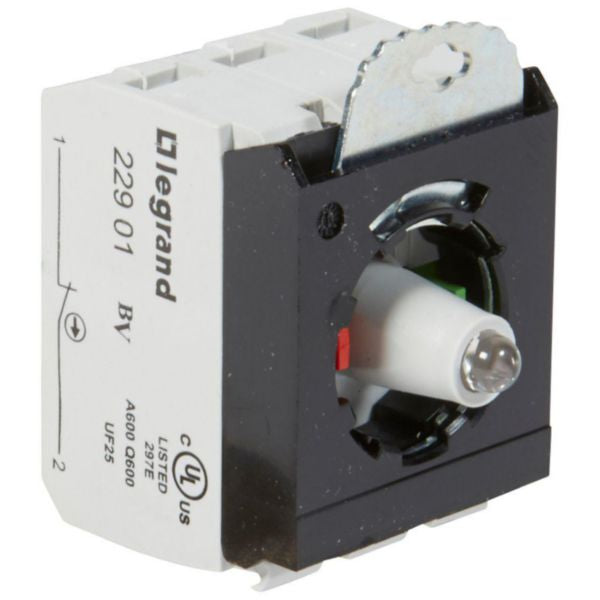

Professional Osmoz illuminated block sub-assembly with integrated green LED, dual NO+NC contacts, and wide voltage compatibility (10.8-26.4V AC/DC) for reliable industrial control and signalling applications.

The Osmoz block sub-assembly is a professional-grade control and signalling unit designed for illuminated head applications. This component features a dual-contact configuration with both NO (Normally Open) and NC (Normally Closed) contacts, making it ideal for complex control scenarios requiring simultaneous switching capabilities. The unit operates reliably across a wide voltage range of 10.8-26.4V in both AC and DC modes, providing exceptional flexibility for various industrial and commercial applications. This illuminated block sub-assembly incorporates an integrated LED light source in striking green color, combined with an integrated voltage-decreasing resistor and diode for enhanced circuit protection and optimal performance. The screw terminal connection type ensures secure and reliable electrical connections, while the front fastening design allows for straightforward installation and maintenance. Conforming to the international standard IEC 60947-5-1, this Osmoz component guarantees compatibility with existing control systems and meets stringent industry safety requirements. The product is engineered with precision clip and screw electrical blocks that have been pre-assembled for immediate use. With its robust construction, integrated protection features, and versatile voltage compatibility, this block sub-assembly represents an excellent choice for professionals seeking dependable control and signalling solutions in demanding industrial environments.

Key Features

Integrated green LED light source for clear visual indication
Dual contact configuration with NO and NC switching capabilities
Wide voltage compatibility from 10.8-26.4V AC/DC
Screw terminal connection for secure electrical connections
Integrated voltage-decreasing resistor and protective diode
Front fastening design for easy installation and maintenance
Conforms to IEC 60947-5-1 international standard
Pre-assembled clip and screw electrical blocks ready for immediate use

Technical Specifications

Specification	Value
Product Type	Illuminated Block Sub-Assembly for Control and Signalling
Contact Configuration	NO+NC (Normally Open + Normally Closed)
Rated Voltage AC 50Hz	10.8-26.4 V
Rated Voltage AC 60Hz	10.8-26.4 V
Rated Voltage DC	10.8-26.4 V
Voltage Type	AC/DC
Light Source Type	LED
Light Source Color	Green
Connection Type	Screw Terminal
Integrated Voltage Resistor	Yes
Integrated Diode	Yes
Transformer Integrated	No
Fastening Type	Front Fastening
Compliance Standard	IEC 60947-5-1
SKU	023005
EAN Code	3245060230050
Brand	Legrand
Product Line	Osmoz

Order Legrand Osmoz Illuminated Block Sub-Assembly NO+NC Green 12-24V | 23005 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
