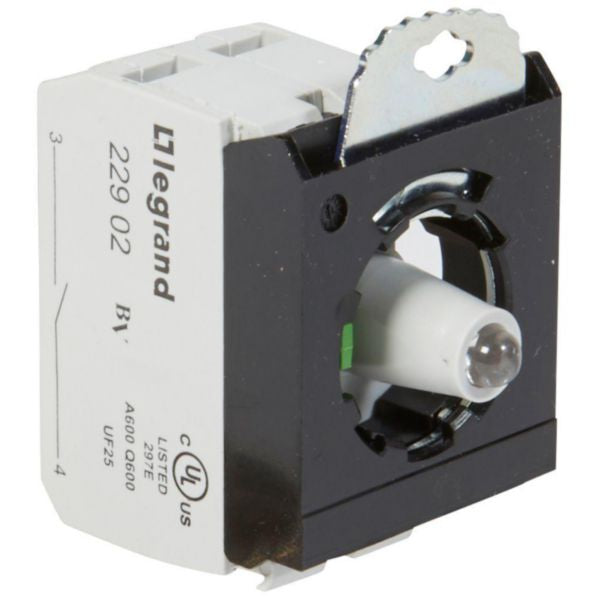

Shop Legrand Osmoz Illuminated Block Sub-Assembly NO Green 12-24V Legrand | 23002 In Iraq Best Prices
Professional Osmoz illuminated block sub-assembly with NO contact, integrated green LED, and 12-24V AC/DC operation. Features screw terminals, 3-position clip fastening, and IEC 60947-5-1 compliance for reliable control and signaling applications.
The Osmoz block sub-assembly is a professional-grade control and signaling component designed for illuminated head applications. This component features a normally open (NO) contact configuration with an integrated LED light source in green color, specifically engineered for AC/DC voltage systems ranging from 12-24V. The unit is equipped with screw terminals and a 3-position clip fastening system, ensuring secure and reliable installation in industrial and commercial control panels.
This sub-assembly conforms to the international standard IEC 60947-5-1, guaranteeing compatibility and safety across global applications. The integrated voltage decreasing resistor and built-in diode provide enhanced circuit protection and stability, making it ideal for demanding industrial environments. The front fastening design allows for quick and easy installation without requiring panel disassembly.
The Osmoz block sub-assembly is part of Legrand's comprehensive control and signaling range, offering exceptional durability and performance. With its compact design and reliable LED light source, this component is perfect for status indication, alarm signaling, and control applications in manufacturing facilities, power distribution systems, and automated control environments.
Key Features
- Integrated green LED light source for reliable status indication
- Normally Open (NO) contact configuration for standard control applications
- Wide voltage range support: 12-24V AC/DC operation
- Built-in voltage decreasing resistor with integrated diode for circuit protection
- Screw terminals with 3-position clip fastening system for secure installation
- Front fastening design for quick and easy panel mounting
- IEC 60947-5-1 compliant for international safety and compatibility standards
- Compact sub-assembly design suitable for industrial control panels
Technical Specifications
| Specification |
Value |
| Product Type | Block Sub-Assembly for Illuminated Head |
| Contact Type | Normally Open (NO) |
| Light Source | Integrated LED |
| Light Color | Green |
| Rated Voltage AC 50Hz | 10.8-26.4V |
| Rated Voltage AC 60Hz | 10.8-26.4V |
| Rated Voltage DC | 10.8-26.4V |
| Voltage Type | AC/DC |
| Connection Type | Screw Terminals |
| Fastening Method | Front Fastening with 3-Position Clip |
| Transformer Integrated | No |
| Integrated Voltage Decreasing Resistor | Yes |
| Integrated Diode | Yes |
| Lamp Holder | None |
| Standard Compliance | IEC 60947-5-1 |
| Reference Number | 023002 |
| EAN Code | 3245060230029 |
| Brand | Legrand |
| Series | Osmoz |
| Application | Industrial Control and Signaling |
Order Legrand Osmoz Illuminated Block Sub-Assembly NO Green 12-24V Legrand | 23002 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
