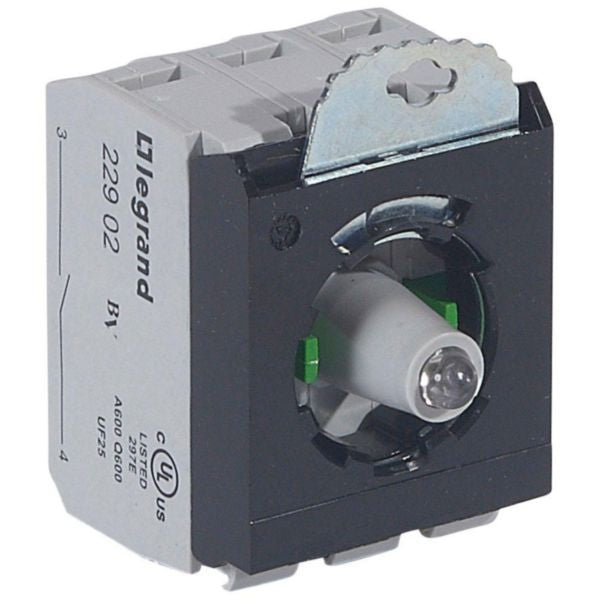

Shop Legrand Osmoz Illuminated Block Sub-Assembly 2NO Green 12-24V | 23008 In Iraq Best Prices
Professional illuminated block sub-assembly with 2 NO contacts, integrated LED light source in green, 12-24V AC/DC operation, IEC 60947-5-1 compliant, ideal for industrial control and signalling applications.
The Legrand Osmoz block sub-assembly is a professional-grade control and signalling component designed for industrial applications requiring illuminated visual feedback. This product features a 2 NO (normally open) contact configuration with integrated LED light source in green color, operating at 12-24V AC/DC. The unit incorporates an integrated voltage decreasing resistor and integrated diode for reliable performance and protection. Compliant with IEC 60947-5-1 standards, this component is engineered for demanding industrial environments where clear visual indication and reliable electrical control are essential.
The illuminated head design provides excellent visibility in various lighting conditions, making it ideal for machine control panels, automation systems, and industrial signalling applications. The screw connection terminals ensure secure and reliable electrical connections, while the front fastening design allows for easy installation and maintenance. With its robust construction and advanced integrated protection features, this Osmoz block sub-assembly delivers consistent performance and long-term reliability in critical control applications.
This component is part of Legrand's comprehensive Osmoz control and signalling range, which offers modular solutions for complex industrial control systems. The product meets all relevant European safety standards and compliance requirements, including RoHS and REACH directives, ensuring safe operation in modern industrial facilities.
Key Features
- 2 NO (Normally Open) contact configuration for reliable switching control
- Integrated LED light source with green color for clear visual indication
- 12-24V AC/DC dual voltage operation for flexible installation
- Integrated voltage decreasing resistor and diode for protection
- IEC 60947-5-1 compliant for industrial control applications
- Screw terminals for secure electrical connections
- Front fastening design for easy installation and maintenance
- RoHS and REACH compliant for environmental safety
- Modular design compatible with Osmoz control systems
- Robust construction for demanding industrial environments
Technical Specifications
| Specification |
Value |
| Product Series | Osmoz Block Sub-Assemblies |
| Manufacturer | Legrand |
| Reference Number | 023008 |
| EAN Code | 3245060230081 |
| Contact Configuration | 2 NO (Normally Open) |
| Rated Voltage AC 50Hz (Min-Max) | 10.8-26.4 V |
| Rated Voltage AC 60Hz (Min-Max) | 10.8-26.4 V |
| Rated Voltage DC (Min-Max) | 10.8-26.4 V |
| Voltage Type for Actuating | AC/DC |
| Light Source Type | LED |
| Light Source Color | Green |
| Transformer Integrated | No |
| Integrated Voltage Decreasing Resistor | Yes |
| Integrated Diode | Yes |
| With Light Source | Yes |
| Lamp Holder | None |
| Connection Type Auxiliary Circuit | Screw Connection |
| Type of Fastening | Front Fastening |
| Terminal Type | Screw Terminals with 3 Position Clip |
| Standards Compliance | IEC 60947-5-1 |
| Environmental Compliance | RoHS Directive, REACH Declaration |
| Application Category | Industrial Control and Signalling |
Order Legrand Osmoz Illuminated Block Sub-Assembly 2NO Green 12-24V | 23008 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
