Shop Legrand Osmoz Illuminated Block Sub-Assembly 2 NO/NC Green 12-24V | 22982 In Iraq Best Prices
Professional Legrand Osmoz illuminated block sub-assembly with 2 NO/NC contacts, green LED indicator, integrated voltage regulator, and 12-24V AC/DC operation for industrial control and signalling applications.

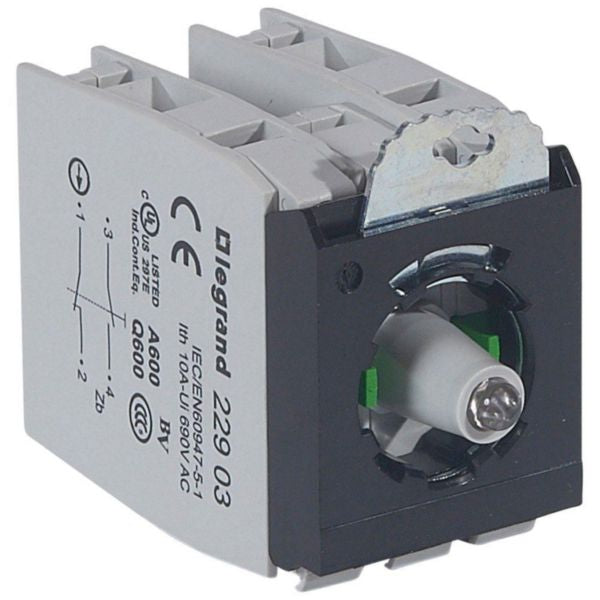

The Legrand Osmoz block sub-assembly is a professional-grade control and signalling unit designed for illuminated head applications. This component is specifically engineered to meet IEC 60947-5-1 standards and features a 2 NO/NC (2 changeover) contact configuration with integrated LED light source in green color. The unit operates at rated voltages between 10.8-26.4V for both AC and DC applications, making it versatile for various industrial and commercial control systems.
This block sub-assembly incorporates advanced features including an integrated voltage-decreasing resistor, integrated diode protection, and screw connection terminals for secure and reliable electrical connections. The front fastening design ensures easy installation and maintenance in control panels and switchboards. With its 3-position clip mechanism and green LED illumination, this component provides clear visual indication of operational status while maintaining compliance with international electrical standards.
The Osmoz sub-assembly is ideal for applications requiring reliable control signalling, emergency stop functions, status indication, and operator feedback in industrial automation, building management systems, and electrical distribution panels. Its robust construction and integrated protection features ensure long-term reliability and safety in demanding operational environments.
Key Features
- 2 NO/NC (2 changeover) contact configuration for versatile control applications
- Integrated green LED light source with built-in voltage-decreasing resistor for reliable illumination
- Integrated diode protection for enhanced electrical safety and component longevity
- Dual voltage AC/DC operation (10.8-26.4V) compatible with various power systems
- Screw terminal connections with 3-position clip mechanism for secure installation
- Front fastening design for easy integration into control panels and switchboards
- IEC 60947-5-1 compliant for international electrical standards compliance
Technical Specifications
| Specification |
Value |
| Product Type | Control and Signalling Block Sub-Assembly |
| Brand | Legrand - Osmoz |
| Reference Number | 022982 |
| EAN Code | 3245060229825 |
| Contact Configuration | 2 NO/NC (2 changeover contacts) |
| Rated Voltage AC 50Hz | 10.8-26.4 V |
| Rated Voltage AC 60Hz | 10.8-26.4 V |
| Rated Voltage DC | 10.8-26.4 V |
| Voltage Type | AC/DC |
| Light Source Type | LED |
| Light Source Colour | Green |
| Transformer Integrated | No |
| Integrated Voltage Decreasing Resistor | Yes |
| Integrated Diode | Yes |
| Connection Type | Screw terminals with 3-position clip |
| Fastening Type | Front fastening |
| Lamp Holder | None |
| International Standard | IEC 60947-5-1 |
| Application | Illuminated head assemblies for industrial control and signalling |
| Compliance | RoHS Directive, REACH Declaration |
