Shop Legrand Osmoz Green LED Pilot Light 24V AC/DC Industrial | 24602 In Iraq Best Prices
Professional green LED pilot light with integrated design, IP66/IP69K protection, 24V AC/DC operation, 100,000-hour lifespan, and IEC 60947-5-1 compliance for industrial control and signaling applications.

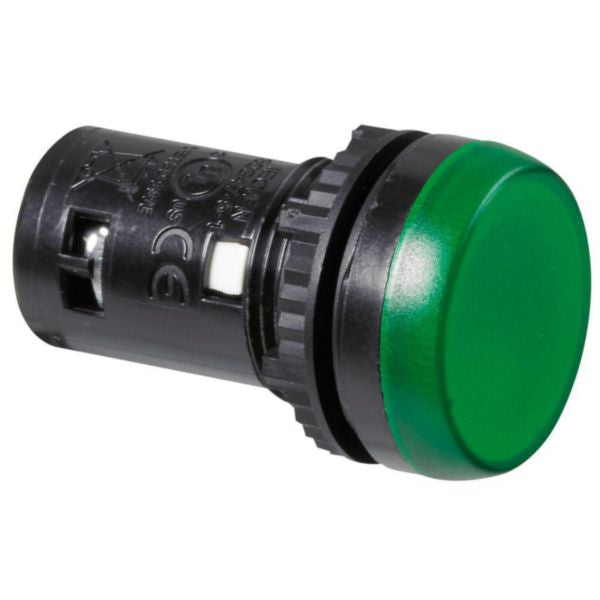

The Osmoz one-piece pilot light is a professional-grade industrial signaling device featuring integrated LED technology for 24V AC/DC operation. This robust control and signaling auxiliary is specifically designed for demanding industrial environments where reliable visual indication is critical. The green LED lens provides clear, energy-efficient illumination with an impressive 100,000-hour lifetime, ensuring minimal maintenance and long-term reliability in harsh conditions.
Built to the highest standards of industrial durability, this pilot light offers IP66 and IP69K protection ratings, making it suitable for wet, dusty, and high-pressure washdown environments. The 22mm mounting hole diameter allows for easy integration into existing control panels and equipment. Engineered to conform to IEC 60947-5-1 international standards, this device delivers consistent performance across a wide operating temperature range from -25°C to 70°C, making it ideal for both indoor and outdoor industrial applications.
The one-piece construction eliminates the need for separate electrical blocks, simplifying installation and reducing component count. With its screw connection type and rated operating voltage range of 10.8-26.4V, this pilot light offers flexibility in system integration. The flat, round lens design with plastic front ring in black provides a professional appearance while maintaining optimal visibility for critical status indication in control rooms, manufacturing facilities, and industrial automation systems.
Key Features
- Integrated LED light source with 100,000-hour estimated lifetime for extended service intervals
- IP66 and IP69K protection ratings for operation in wet, dusty, and high-pressure washdown environments
- One-piece construction eliminates need for separate electrical blocks and simplifies installation
- IEC 60947-5-1 compliant design ensures international industrial standards compliance
- Wide operating temperature range -25°C to 70°C supports indoor and outdoor industrial applications
- Screw connection type provides secure and reliable electrical integration
- 22mm mounting hole diameter enables easy integration into existing control panels
- Green lens color provides clear visual indication for status monitoring
- Rated operating voltage 10.8-26.4V AC/DC offers flexible system integration
- IK05 impact resistance rating protects against mechanical damage in industrial environments
Technical Specifications
| Specification |
Value |
| Product Name | Osmoz One-Piece Pilot Light with Integrated LED |
| Reference Number | 024602 |
| EAN Code | 3414970863645 |
| Lamp Type | Integrated LED |
| Lens Color | Green |
| Number of Indicator Lights | 1 |
| Rated Operating Voltage | 10.8-26.4 V AC/DC |
| Voltage Type | AC/DC |
| Electrical Connection Type | Screw Connection |
| Mounting Hole Diameter | 22 mm |
| Lens Construction Type | Round Flat |
| Front Ring Material | Plastic |
| Front Ring Color | Black |
| IP Protection Rating | IP66, IP69K |
| Impact Strength Rating | IK05 |
| Operating Temperature Range | -25°C to 70°C |
| Storage Temperature Range | -40°C to 70°C |
| Estimated Bulb Life | 100,000 hours |
| Standards Compliance | IEC 60947-5-1 |
| Construction Type | One-Piece (Without Electrical Block) |
| Light Source Included | Yes |
| Product Category | Control and Signaling Auxiliary |
