Shop Legrand Osmoz Electrical Block Illuminated Head Blue 48V AC/DC | 22923 In Iraq Best Prices
Professional Osmoz electrical block with blue LED illumination for industrial control systems, 48V AC/DC rated voltage, IP 20 protection, screw terminals, and integrated voltage decreasing resistor.

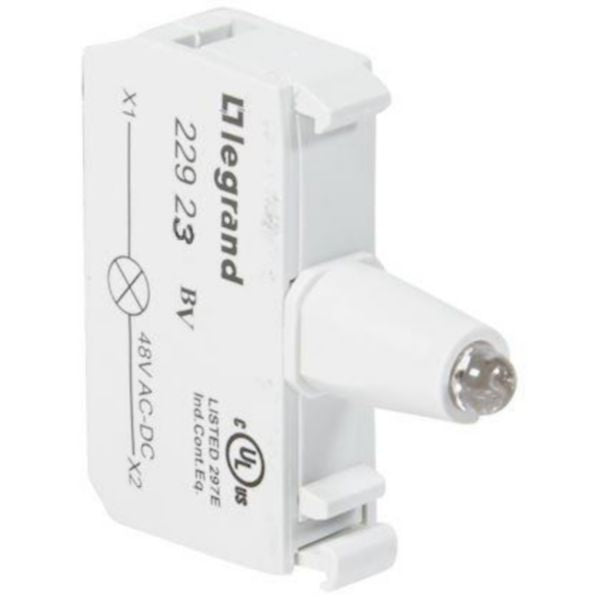

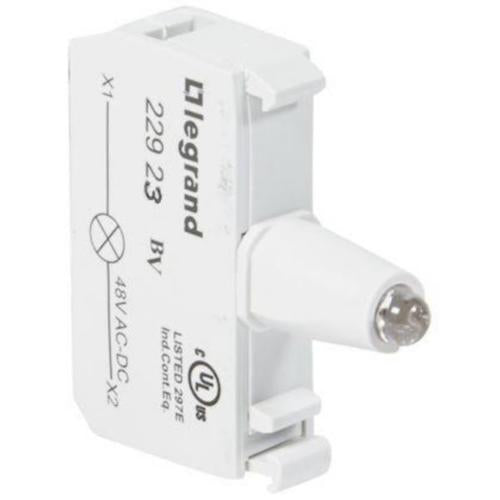

The Osmoz electrical block is a professional-grade control and signalling unit designed for illuminated head applications. This component is engineered to meet IEC 60947-5-1 standards and provides reliable performance in industrial control systems. The unit features an integrated voltage decreasing resistor with a blue LED light source, making it ideal for visual indication applications in control panels and signalling systems. With its screw terminal connection type and front fastening mechanism, this electrical block ensures secure and straightforward installation in various industrial environments.
This Osmoz electrical block operates at a rated voltage of 48V AC/DC (with a range of 43.2-52.8V), making it compatible with both alternating and direct current systems. The integrated LED light source provides consistent blue illumination for clear visual feedback, while the built-in diode protection ensures reliable operation and extended component lifespan. The product is manufactured by Legrand, a trusted global leader in electrical infrastructure solutions, and comes with comprehensive technical documentation including RoHS compliance certificates and environmental profiles.
The electrical block is specifically designed for use with Osmoz illuminated heads and features IP 20 protection rating, suitable for indoor industrial applications. Its compact design and standardized interface make it compatible with existing Osmoz control and signalling systems, allowing for seamless integration into control panels and automation systems. The screw connection terminals provide secure wire attachment, while the front fastening design simplifies maintenance and replacement procedures.
Key Features
- Integrated voltage decreasing resistor for safe operation
- Blue LED light source for clear visual indication
- Built-in diode protection for extended component lifespan
- Screw terminal connection for secure wire attachment
- Front fastening design for easy installation and maintenance
- Compliant with IEC 60947-5-1 industrial standards
- IP 20 protection rating suitable for indoor applications
- Compatible with Osmoz illuminated head systems
Technical Specifications
| Specification |
Value |
| Product Type | Electrical Block for Control and Signalling |
| Brand | Legrand |
| Series | Osmoz |
| Reference Number | 022923 |
| EAN Code | 3245060229238 |
| Rated Voltage AC 50Hz | 43.2-52.8 V |
| Rated Voltage AC 60Hz | 43.2-52.8 V |
| Rated Voltage DC | 43.2-52.8 V |
| Voltage Type | AC/DC |
| Nominal Voltage | 48 V |
| Light Source Type | LED |
| Light Color | Blue |
| Transformer Integrated | No |
| Integrated Voltage Decreasing Resistor | Yes |
| Integrated Diode | Yes |
| Connection Type | Screw Terminal |
| Fastening Type | Front Fastening |
| Protection Rating | IP 20 |
| Compliance Standard | IEC 60947-5-1 |
| Application | For Illuminated Heads |
| Lamp Holder | None |
| RoHS Compliant | Yes |
