Shop Legrand Osmoz Control Station IP66 IK07 4 Holes Grey | 24204 In Iraq Best Prices
Robust IP67 surface-mounted control station with 4 command positions, IK07 impact resistance, and modular design for flexible control and signaling applications.

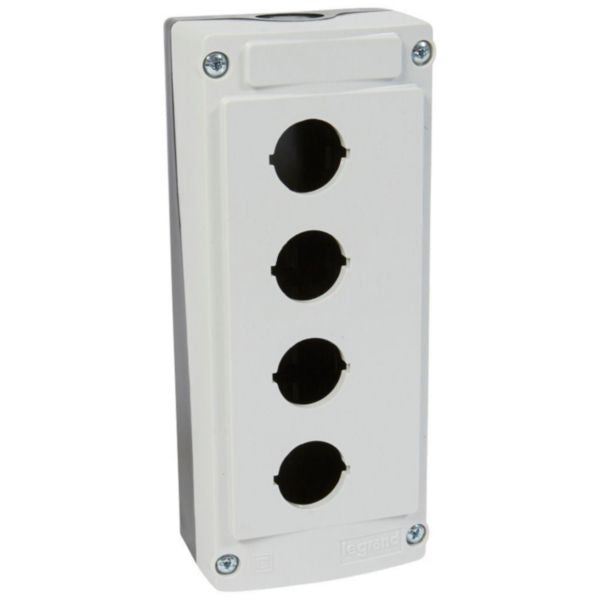

The Osmoz control station is a robust surface-mounted enclosure designed for control and signaling applications. This high-quality housing offers superior protection with IP67 and NEMA 4X ratings, ensuring reliable performance in demanding environments. The unit features IK07 impact resistance, making it ideal for industrial and commercial installations where durability is essential. With 4 command positions of 22.5mm diameter, this control station can accommodate up to 3 electrical blocks per hole, providing flexible configuration options for various control and signaling requirements.
Manufactured by Legrand, a leading global provider of electrical and digital building infrastructure solutions, the Osmoz control station combines quality construction with practical functionality. The grey plastic housing is halogen-free, meeting modern environmental and safety standards. This surface-mounted design allows for easy installation on walls or other vertical surfaces. The control station comes unequipped, allowing you to customize it with illuminated or non-illuminated heads and specific control blocks according to your exact application needs.
The Osmoz control station is engineered to deliver exceptional reliability and performance in control and signaling applications. Its robust construction, combined with comprehensive protection ratings, makes it suitable for use in harsh industrial environments, commercial facilities, and specialized applications where signal control and operator feedback are critical. The flexible modular design ensures compatibility with a wide range of control components, making it an excellent choice for system integrators and electrical professionals.
Key Features
- IP67 and NEMA 4X protection rating for harsh environments
- IK07 impact resistance for durability and reliability
- 4 command positions with 22.5mm diameter openings
- Accepts up to 3 electrical blocks per hole for modular configuration
- Surface-mounted design for easy wall installation
- Halogen-free grey plastic housing for safety and environmental compliance
- Unequipped design allows customization with illuminated or non-illuminated heads
- Compatible with specific control blocks for various applications
Technical Specifications
| Specification |
Value |
| Product Reference | 024204 |
| EAN Code | 3245060242046 |
| Brand | Legrand |
| Series | Osmoz |
| Number of Command Positions | 4 |
| Diameter of Openings | 22.5 mm |
| Maximum Electrical Blocks per Hole | 3 |
| Housing Type | Surface mounted |
| Housing Material | Plastic |
| Housing Color | Grey |
| Degree of Protection (IP) | IP67 |
| Degree of Protection (NEMA) | 4X |
| Impact Strength (IK) | IK07 |
| Width | 74 mm |
| Height | 173 mm |
| Depth | 47.9 mm |
| Halogen Free | Yes |
| Application Type | Control and signaling |
| Configuration | Unequipped, to be customized |
| Mounting Method | Surface mounting |
Order Legrand Osmoz Control Station IP66 IK07 4 Holes Grey | 24204 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
