Shop Legrand Osmoz Control Station IP66 IK07 2 Holes Grey Legrand | 24202 In Iraq Best Prices
Professional-grade Osmoz control station with IP67/NEMA 4X protection, IK07 impact resistance, 2 command positions, and flexible configuration for industrial applications

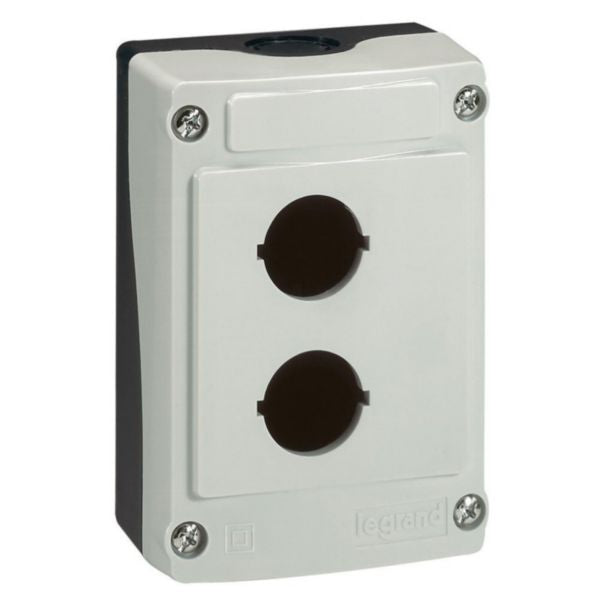

The Osmoz control station is a robust surface-mounted housing designed for control and signaling applications. This empty control station offers IP67 and NEMA 4X protection with IK07 impact resistance, making it suitable for demanding industrial and commercial environments. The enclosure features 2 command positions with 22.5mm openings and allows mounting up to 3 electrical blocks per hole, providing flexible configuration options for various control applications.
Constructed from high-quality plastic housing material, the Osmoz control station is halogen-free and complies with safety standards. The grey color housing provides professional appearance while maintaining durability. The unit is designed to be equipped with illuminated or non-illuminated heads and specific control station blocks, allowing customization based on application requirements. With dimensions of 74mm width, 107mm height, and 47.9mm depth, it offers compact yet functional design suitable for panel mounting.
The Osmoz series is engineered for reliability and ease of installation in industrial control panels, machinery control stations, and building automation systems. Its superior protection ratings ensure long-term performance in harsh conditions, making it an ideal choice for manufacturers and system integrators requiring professional-grade control station solutions.
Key Features
- IP67 and NEMA 4X protection rating for harsh environments
- IK07 impact resistance for durability and reliability
- 2 command positions with 22.5mm diameter openings
- Accommodates up to 3 electrical blocks per hole for flexible configuration
- Halogen-free plastic construction for safety compliance
- Surface-mounted housing design for easy panel installation
- Compatible with illuminated and non-illuminated control heads
- Professional grey color finish for industrial applications
Technical Specifications
| Specification |
Value |
| Product Reference | 024202 |
| EAN Code | 3245060242022 |
| Brand | Legrand |
| Series | Osmoz |
| Number of Command Positions | 2 |
| Diameter of Openings | 22.5 mm |
| Maximum Electrical Blocks per Hole | 3 |
| Housing Material | Plastic |
| Housing Type | Surface-mounted |
| Housing Color | Grey |
| IP Protection Rating | IP67 |
| NEMA Protection Rating | 4X |
| Impact Resistance (IK) | IK07 |
| Width | 74 mm |
| Height | 107 mm |
| Depth | 47.9 mm |
| Halogen Free | Yes |
| Application | Control and signaling auxiliary enclosure |
| Configuration | Empty control station to be equipped |
Order Legrand Osmoz Control Station IP66 IK07 2 Holes Grey Legrand | 24202 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
