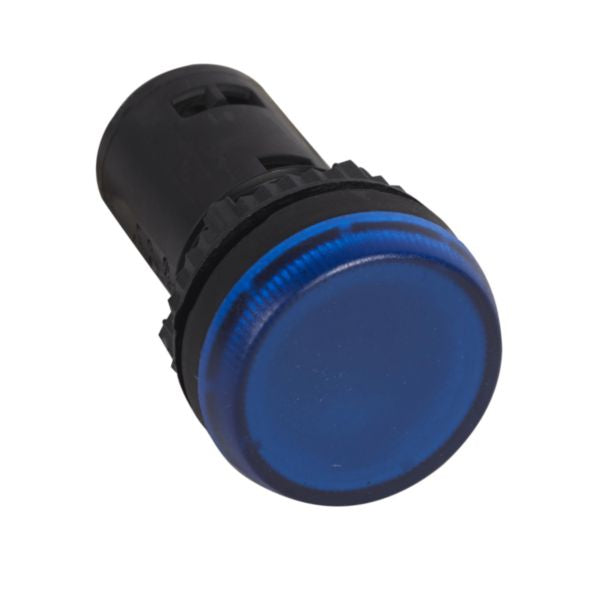

Osmoz integrated LED pilot light 130V~ blue with IP66/IP69K protection, 100,000h lifespan, 22mm screw-connection mounting, no electrical block required
The Osmoz one-piece pilot light is a premium control and signaling auxiliary device designed for industrial and commercial applications. This 130V~ blue pilot light features an integrated LED light source, eliminating the need for an additional electrical block. With its robust construction and advanced engineering, this pilot light provides reliable visual indication for control panels, machinery, and electrical systems.
The device offers exceptional protection with IP66 and IP69K ratings, making it suitable for harsh environments including washdown areas and outdoor installations. The integrated LED technology ensures a long operational lifespan of 100,000 hours, significantly reducing maintenance costs and replacement frequency. The 22mm screw-connection mounting system provides secure installation and easy integration into existing panel layouts.
This Osmoz pilot light conforms to IEC 60947-5-1 international standards and features a round flat lens design with a black plastic front ring. The device operates reliably across a wide temperature range from -25°C to 70°C, making it suitable for diverse climate conditions. The blue color lens provides clear visual distinction in control panels, while the IK05 impact strength rating ensures durability in demanding industrial environments.
Key Features
- Integrated LED light source eliminates need for external electrical block
- IP66 and IP69K protection ratings for harsh and washdown environments
- Exceptional 100,000 hour operational lifespan reducing maintenance costs
- 22mm screw-connection mounting system for secure panel installation
- IEC 60947-5-1 international standards compliance for industrial applications
- Wide operating temperature range -25°C to 70°C for diverse climates
- IK05 impact strength rating ensures durability in demanding conditions
- Blue color lens provides clear visual distinction in control panels
- One-piece design for simplified installation and reduced assembly time
- Flat round lens construction with black plastic front ring
Technical Specifications
| Specification |
Value |
| Product Type | One-piece pilot light with integrated LED |
| Voltage Rating | 130V~ AC (119.6-149.5V range) |
| Light Source | Integrated LED |
| Lens Color | Blue |
| Lens Construction | Round flat |
| Connection Type | Screw connection 22mm |
| IP Rating | IP66, IP69K |
| IK Rating | IK05 |
| Hole Diameter | 22mm |
| Front Ring Material | Plastic |
| Front Ring Color | Black |
| Operating Temperature | -25°C to 70°C |
| Storage Temperature | -40°C to 70°C |
| Estimated Bulb Life | 100,000 hours |
| Number of Indicator Lights | 1 |
| Standards Compliance | IEC 60947-5-1 |
| Electrical Block Required | No |
| Reference Number | 024608 |
| EAN Code | 3414970863829 |
| Manufacturer | Legrand |
