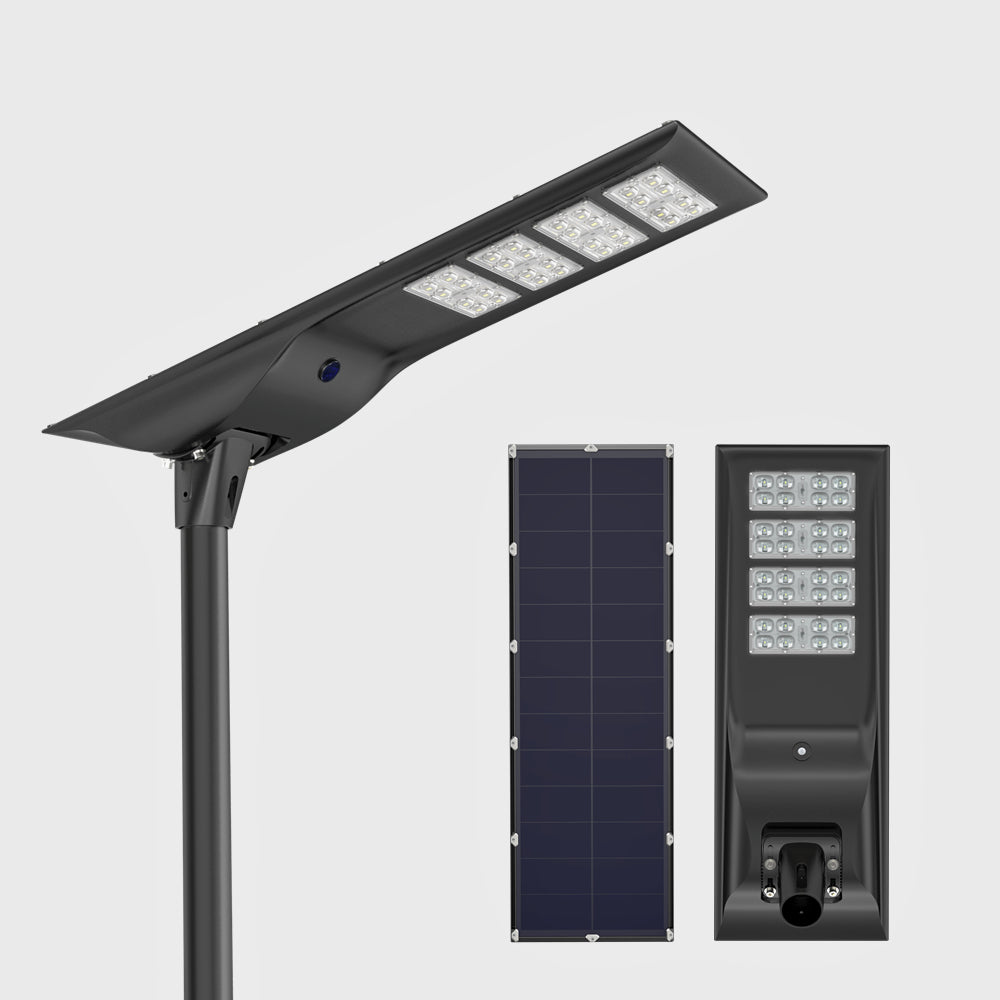

The LED Solar Street Light-A Series from Onor Lighting is an all-in-one solar lighting solution designed for roads, streets, parks, residential areas, and off-grid outdoor projects where reliable illumination and energy efficiency are required.
This series is available in 40W, 60W, and 80W models, delivering an impressive luminous efficacy of up to 180 lm/W. It integrates a high-efficiency monocrystalline solar panel, a long-life LiFePO4 battery, and advanced LED technology into one compact unit.
The luminaire features a wide beam angle of 80° × 155°, ensuring broad and uniform lighting coverage. With multiple intelligent control modes, including time control, microwave induction, and infrared induction, the system automatically adapts to environmental conditions for maximum energy savings.
Built with a robust housing and rated IP66, the Solar Street Light-A offers excellent resistance against dust, rain, and harsh weather. It supports remote control operation up to 15 meters, adjustable installation angles, and flexible mounting heights, making it suitable for a wide range of outdoor applications.
Key Features:
• Power options: 40W / 60W / 80W
• Ultra-high luminous efficiency up to 180 lm/W
• All-in-one integrated solar street light design
• High-efficiency monocrystalline solar panel
• Built-in LiFePO4 battery with long cycle life
• Wide beam angle: 80° × 155°
• Multiple control modes: time control, microwave induction, infrared induction
• Remote control distance up to 15 meters
• Adjustable lamp angle up to 30°
• IP66 waterproof and dustproof
• Ideal for off-grid and energy-saving projects
Technical Specifications Table:
| Parameter |
40W-A |
60W-A |
80W-A |
| Solar Panel |
18V 37W |
18V 44W |
18V 57W |
| Battery Capacity |
12.8V 12Ah |
12.8V 18Ah |
12.8V 24Ah |
| Luminous Efficacy |
180 lm/W |
|
|
| CCT |
2700–6500K |
|
|
| Beam Angle |
80° × 155° |
|
|
| Charging Time |
6–8 hours (bright sunlight) |
|
|
| Working Time |
12–15 hours (5–7 rainy days) |
|
|
| Control Mode |
Time control + Microwave induction + Infrared induction |
|
|
| Protection Rating |
IP66 |
|
|
| Mounting Height |
4–6 m |
5–7 m |
6–8 m |
| Installation Distance |
10–20 m |
15–25 m |
20–30 m |
| Mounting Hole |
Ø78 mm |
|
|
| Warranty |
3 years |
|
|
| Product Size (mm) |
697×361×209 |
846×361×209 |
1096×361×209 |
| Net Weight (kg) |
7.7 |
9.5 |
11.7 |
Application Areas:
• Main roads and highways
• Urban streets and bridges
• Parks and pedestrian walkways
• Residential areas
• Schools and campuses
• Industrial zones
• Off-grid and remote locations
