Description

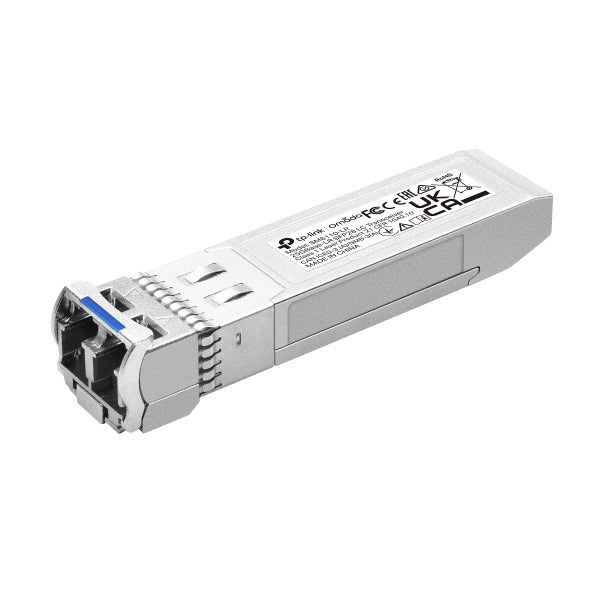

High-performance 25GBase-LR SFP28 transceiver for extended Ethernet connectivity.
The SM6110-LR is a high-performance transceiver designed to extend transfer distances based on 10G/25G Ethernet connectivity. This 1310 nm single-mode SFP+/SFP28 module supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables. Ideal for enterprise networking, it ensures compatibility with a wide range of networking equipment to deliver seamless integration and optimum performance. With its hot-pluggable feature, the SM6110-LR offers maximum flexibility for network upgrades and scalability, ensuring your network infrastructure is future-proof. Additionally, it supports Digital Diagnostic Monitoring (DDM), which provides critical information on the transceiver's performance, helping to maintain network reliability.

Key Features

  • Single-mode SFP+/SFP28 LC Transceiver
  • Hot-Pluggable with maximum flexibility
  • Supports Digital Diagnostic Monitoring (DDM)
  • Low Power Consumption no more than 1.2 W
  • Compatible with switches with 25G ports like SX6632YF and 10G ports like SG3428X and SG3452X

Technical Specifications

Specification Value
Standards and ProtocolsIEEE 802.3ae, 802.3cc, SFF-8402, SFF-8431, SFF-8432, SFF-8472, eCPRI, CPRI, TCP/IP
Wavelength1310 nm
Power Supply3.3V
Fiber Type9/125um Single-Mode
Maximum Transfer Distance10 km
Product form

Omada 25GBase-LR SFP28 LC Transceiver

SKU: SM6110-LR

76,750 IQD

        Description

        High-performance 25GBase-LR SFP28 transceiver for extended Ethernet connectivity.
        The SM6110-LR is a high-performance transceiver designed to extend transfer distances based on 10G/25G Ethernet connectivity. This 1310 nm single-mode SFP+/SFP28 module supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables. Ideal for enterprise networking, it ensures compatibility with a wide range of networking equipment to deliver seamless integration and optimum performance. With its hot-pluggable feature, the SM6110-LR offers maximum flexibility for network upgrades and scalability, ensuring your network infrastructure is future-proof. Additionally, it supports Digital Diagnostic Monitoring (DDM), which provides critical information on the transceiver's performance, helping to maintain network reliability.

        Key Features

        • Single-mode SFP+/SFP28 LC Transceiver
        • Hot-Pluggable with maximum flexibility
        • Supports Digital Diagnostic Monitoring (DDM)
        • Low Power Consumption no more than 1.2 W
        • Compatible with switches with 25G ports like SX6632YF and 10G ports like SG3428X and SG3452X

        Technical Specifications

        Specification Value
        Standards and ProtocolsIEEE 802.3ae, 802.3cc, SFF-8402, SFF-8431, SFF-8432, SFF-8472, eCPRI, CPRI, TCP/IP
        Wavelength1310 nm
        Power Supply3.3V
        Fiber Type9/125um Single-Mode
        Maximum Transfer Distance10 km
