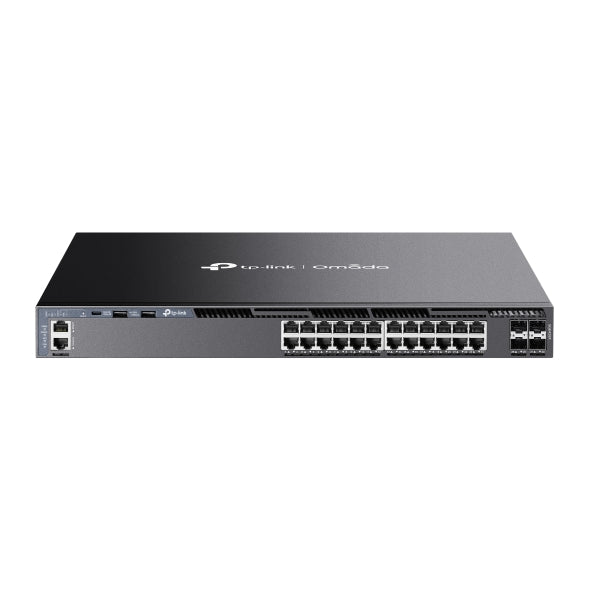

Omada SG6428X is a stackable L3 managed switch with 24 Gigabit ports and 4 10G slots, offering high-speed connectivity and advanced security features.
The Omada SG6428X is a high-performance L3 managed switch designed for the convergence layer. It features 24 Gigabit RJ45 ports and 4 10 Gbps SFP+ slots, providing a remarkable switching capacity of up to 128 Gbps per unit. With its physical stacking capabilities, this switch allows for built-in redundancy and high performance, supporting up to 4 units with a total switching capacity of 512 Gbps. Its abundant Layer 3 routing protocols, including Static Routing, RIP, OSPF, ECMP, VRRP, and multicast routing with PIM-DM, ensure efficient and scalable network operations. Enhanced security features such as ACL, Dynamic ARP Inspection, IEEE 802.1X, and Port Security protect against a range of network threats. The SG6428X integrates seamlessly with the Omada SDN platform, offering centralized cloud management, Zero-Touch Provisioning, and advanced management features. This makes it an ideal networking solution for SMBs, enterprises, and ISPs.
Key Features
- 24_ Gigabit RJ45 ports and 4_ 10 Gbps SFP+ slots
- 128 Gbps switching capacity per unit
- Physical stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Enhanced security with ACL, Port Security, DoS Defend, 802.1X
Technical Specifications
| Specification |
Value |
| Switching Capacity | 128 Gbps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 3 MB |
| Jumbo Frame | 9 KB |
| Quality of Service | Class of Service, Port Priority, IEEE 802.1p Priority |
