Professional TV, Radio, and SAT socket with LTE protection, low attenuation loss, and modern dark silver design for complete multimedia connectivity.

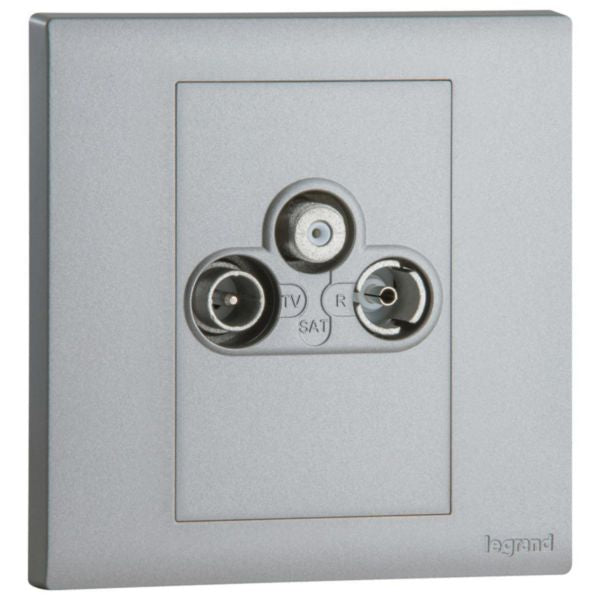

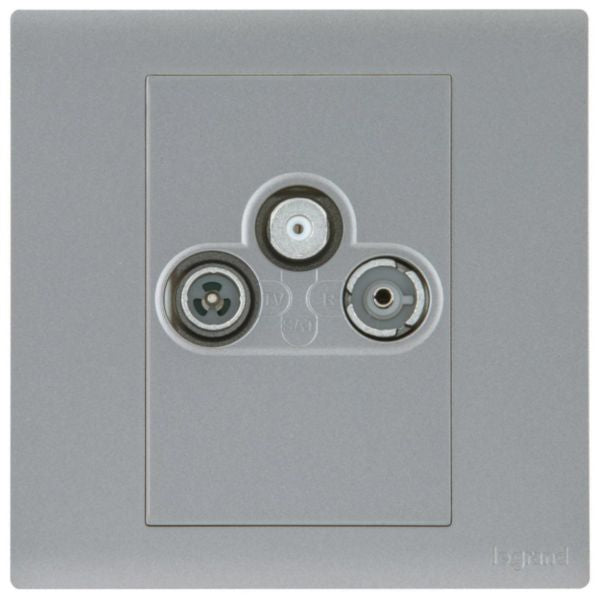

The Obria TV + R + SAT socket is a professional-grade multimedia outlet designed to connect all types of televisions, including DVB-T, SAT, and CATV systems. This comprehensive solution features a modern full plate design with dark silver finish that seamlessly integrates into contemporary interior decor. The socket combines three essential connections in one flush-mounted unit: TV 9.5mm Male connector, Radio 9.5mm Female connector, and SAT Type F screw connector, providing complete entertainment system connectivity.
This socket delivers exceptional performance with LTE protection class A level and minimal attenuation loss of less than 1.5 dB, ensuring crystal-clear signal transmission across all frequency bands. The device is fully protected against electromagnetic compatibility perturbances including 3G, 4G, and 5G interference, preventing image pixelation and audio disruptions. With a limited cable bend radius design, the socket achieves optimal performance while maintaining reliable connections. The unit conforms to international standards EN-50083-4 and EN-50083-2, guaranteeing compatibility and reliability.
The Obria TV + R + SAT socket is engineered for residential applications and recommended for indoor use only. Its thermoplastic construction with lacquered matt finish provides durability and aesthetic appeal. The flush-mounted installation method with screw fastening ensures secure and permanent placement. With an IP20 protection degree and IK04 impact strength rating, this socket offers reliable protection against dust and minor physical impacts, making it ideal for modern homes and small commercial installations.
Key Features
- Triple connectivity with TV, Radio, and SAT connections in single unit
- LTE protected class A level with attenuation loss less than 1.5 dB
- Complete EMC protection against 3G, 4G, and 5G interference
- Modern full plate design with dark silver lacquered finish
- Secure screw connection with limited cable bend radius
- Conforms to EN-50083-4 and EN-50083-2 international standards
- Flush-mounted installation with thermoplastic construction
- IP20 protection degree and IK04 impact strength rating
Technical Specifications
| Specification |
Value |
| Model | End socket |
| Type of Socket Outlet | TV/RD/SAT |
| Mounting Method | Flush-mounted |
| Number of Modules | 2 |
| Assembly Arrangement | Basic element with central cover plate |
| Tap Loss at 860 MHz | 1.5 dB |
| Radio Frequency Band | 87.5-108 MHz |
| SAT Frequency Band | 950-2400 MHz |
| Type of Fastening | Mounting with screw |
| Colour | Dark Silver |
| Surface Protection | Lacquered |
| Surface Finishing | Matt |
| Material | Thermoplastic |
| Halogen Free | No |
| Degree of Protection (IP) | IP20 |
| Impact Strength (IK) | IK04 |
| Device Width | 86 mm |
| Device Height | 87.4 mm |
| Device Depth | 39.6 mm |
| Built-in Installation Box Depth | 35 mm minimum |
| Built-in Depth | 27.3 mm |
| Operating Temperature Range | -5 to 35°C |
| Storage Temperature Range | -10 to 70°C |
| Connectors | TV 9.5mm Male, Radio 9.5mm Female, SAT Type F Screw |
| EMC Protection | LTE Class A Level |
