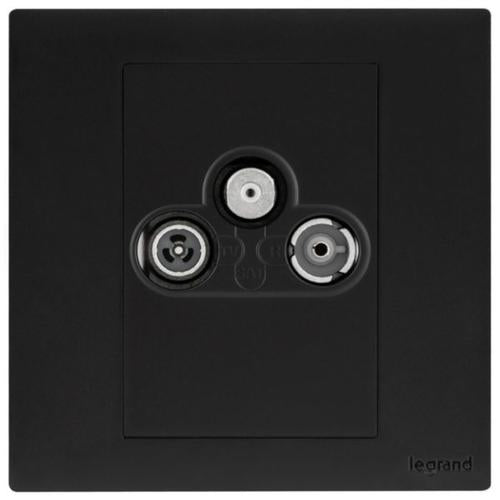

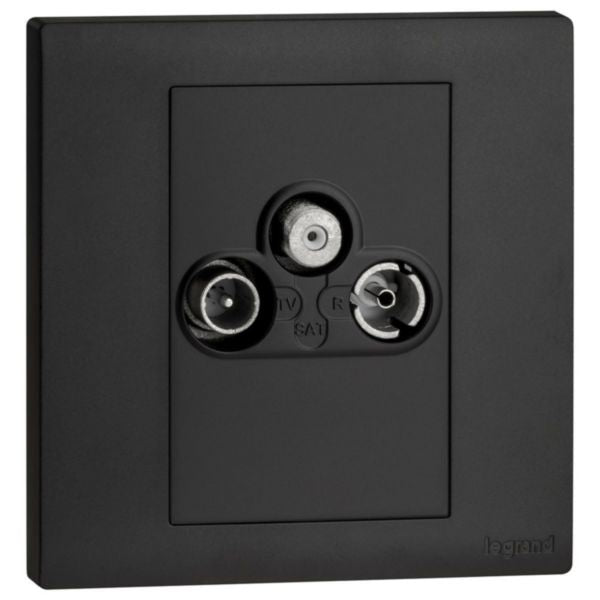

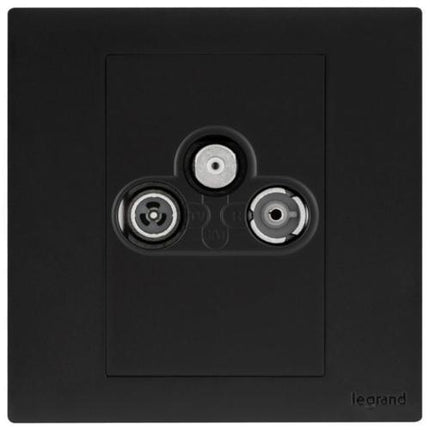

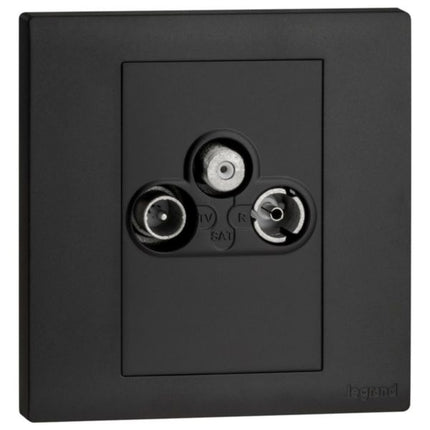

Shop Legrand Obria TV R SAT Matt Black Socket Outlet Module | MEC41067BL In Iraq Best Prices
Premium dual-module multimedia socket outlet for TV, radio, and satellite connections with advanced EMC protection and Matt Black finish
The Obria TV + R + SAT is a premium multimedia socket outlet designed for comprehensive home entertainment connectivity. This end socket allows seamless connection of all types of televisions, including DVBT, SAT, and CATV systems, making it an ideal solution for modern residential installations. The socket features a sophisticated Matt Black finish that complements contemporary interior design while maintaining functional excellence.
This dual-module socket outlet incorporates advanced EMC protection technology to shield against electromagnetic interference from 3G, 4G, and 5G networks, preventing image pixelation and signal degradation. The TV connector features a 9.5mm male connection, while the radio outlet utilizes a 9.5mm female connection, and the SAT connector uses a Type F screw connector for secure and reliable connections. With LTE protection class A level and attenuation loss below 1.5 dB, this socket ensures optimal signal transmission and minimal signal loss.
The product is fully compliant with EN-50083-4 and EN-50083-2 standards, guaranteeing reliability and safety for residential use. The modern full plate design provides perfect aesthetic integration into any room, while the secured screw connections ensure stable and durable installations. Operating temperature range from -5°C to 35°C makes it suitable for various climate conditions, and the IP20 protection rating combined with IK04 impact resistance ensures durability in typical home environments.
Key Features
- Supports all television types including DVBT, SAT, and CATV systems
- Advanced EMC protection against 3G, 4G, and 5G interference to prevent image pixelation
- Low attenuation socket with less than 1.5 dB signal loss for optimal transmission
- Modern full plate design with Matt Black finish for perfect interior integration
- Dual-module configuration with secure screw connections for reliable installation
Technical Specifications
| Specification |
Value |
| Product Reference | MEC41067BL |
| EAN Code | 3414972675147 |
| Socket Type | TV/Radio/SAT End Socket |
| Connector Types | TV 9.5mm Male, Radio 9.5mm Female, SAT Type F Screw |
| Number of Modules | 2 modules |
| Mounting Method | Flush-mounted |
| Attenuation Loss at 860 MHz | 1.5 dB |
| Radio Frequency Band | 87.5-108 MHz |
| SAT Frequency Band | 950-2400 MHz |
| LTE Protection | Class A level with attenuation loss < 1.5 dB |
| Color | Matt Black |
| Material | Thermoplastic |
| Device Dimensions | Width 86mm x Height 87.4mm x Depth 39.6mm |
| Built-in Depth | 27.3mm |
| Minimum Installation Box Depth | 35mm |
| IP Rating | IP20 |
| Impact Resistance (IK) | IK04 |
| Operating Temperature Range | -5°C to +35°C |
| Storage Temperature Range | -10°C to +70°C |
| Standards Compliance | EN-50083-4 & EN-50083-2 |
| Installation Type | Residential indoor use only |
| Halogen Free | No |
| Antimicrobial Treatment | No |
