Shop Legrand Obria TV R SAT Champagne Socket Outlet Triple Connection | MEC41067CH In Iraq Best Prices
Triple-connection multimedia socket outlet for TV, radio, and satellite signals with champagne finish, featuring advanced EMC protection and low attenuation for superior signal quality in residential installations.

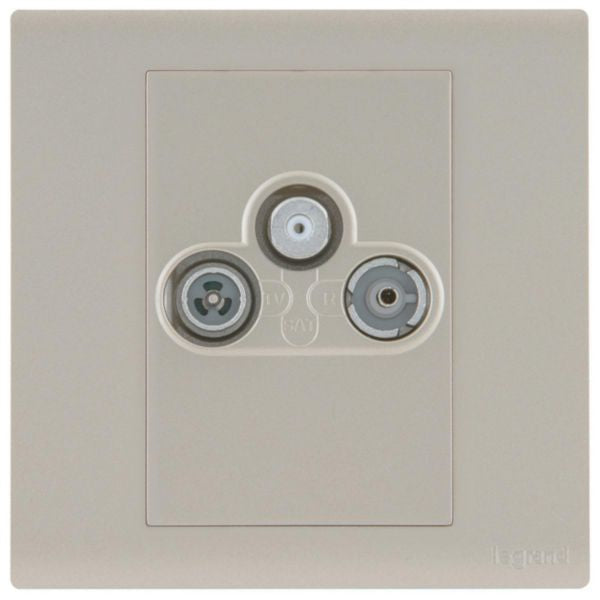

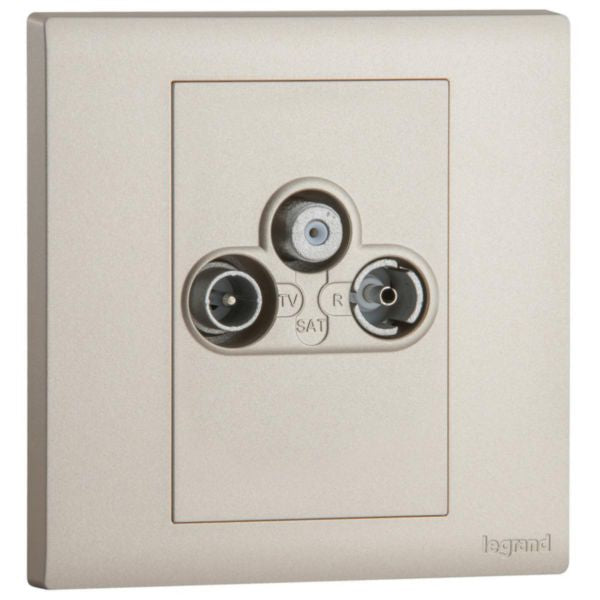

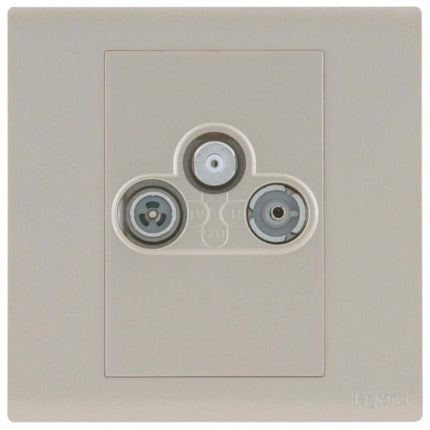

The Obria TV + R + SAT Champagne socket outlet is a premium triple-connection solution designed to seamlessly integrate television, radio, and satellite signals into a single elegant outlet. This comprehensive multimedia socket allows connection of all types of televisions including DVBT, SAT, and CATV systems, making it an ideal choice for modern home entertainment installations. The socket features a sophisticated champagne finish that complements any interior design aesthetic while maintaining full functionality and reliability.
This end socket outlet is engineered with advanced EMC protection technology to shield against electromagnetic interference from 3G, 4G, and 5G signals, preventing image pixelation and signal degradation. The socket incorporates a Type F screw connector for satellite connections and 9.5mm connectors for TV and radio inputs, ensuring secure and stable connections. With an exceptionally low attenuation loss of less than 1.5 dB at 860 MHz and full compliance with EN-50083-4 and EN-50083-2 standards, this outlet delivers superior signal quality and reliability.
Designed for flush-mounted installation, the Obria socket features a modern full-plate design that provides perfect decoration integration into any room. The unit operates effectively across a wide frequency range from 87.5-108 MHz for radio and 950-2400 MHz for satellite signals. With its IK04 impact resistance rating and IP20 protection degree, this socket offers durability suitable for residential applications. The champagne gold lacquered finish with matt surface protection ensures long-lasting aesthetic appeal and protection against environmental factors.
Key Features
- Triple connection capability for TV, Radio, and Satellite signals in single outlet
- Advanced EMC protection against 3G, 4G, and 5G electromagnetic interference
- Exceptionally low attenuation loss less than 1.5 dB at 860 MHz
- Secure Type F screw connector for satellite and 9.5mm connectors for TV/Radio
- Modern champagne finish with full-plate design for perfect interior integration
- Wide frequency range coverage from 87.5-108 MHz and 950-2400 MHz
- Flush-mounted installation with IK04 impact resistance and IP20 protection
- Full compliance with EN-50083-4 and EN-50083-2 international standards
Technical Specifications
| Specification |
Value |
| Product Model | End socket with TV/RD/SAT triple connection |
| Reference Number | MEC41067CH |
| EAN Code | 3414972675178 |
| Socket Type | TV 9.5mm Male, Radio 9.5mm Female, SAT Type F Screw Connector |
| Mounting Method | Flush-mounted installation |
| Number of Modules | 2 module system |
| Assembly Arrangement | Basic element with central cover plate |
| Attenuation Loss | Less than 1.5 dB at 860 MHz |
| LTE Protection | Class A level with attenuation loss < 1.5 dB |
| Radio Frequency Band | 87.5-108 MHz |
| Satellite Frequency Band | 950-2400 MHz |
| Type of Fastening | Mounting with screw |
| Colour | Champagne Gold |
| Surface Protection | Lacquered with matt finish |
| Material | Thermoplastic |
| Halogen Free | No |
| IP Rating | IP20 |
| Impact Strength Rating | IK04 |
| Device Width | 86 mm |
| Device Height | 87.4 mm |
| Device Depth | 39.6 mm |
| Minimum Built-in Installation Box Depth | 35 mm |
| Built-in Depth | 27.3 mm |
| Operating Temperature Range | -5 to 35°C |
| Storage Temperature Range | -10 to 70°C |
| Remote Power Supply Support | No |
| Terminal Marking Indication | No |
| Standards Compliance | EN-50083-4 & EN-50083-2 |
| Recommended Use | Indoor use only |
| Brand | Legrand - Obria Range |
