Shop Legrand Obria TV Female Terminal Socket Champagne MEC41021CH | MEC41021CH In Iraq Best Prices
Professional TV female terminal socket with champagne finish, low attenuation design, and advanced EMC protection for crystal-clear signal transmission. Compliant with EN-50083 standards and ideal for conventional television connections.

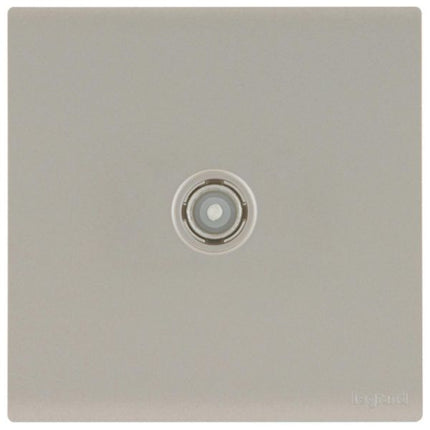

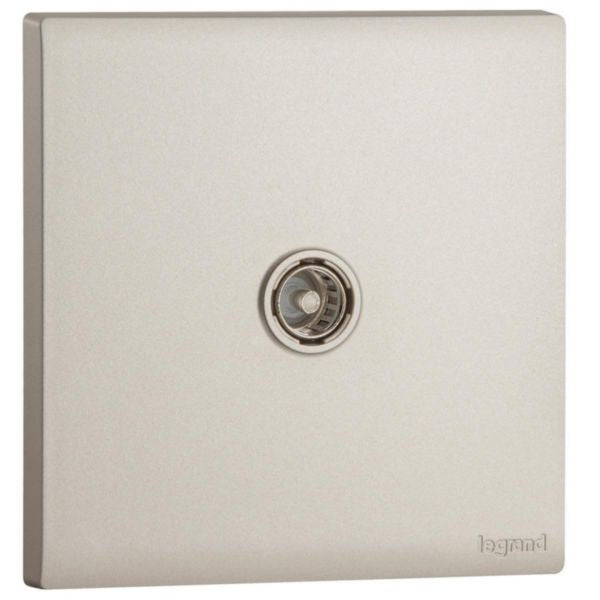

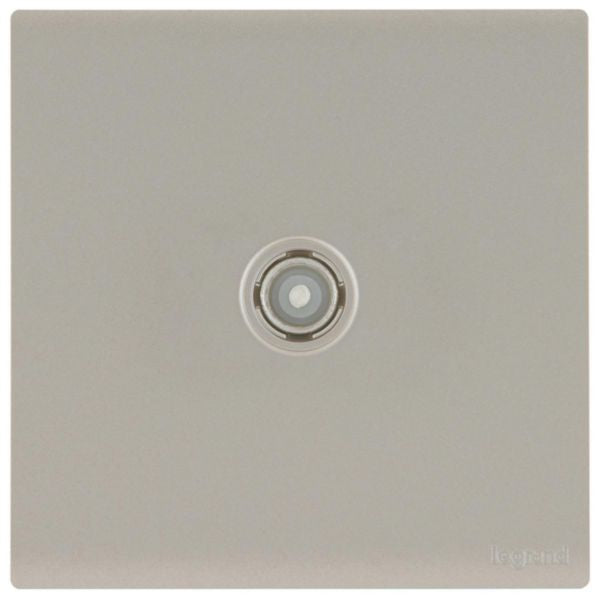

The Obria TV Female Terminal Socket in Champagne finish is a professional-grade television connection solution designed for conventional televisions using the old standard male plug configuration. This high-performance socket delivers exceptional signal quality with minimal attenuation loss of less than 1 dB, ensuring crystal-clear picture and sound transmission across the full TV frequency band from 5 to 1000 MHz. The socket is fully compliant with EN-50083-4 and EN-50083-2 standards, making it ideal for residential and commercial installations.
This flush-mounted socket features a modern full plate design with champagne-colored thermoplastic construction, seamlessly integrating into any interior décor scheme. The 2-module assembly arrangement provides a complete installation solution sold as a comprehensive package under a single catalog number. Built with secured screw connection fastening, the socket offers reliable and durable performance with a limited cable bend radius that further reduces attenuation losses. The device dimensions of 86mm width by 87.4mm height ensure compatibility with standard installation boxes requiring a minimum depth of 35mm.
The Obria TV socket is engineered with advanced EMC protection against 3G, 4G, and 5G perturbances, effectively preventing image pixelation and signal degradation from modern wireless interference. Operating within a temperature range of -5°C to 35°C, this socket is recommended for indoor use only and provides an impact strength rating of IK04. The low-attenuation design combined with modern full plate aesthetics and comprehensive EMC shielding makes this socket an excellent choice for contemporary home entertainment systems requiring professional-grade signal transmission and elegant design integration.
Key Features
- Low attenuation socket with less than 1 dB loss for superior signal quality
- Advanced EMC protection against 3G, 4G, and 5G interference preventing image pixelation
- Modern full plate design with champagne finish for seamless décor integration
- Secured screw connection fastening for reliable and durable performance
- Compliant with EN-50083-4 and EN-50083-2 international standards
- TV 9.5mm female connector compatible with conventional television male plugs
- Limited cable bend radius technology reducing attenuation losses
- Complete 2-module assembly package sold under single catalog number
- Operating temperature range -5°C to 35°C for stable performance
- Impact strength rating IK04 with IP20 degree of protection
Technical Specifications
| Specification |
Value |
| Product Type | TV Female Terminal Socket |
| Model | End socket |
| Socket Type | TV 9.5mm Female |
| Mounting Method | Flush-mounted |
| Number of Modules | 2 modules |
| Assembly Arrangement | Basic element with full cover plate |
| Attenuation Loss | Less than 1 dB at 860 MHz |
| Frequency Band | 5-1000 MHz |
| Fastening Type | Mounting with screw |
| Colour | Gold |
| Surface Protection | Lacquered |
| Surface Finishing | Matt |
| Material | Thermoplastic |
| Halogen Free | No |
| Antimicrobial Treatment | No |
| Degree of Protection (IP) | IP20 |
| Impact Strength (IK) | IK04 |
| Device Width | 86 mm |
| Device Height | 87.4 mm |
| Device Depth | 28.2 mm |
| Built-in Installation Box Depth (Min) | 35 mm |
| Built-in Depth | 19.5 mm |
| Operating Temperature Range | -5°C to 35°C |
| Storage Temperature Range | -10°C to 70°C |
| Terminal Marking Indication | No |
| Tap Loss at 860 MHz | 1 dB |
| Remote Power Supply Suitable | No |
| Standards Compliance | EN-50083-4 and EN-50083-2 |
| Recommended Use | Indoor use only |
| SKU | MEC41021CH |
| EAN Code | 3414972674874 |
| Brand | Obria by Legrand |
Order Legrand Obria TV Female Terminal Socket Champagne MEC41021CH | MEC41021CH at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
