Shop Legrand Obria TV F Type Socket Export Matt White | MEC41066WH In Iraq Best Prices
Professional Obria TV F Type socket with Matt White finish, featuring F-screw connector, low attenuation loss below 1.5 dB, and full EMC protection against 3G/4G/5G interference for superior television signal quality.

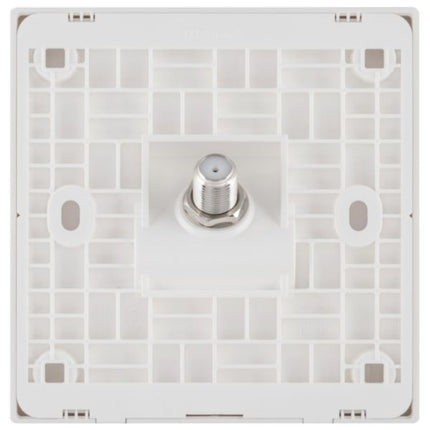

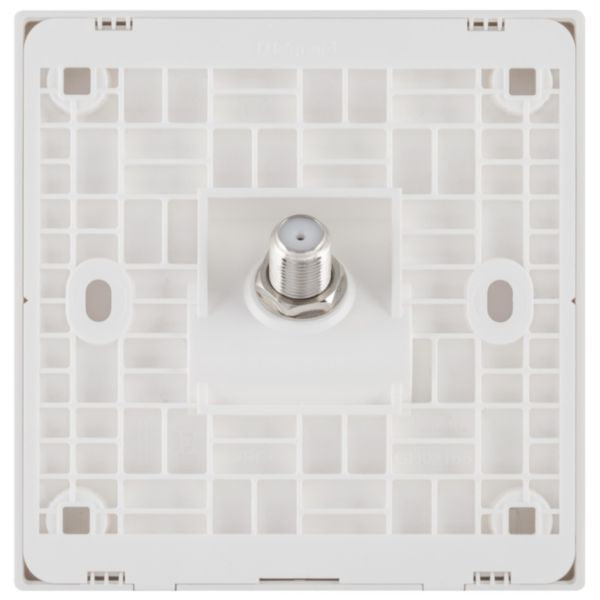

The Obria TV F Type Socket Export in Matt White finish is a premium television outlet designed for seamless connectivity with all types of televisions featuring F Type connectors. This professional-grade socket delivers exceptional performance with minimal signal loss, featuring an attenuation loss of less than 1.5 dB at critical frequencies. The socket is engineered to comply with international standards EN-50083-4 and EN-50083-2, ensuring reliable and interference-free television signal transmission across the full frequency band of 5-1000 MHz. The modern full plate design integrates perfectly into contemporary interior décor while providing complete EMC protection against 3G, 4G, and 5G signal perturbations that could cause image pixelation or signal degradation.
This flush-mounted television socket features a secured F-type screw connection mechanism that ensures stable and reliable connections without signal degradation. The Matt White finish provides an elegant, contemporary appearance that complements any modern interior design scheme. With its 2-module configuration and basic element assembly with full cover plate, the socket offers professional installation capabilities with visual connection verification. The device is constructed from high-quality thermoplastic material and is rated IP20 for degree of protection and IK04 for impact strength, making it suitable for residential and light commercial applications.
The Obria TV socket is recommended for indoor use only and features optimized cable bend radius design that minimizes attenuation losses and ensures superior signal quality. The compact dimensions (86mm width x 87.4mm height x 34.2mm depth) make it ideal for standard flush-mounted installation boxes with a minimum depth of 35mm. Operating across a temperature range of -5 to 35°C, this socket maintains consistent performance in various environmental conditions, making it a reliable choice for long-term installation in homes and offices.
Key Features
- F Type Screw Connector - Secured connection mechanism for all television types
- Low Attenuation Loss - Less than 1.5 dB at 860 MHz for superior signal quality
- EMC Protection - Fully protected against 3G, 4G, and 5G signal perturbances
- Modern Design - Matt White finish with full plate design for perfect decoration integration
- International Standards Compliance - Conforms to EN-50083-4 and EN-50083-2
- Wide Frequency Range - Supports 5-1000 MHz television frequency band
- Flush-Mounted Installation - Easy installation in standard mounting boxes
- Optimized Cable Bend Radius - Minimizes attenuation losses and ensures signal stability
- Compact Dimensions - 86mm width x 87.4mm height for standard installation
- Durable Construction - High-quality thermoplastic material with IP20 protection and IK04 impact strength
Technical Specifications
| Specification |
Value |
| Product Model | End Socket |
| Socket Type | Television (TV) |
| Connector Type | F Type Screw Connector |
| Installation Method | Flush-Mounted |
| Module Configuration | 2 Modules |
| Assembly Type | Basic Element with Full Cover Plate |
| Attenuation Loss at 860 MHz | 1 dB (Maximum 1.5 dB) |
| Frequency Band | 5-1000 MHz |
| Fastening Type | Mounting with Screw |
| Color | White |
| Surface Finishing | Matt |
| Material | Thermoplastic |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Device Width | 86 mm |
| Device Height | 87.4 mm |
| Device Depth | 34.2 mm |
| Built-in Installation Box Depth | Minimum 35 mm |
| Built-in Depth | 17.9 mm |
| Operating Temperature Range | -5 to 35°C |
| Storage Temperature Range | -10 to 70°C |
| Halogen Free | No |
| Antimicrobial Treatment | No |
| Remote Power Supply Compatible | No |
| Standards Compliance | EN-50083-4 and EN-50083-2 |
Order Legrand Obria TV F Type Socket Export Matt White | MEC41066WH at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
