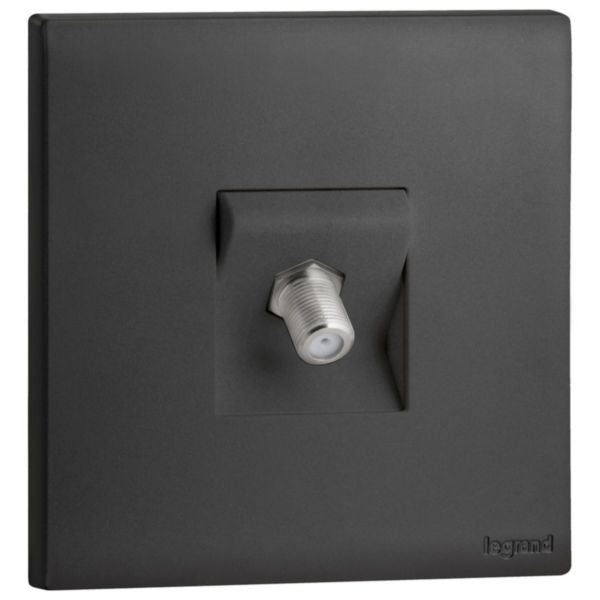

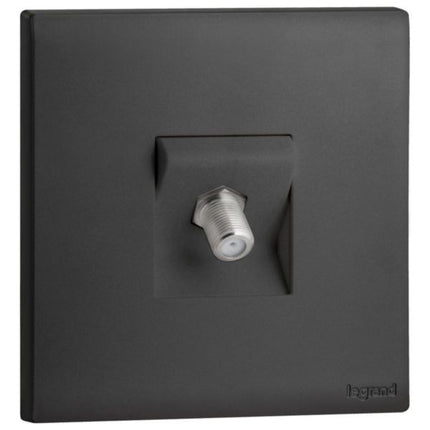

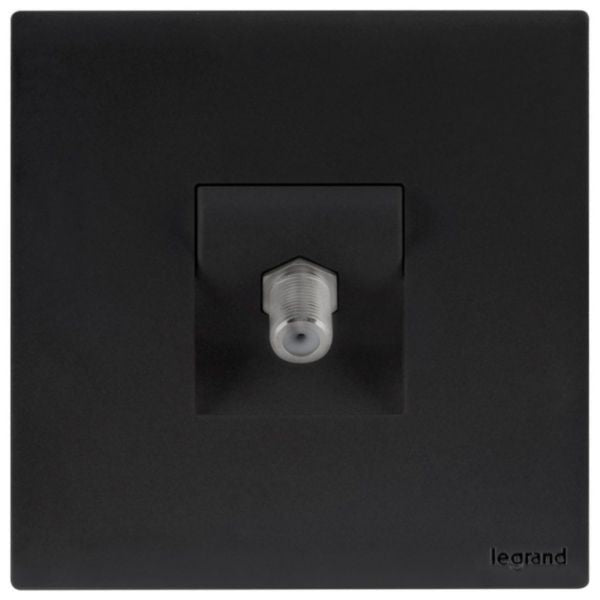

Shop Legrand Obria TV F Type Socket Export Matt Black | MEC41066BL In Iraq Best Prices
Premium flush-mounted TV socket with F-type connector, Matt Black finish, and advanced EMC protection for reliable television signal distribution. Meets international standards with minimal attenuation loss.
The Obria TV F Type Socket Export in Matt Black is a premium television connection solution designed for modern homes and commercial installations. This flush-mounted socket features an F-type screw connector (F screw TV Plug) that allows seamless connection to all types of televisions, ensuring reliable signal transmission with minimal attenuation loss. The socket is engineered to meet international standards EN-50083-4 and EN-50083-2, providing superior performance and compatibility across different TV models and broadcasting systems.
This sophisticated wiring device combines functionality with elegant aesthetics, featuring a contemporary full plate design with Matt Black finish that integrates perfectly with modern interior décor. The socket incorporates advanced EMC (Electromagnetic Compatibility) protection against 3G, 4G, and 5G perturbances, effectively preventing image pixelation and signal degradation. With an attenuation loss of less than 1.5 dB at 860 MHz and support for TV frequency bands from 5-1000 MHz, this socket delivers exceptional signal quality for digital and analog television reception.
Designed for flush-mounted installation, the Obria TV socket features a secure screw connection mechanism with a limited cable bend radius that minimizes attenuation losses. The product is part of the renowned Obria wiring devices range by Legrand, manufactured with high-quality thermoplastic materials and finished to IP20 protection standards with IK04 impact resistance. This television socket is recommended for indoor use and provides a professional-grade solution for residential and small commercial applications requiring reliable TV signal distribution.
Key Features
- F-type screw connector (F screw TV Plug) for all television types
- Low attenuation loss less than 1.5 dB at 860 MHz
- Advanced EMC protection against 3G, 4G, and 5G interference
- Modern Matt Black finish with full plate design for aesthetic integration
- Meets international standards EN-50083-4 and EN-50083-2
- Secure screw connection mechanism with visual check capability
- Supports TV frequency bands from 5-1000 MHz
- Limited cable bend radius for optimal signal quality
- IP20 protection degree with IK04 impact resistance
- Flush-mounted installation for seamless wall integration
Technical Specifications
| Specification |
Value |
| Product Reference | MEC41066BL |
| EAN Code | 3414972674997 |
| Brand | Legrand - Obria |
| Socket Type | TV F-Type Socket |
| Connector Type | F-Type Screw Connector (F screw TV Plug) |
| Installation Method | Flush-mounted |
| Number of Modules | 2 modules |
| Assembly Type | Basic element with full cover plate |
| Attenuation Loss | Less than 1.5 dB (1 dB at 860 MHz) |
| TV Frequency Band | 5-1000 MHz |
| Tap Loss at 860 MHz | 1 dB |
| Color | Matt Black |
| Surface Finishing | Matt |
| Material | Thermoplastic |
| Material Quality | High-quality thermoplastic |
| Halogen Free | No |
| Antimicrobial Treatment | No |
| Degree of Protection (IP) | IP20 |
| Impact Strength Degree (IK) | IK04 |
| Device Width | 86 mm |
| Device Height | 87.4 mm |
| Device Depth | 34.2 mm |
| Minimum Built-in Installation Box Depth | 35 mm |
| Built-in Depth | 17.9 mm |
| Operating Temperature Range | -5 to 35°C |
| Storage Temperature Range | -10 to 70°C |
| Type of Fastening | Mounting with screw |
| Remote Power Supply Suitable | No |
| Terminal Marking Indication | No |
| Compliance Standards | EN-50083-4, EN-50083-2 |
| EMC Protection | 3G, 4G, 5G interference protection |
| Recommended Use | Indoor use only |
Order Legrand Obria TV F Type Socket Export Matt Black | MEC41066BL at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
