Shop Legrand Obria TV F Type Socket Export Champagne Gold | MEC41066CH In Iraq Best Prices
Professional TV F Type socket with champagne gold finish, featuring F screw connector, minimal signal loss under 1.5 dB, EMC protection against 3G/4G/5G interference, and compliance with EN-50083 standards for superior television connectivity.

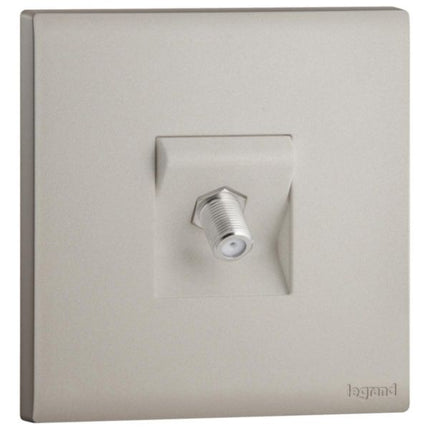

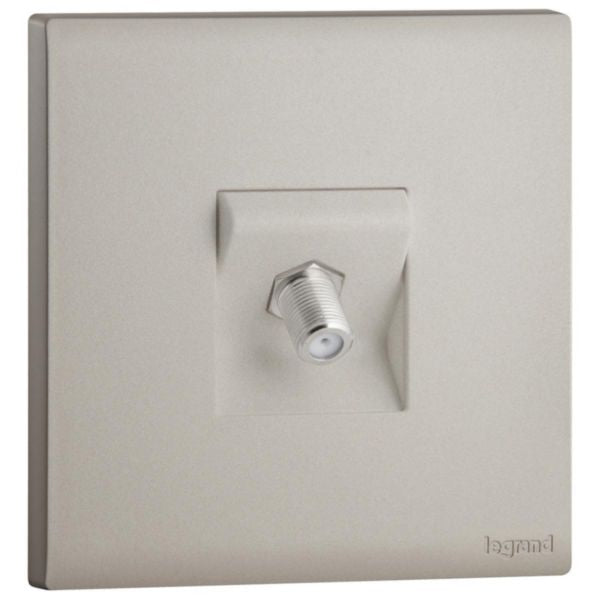

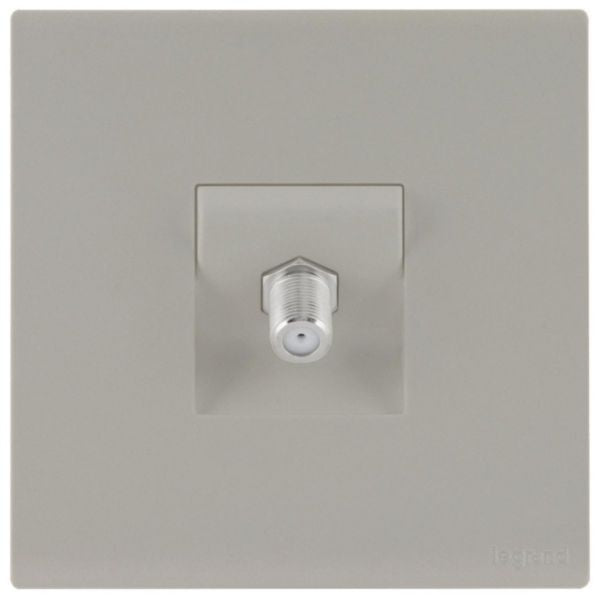

The Obria TV F Type Socket Export in Champagne finish is a professional-grade television outlet designed for seamless integration into modern residential and commercial installations. This flush-mounted socket features an F Type screw connector that accommodates all standard television cables with exceptional reliability and minimal signal loss. The socket is engineered to deliver superior EMC protection against 3G, 4G, and 5G interference, ensuring crystal-clear picture quality without pixelation or signal degradation. With an attenuation loss of less than 1.5 dB at 860 MHz and compliance with EN-50083-4 and EN-50083-2 standards, this outlet provides professional-grade performance for demanding television installations.
Designed with a modern full-plate architecture, the Obria TV socket seamlessly blends into contemporary interior design schemes while providing robust functionality. The champagne gold finish offers an elegant aesthetic that complements various décor styles. The product features a secured screw connection mechanism that ensures stable cable retention and prevents accidental disconnection. The socket is housed within a 2-module assembly that includes a central cover plate for complete protection and professional appearance. Operating across the 5-1000 MHz frequency band, this socket supports all standard television broadcasting formats and ensures optimal signal transmission quality.
The Obria TV F Type Socket is specifically recommended for indoor use and features comprehensive EMC shielding to protect against modern wireless interference. With an impact strength rating of IK04 and IP20 degree of protection, the socket is suitable for standard indoor environments. The mounting system utilizes secure screw fastening with a built-in depth of 17.9 mm, making it compatible with standard flush-mounting installation boxes. This professional television outlet represents the ideal choice for installations requiring reliable, high-performance TV connectivity with aesthetic appeal.
Key Features
- F Type screw connector compatible with all standard television cables
- Low attenuation loss less than 1.5 dB at 860 MHz for superior signal quality
- Comprehensive EMC protection against 3G, 4G, and 5G wireless interference
- Modern champagne gold finish with full plate design for aesthetic integration
- Secured screw connection mechanism preventing accidental cable disconnection
- Operates across 5-1000 MHz frequency band supporting all broadcasting formats
- Flush-mounted installation with 2-module assembly and central cover plate
- Compliant with EN-50083-4 and EN-50083-2 television signal standards
Technical Specifications
| Specification |
Value |
| Product Type | TV F Type Socket Outlet |
| Connector Type | F Type Screw Connector |
| Mounting Method | Flush-mounted |
| Number of Modules | 2 modules |
| Assembly Type | Basic element with central cover plate |
| Attenuation Loss at 860 MHz | 1 dB (maximum 1.5 dB) |
| Frequency Band | 5-1000 MHz |
| Fastening Type | Mounting with screw |
| Color | Gold (Champagne finish) |
| Surface Protection | Lacquered |
| Surface Finishing | Matt |
| Material | Plastic (Thermoplastic) |
| Halogen Free | No |
| Degree of Protection (IP) | IP20 |
| Impact Strength Rating (IK) | IK04 |
| Device Width | 86 mm |
| Device Height | 87.4 mm |
| Device Depth | 34.2 mm |
| Minimum Installation Box Depth | 35 mm |
| Built-in Depth | 17.9 mm |
| Operating Temperature Range | -5 to 35°C |
| Storage Temperature Range | -10 to 70°C |
| Remote Power Supply | Not suitable |
| Terminal Marking | No |
| Standards Compliance | EN-50083-4, EN-50083-2 |
| Recommended Use | Indoor use only |
| SKU | MEC41066CH |
| EAN Code | 3414972675024 |
