Description

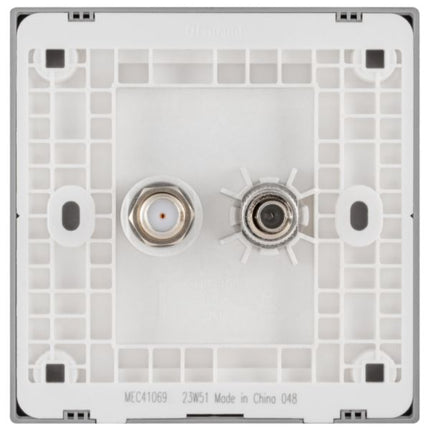

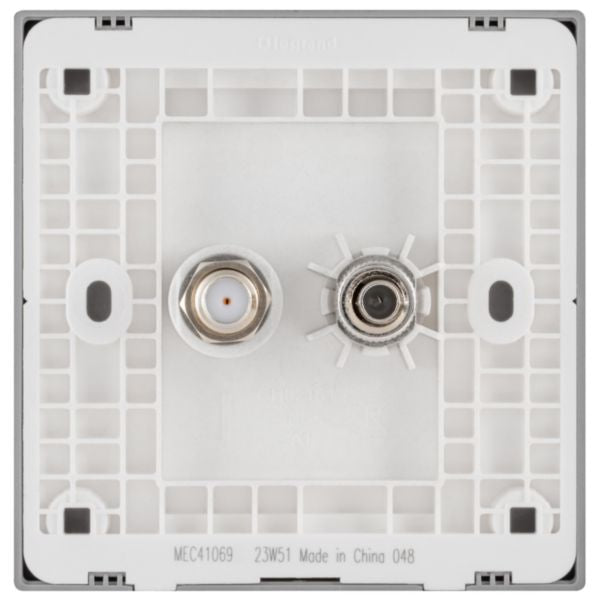

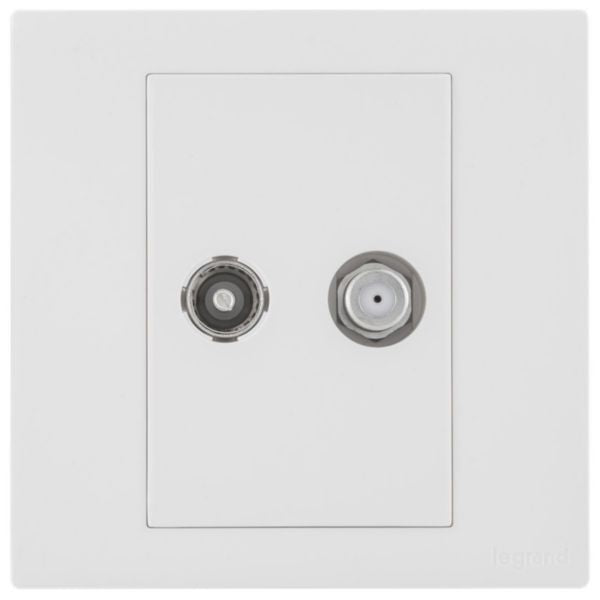

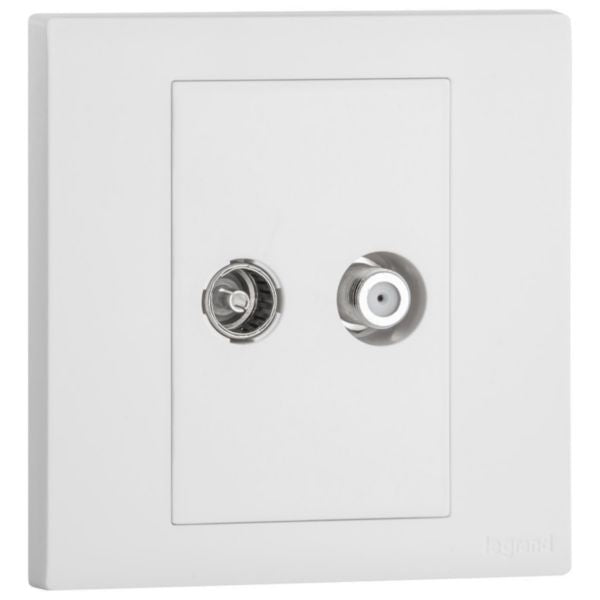

Shop Legrand Obria Double TV Socket Female F Type Matt White | MEC41069WH In Iraq Best Prices

Dual-function TV socket enabling simultaneous connection to conventional TV input and satellite networks with modern matt white finish and tool-less installation.
The Obria Double TV Socket Female + F Type in Matt White is a professional-grade wall-mounted socket designed to provide dual connectivity for both conventional TV input and satellite connections. This high-quality outlet features modern full plate design that seamlessly integrates with contemporary interior decoration schemes. The socket is delivered as a complete set with protective shell against paint and dust during the installation phase, ensuring pristine condition upon mounting. This dual-function TV socket is specifically engineered to allow simultaneous connection to both hertzian and satellite networks, making it ideal for home entertainment systems that require flexible connectivity options. The socket features tool-less installation capability, marked terminals for easy identification, and comes complete with mounting screws suitable for both flush and surface boxes in plastic and metal configurations. The matt white finish provides a sophisticated, contemporary appearance that complements any modern interior design. With an operating temperature range of -5 to 35°C and storage capability from -10 to 70°C, this socket maintains reliable performance across various environmental conditions. The device meets IP20 protection standards and IK04 impact strength requirements, ensuring durability and safety in residential applications. The technical specifications include a tap loss of just 1 dB at 860 MHz and TV frequency band coverage from 5-1000 MHz, providing excellent signal quality for both terrestrial and satellite television reception.

Key Features

  • Dual connection capability for both hertzian and satellite networks
  • Tool-less installation system for quick and easy mounting
  • Marked terminals for easy identification and proper installation
  • Protective shell included against paint and dust during installation
  • Modern full plate design for seamless interior decoration integration
  • Suitable for both flush and surface mounting in plastic and metal boxes
  • Low tap loss of 1 dB at 860 MHz for superior signal quality
  • Wide TV frequency band coverage from 5-1000 MHz
  • Matt white finish for contemporary aesthetic appeal
  • IP20 protection rating for residential safety standards

Technical Specifications

Specification Value
ModelEnd socket
Type of Socket OutletTV
Mounting MethodFlush-mounted
Number of Modules2
Assembly ArrangementBasic element with full cover plate
Tap Loss at 860 MHz1 dB
TV Frequency Band5-1000 MHz
Type of FasteningMounting with screw
ColourWhite
RAL Number9003
Surface FinishingMatt
MaterialPlastic - Thermoplastic
Halogen FreeNo
Degree of Protection (IP)IP20
Degree of Impact Strength (IK)IK04
Device Width86 mm
Device Height87.4 mm
Device Depth39.9 mm
Minimum Built-in Installation Box Depth35 mm
Built-in Depth28.9 mm
Operating Temperature Range-5°C to 35°C
Storage Temperature Range-10°C to 70°C
Remote Power Supply SuitableNo
Antimicrobial TreatmentNo
Terminal Marking IndicationNo
Product ReferenceMEC41069WH
EAN Code3414972675383
BrandLegrand
Product LineObria
Recommended UseInside use only

Order Legrand Obria Double TV Socket Female F Type Matt White | MEC41069WH at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.

Product form

Legrand Obria Double TV Socket Female F Type Matt White | MEC41069WH

    SKU: MEC41069WH

      Description

      Shop Legrand Obria Double TV Socket Female F Type Matt White | MEC41069WH In Iraq Best Prices

      Dual-function TV socket enabling simultaneous connection to conventional TV input and satellite networks with modern matt white finish and tool-less installation.
      The Obria Double TV Socket Female + F Type in Matt White is a professional-grade wall-mounted socket designed to provide dual connectivity for both conventional TV input and satellite connections. This high-quality outlet features modern full plate design that seamlessly integrates with contemporary interior decoration schemes. The socket is delivered as a complete set with protective shell against paint and dust during the installation phase, ensuring pristine condition upon mounting. This dual-function TV socket is specifically engineered to allow simultaneous connection to both hertzian and satellite networks, making it ideal for home entertainment systems that require flexible connectivity options. The socket features tool-less installation capability, marked terminals for easy identification, and comes complete with mounting screws suitable for both flush and surface boxes in plastic and metal configurations. The matt white finish provides a sophisticated, contemporary appearance that complements any modern interior design. With an operating temperature range of -5 to 35°C and storage capability from -10 to 70°C, this socket maintains reliable performance across various environmental conditions. The device meets IP20 protection standards and IK04 impact strength requirements, ensuring durability and safety in residential applications. The technical specifications include a tap loss of just 1 dB at 860 MHz and TV frequency band coverage from 5-1000 MHz, providing excellent signal quality for both terrestrial and satellite television reception.

      Key Features

      • Dual connection capability for both hertzian and satellite networks
      • Tool-less installation system for quick and easy mounting
      • Marked terminals for easy identification and proper installation
      • Protective shell included against paint and dust during installation
      • Modern full plate design for seamless interior decoration integration
      • Suitable for both flush and surface mounting in plastic and metal boxes
      • Low tap loss of 1 dB at 860 MHz for superior signal quality
      • Wide TV frequency band coverage from 5-1000 MHz
      • Matt white finish for contemporary aesthetic appeal
      • IP20 protection rating for residential safety standards

      Technical Specifications

      Specification Value
      ModelEnd socket
      Type of Socket OutletTV
      Mounting MethodFlush-mounted
      Number of Modules2
      Assembly ArrangementBasic element with full cover plate
      Tap Loss at 860 MHz1 dB
      TV Frequency Band5-1000 MHz
      Type of FasteningMounting with screw
      ColourWhite
      RAL Number9003
      Surface FinishingMatt
      MaterialPlastic - Thermoplastic
      Halogen FreeNo
      Degree of Protection (IP)IP20
      Degree of Impact Strength (IK)IK04
      Device Width86 mm
      Device Height87.4 mm
      Device Depth39.9 mm
      Minimum Built-in Installation Box Depth35 mm
      Built-in Depth28.9 mm
      Operating Temperature Range-5°C to 35°C
      Storage Temperature Range-10°C to 70°C
      Remote Power Supply SuitableNo
      Antimicrobial TreatmentNo
      Terminal Marking IndicationNo
      Product ReferenceMEC41069WH
      EAN Code3414972675383
      BrandLegrand
      Product LineObria
      Recommended UseInside use only

      Order Legrand Obria Double TV Socket Female F Type Matt White | MEC41069WH at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
