Shop Legrand Obria 1-Gang Double Pole Switch 45A with Red LED Dark Silver | MEC21029SL In Iraq Best Prices
Premium 45A double-pole switch with red LED indicator, featuring modern dark silver design, screw terminals, and British Standards certification for heavy-load applications.

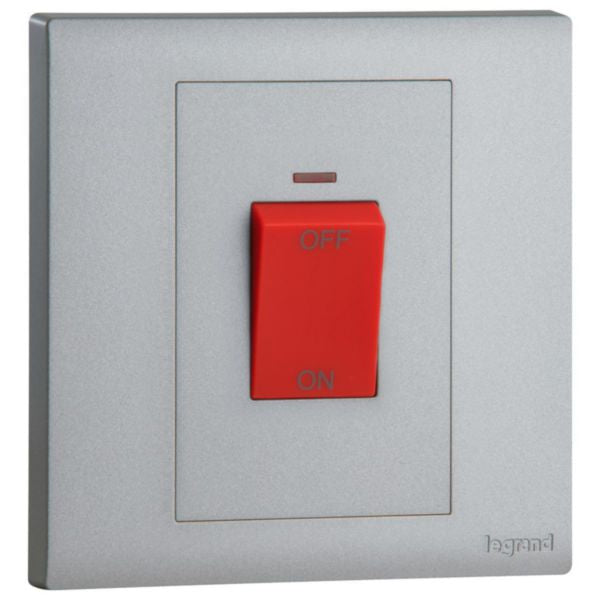

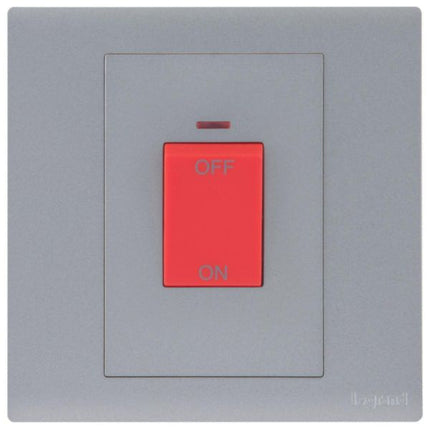

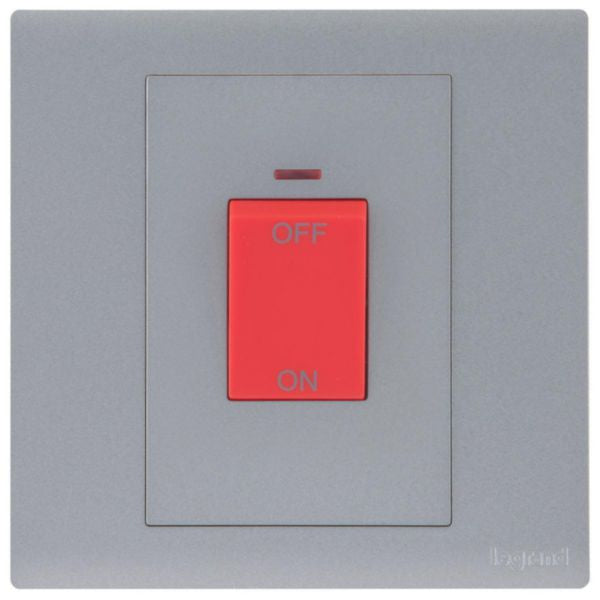

The Obria 1 Gang 1W 45A DP Switch with Red LED Indicator in Dark Silver is a premium electrical switch designed for controlling high-power devices up to 45A. This robust switch features a modern design with a full plate configuration that integrates seamlessly into any décor. The red LED indicator provides visual confirmation when the switch is in the ON position, making it easy to identify active circuits at a glance. Built with thermoplastic material and lacquered matt finish, this switch combines durability with aesthetic appeal.
This double-pole switch is engineered to meet British Standards certifications for heavy-load applications, making it ideal for controlling the power supply to demanding electrical devices. The switch features screw-type terminals for enhanced contact reliability and an open terminal design for straightforward installation. With a rated voltage of 250V and 45A capacity, it's suitable for both residential and commercial installations. The quick and easy plate-rocker clipping system ensures rapid installation, while the IK04 impact resistance rating provides protection against accidental damage.
The Obria range exemplifies technical robustness and modern design principles, offering a complete set solution under a single catalog number. Recommended for inside use only, this switch is compatible with standard flush-mounted installation boxes and provides reliable performance across standard operating temperatures. The dark silver finish adds a contemporary touch to any installation, making it an excellent choice for modern electrical installations requiring high-capacity switching.
Key Features
- 45A rated capacity at 250V for high-power device control
- Red LED indicator illuminates when switch is ON for easy circuit identification
- Double-pole switching configuration for enhanced safety and control
- Quick and easy plate-rocker clipping system for rapid installation

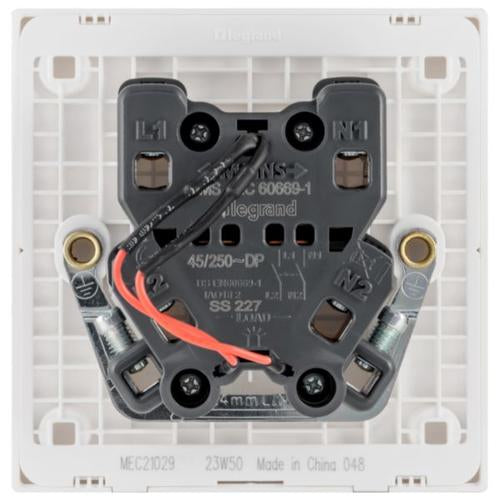

- Screw-type terminals with open design for reliable connections and straightforward installation
- IK04 impact resistance rating for protection against accidental damage
- Modern full plate design in dark silver finish for contemporary aesthetic appeal
- British Standards certified for heavy-load applications
- Thermoplastic material with lacquered matt surface finish
- Suitable for flush-mounted installation with standard electrical boxes
Technical Specifications
| Specification |
Value |
| Product Type | Double-Pole Switch (DP) |
| Rated Current | 45A |
| Nominal Voltage | 250V AC |
| Frequency | 50-60 Hz |
| Number of Gangs | 1 Gang |
| Number of Modules | 2 Modules |
| Method of Operation | Rocker/Button |
| Number of Rockers | 1 |
| Mounting Method | Flush-mounted |
| Type of Fastening | Screw mounting |
| Connection Type | Screwed terminal |
| Terminal Capacity | 1-10 mm² |
| Cable Section | 1-10 mm² |
| Material | Thermoplastic |
| Surface Finishing | Matt Lacquered |
| Color | Dark Silver |
| Switch Operator Color | Red |
| Lighting | Yes - LED Exchangeable |
| Function Lighting | Illuminated (ON) |
| Degree of Protection (IP) | IP20 |
| Degree of Impact Strength (IK) | IK04 |
| Device Width | 86 mm |
| Device Height | 87.4 mm |
| Device Depth | 33.9 mm |
| Built-in Depth | 21.8 mm |
| Minimum Box Depth | 35 mm |
| Operating Temperature Range | -5 to 35°C |
| Storage Temperature Range | -10 to 70°C |
| Halogen Free | No |
| Antimicrobial Treatment | No |
| Monitoring Contact | Yes |
| Heating Switch | No |
| Washing Machine Switch | No |
| Mandatory Neutral | Yes |
| Terminal Marking Indication | Yes |
| Voltage Type | AC |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT Support | No |
| UK Building Regulations Part M Compliant | No |
| Reference Number | MEC21029SL |
| EAN Code | 3414972667685 |
| Brand | Legrand - Obria Range |
| Certification | British Standards for Heavy Loads |
| Use Recommendation | Inside use only |
