Premium 45A double-pole switch with red LED indicator, dark silver finish, British Standard certified, ideal for high-capacity power control in residential and commercial applications.

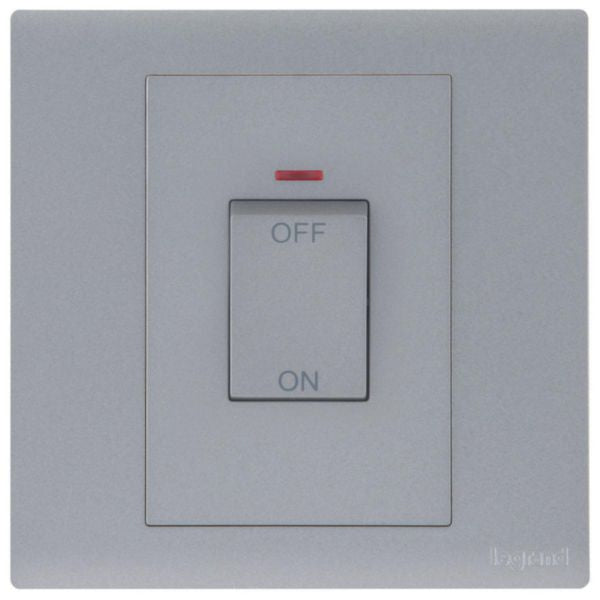

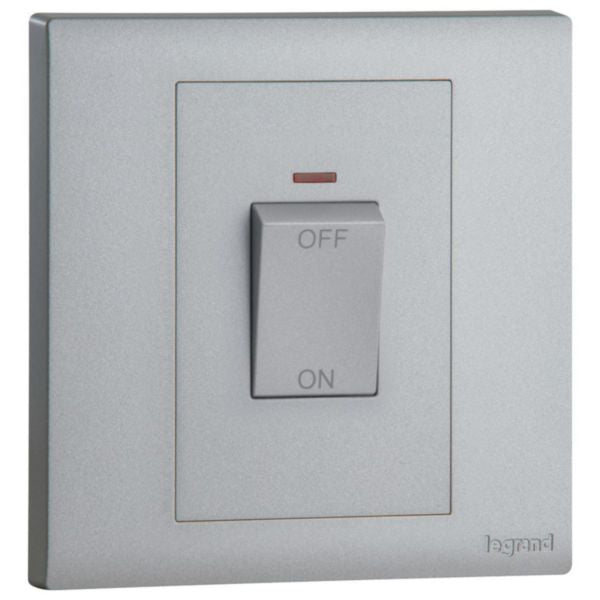

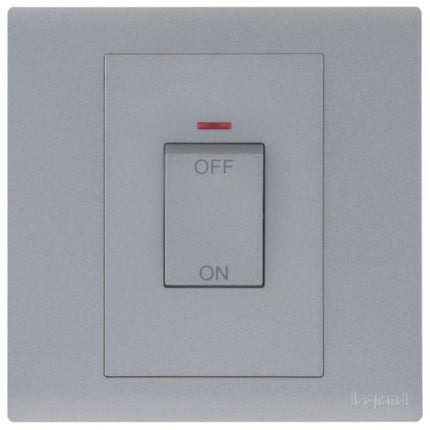

The Obria 1 Gang 1W 45A Double Pole Switch with Red LED Indicator in Dark Silver finish is a premium electrical switch designed for controlling high-capacity power supplies up to 45 amperes. This professional-grade switch features a modern full plate design that seamlessly integrates with contemporary interior décor while maintaining robust performance standards. The switch is equipped with an illuminated red LED indicator that provides visual feedback when the circuit is active, making it ideal for applications where power status visibility is essential.
This double-pole switch is constructed with thermoplastic material and features screw-type terminals that ensure enhanced electrical contacts and reliable connections. The device operates at 250V with a rated current of 45A, making it suitable for controlling heavy electrical loads such as water heaters, air conditioning units, and other high-power appliances. The quick and easy plate-rocker clipping system allows for straightforward installation, while the flush-mounted design maintains a clean, professional appearance on any wall surface.
Compliant with British Standards certifications for heavy loads, the Obria switch combines technicity and robustness with modern aesthetics. The dark silver finish provides an elegant appearance, and the device features an IK04 impact strength rating with IP20 degree of protection, ensuring durability in typical indoor environments. With its comprehensive technical specifications and user-friendly design, this switch is an excellent choice for residential and commercial applications requiring reliable high-capacity power control.
Key Features
- 45A rated current capacity with 250V nominal voltage for heavy electrical loads
- Double-pole design with red LED illuminated indicator for power status visibility
- Quick and easy plate-rocker clipping system for straightforward installation

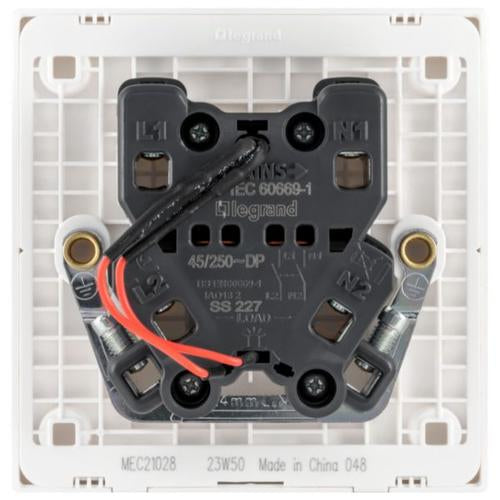

- Screw-type terminals for enhanced electrical contacts and reliable connections
- Dark silver thermoplastic finish with modern full plate design and IK04 impact strength rating
Technical Specifications
| Specification |
Value |
| Rated Current | 45 A at 250V AC |
| Voltage | 250V AC, 50-60 Hz |
| Pole Configuration | Double Pole (2-pole) |
| Material | Thermoplastic with lacquered matt finish |
| Dimensions | Width: 86mm, Height: 87.4mm, Depth: 33.9mm, Built-in depth: 21.8mm |
| Installation Method | Flush-mounted with screw mounting |
| Terminal Type | Screwed terminal, 1-10 mm² cable capacity |
| LED Indicator | Red LED illuminated (exchangeable), indicates ON status |
| Protection Rating | IP20 degree of protection, IK04 impact strength |
| Operating Temperature | -5°C to +35°C |
| Storage Temperature | -10°C to +70°C |
| Certifications | British Standards certified for heavy loads |
| Color | Dark Silver |
| Mounting Depth Required | Minimum 35mm installation box depth |
| Reference Number | MEC21028SL |
