Shop Legrand Obria 4-Gang 1-Way Switch 16A Champagne | MEC21010CH In Iraq Best Prices
Premium 4-gang 1-way 16A switch with champagne finish for multi-point lighting control. Features quick installation, screw terminals, and modern design ideal for residential and commercial applications.

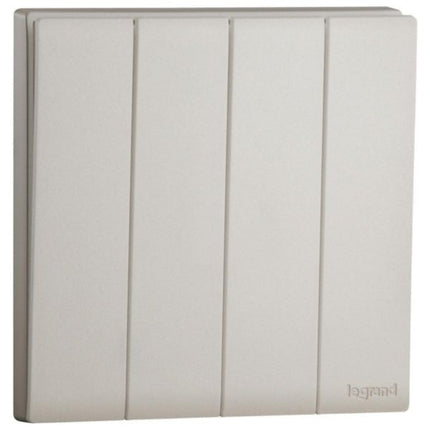

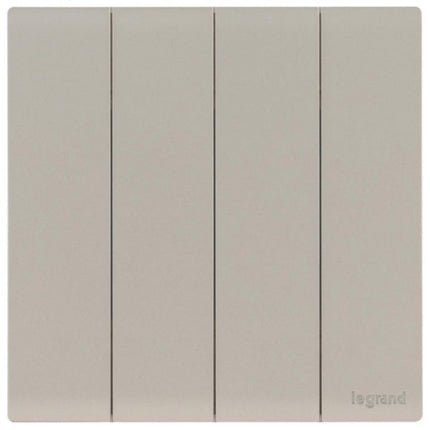

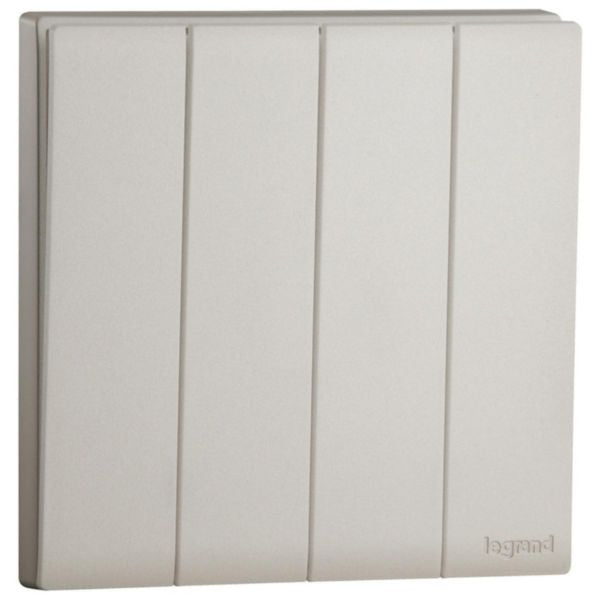

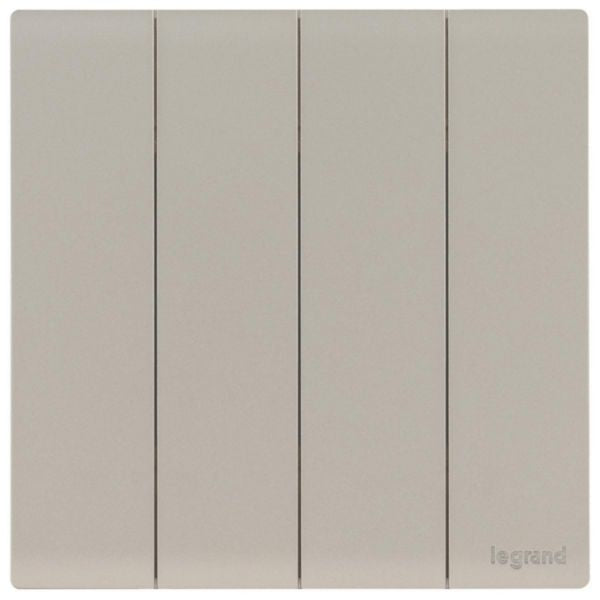

The Obria 4 Gang 1 Way 16A Switch in Champagne finish is a premium electrical switching solution designed for residential and commercial applications. This flush-mounted switch allows you to control four separate points of lighting from a single location, making it ideal for complex lighting arrangements in living rooms, bedrooms, kitchens, and commercial spaces. The switch features a modern full plate design with a champagne gold finish that seamlessly integrates with contemporary interior décor while maintaining exceptional durability and robustness.
Built with high-quality thermoplastic material, this switch combines technical excellence with user-friendly operation. The rocker/button mechanism provides smooth, reliable switching action with a rated current of 16A at 250V, suitable for both incandescent and fluorescent lighting loads. The quick and easy plate-rocker clipping system ensures straightforward installation, while the screw-type terminals with open terminal design facilitate hassle-free wiring connections. The device is designed for flush-mounting installation, requiring a minimum built-in depth of 35mm for proper installation in standard electrical boxes.
This Obria switch meets international safety standards and is compliant with building regulations. The champagne finish provides an elegant aesthetic appeal, while the IK04 impact strength rating ensures durability in everyday use. Recommended for indoor use only, this switch operates reliably across a temperature range of -5°C to 35°C, making it suitable for most climatic conditions in residential and light commercial environments.
Key Features
- 4-gang configuration for controlling four separate lighting points from single location
- 16A rated current at 250V AC suitable for incandescent and fluorescent loads
- Quick and easy plate-rocker clipping system for straightforward installation

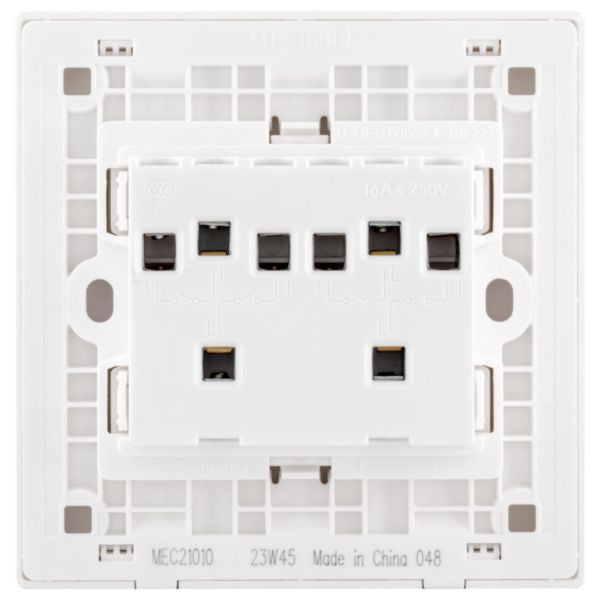

- Screw-type terminals with open terminal design for flexible cable connections
- Modern champagne finish with full plate design for elegant interior integration
- IK04 impact strength rating ensuring durability in everyday use
- Flush-mounted design requiring minimum 35mm built-in depth
- Operating temperature range -5°C to 35°C for reliable performance
- Thermoplastic material construction for robustness and longevity
- Terminal marking indication for easy identification and safe wiring
Technical Specifications
| Specification |
Value |
| Product Name | Obria 4 Gang 1 Way 16A Switch |
| SKU/Reference | MEC21010CH |
| EAN Code | 3414972666961 |
| Brand | Legrand |
| Series | Obria |
| Finish Color | Champagne Gold |
| Number of Gangs | 4 |
| Switching Configuration | 1-pole (1 way) |
| Rated Current | 16A |
| Switching Current for Fluorescent | 16AX |
| Nominal Voltage | 250V AC |
| Frequency Range | 50-60 Hz |
| Method of Operation | Rocker/Button |
| Number of Rockers | 4 |
| Mounting Method | Flush-mounted |
| Type of Fastening | Screw mounting |
| Material | Thermoplastic |
| Surface Finishing | Matt lacquered |
| Halogen Free | No |
| Antimicrobial Treatment | No |
| Device Width | 86 mm |
| Device Height | 87.4 mm |
| Device Depth | 39.3 mm |
| Built-in Depth | 24.6 mm |
| Minimum Installation Box Depth | 35 mm |
| Degree of Protection (IP) | IP20 |
| Impact Strength Rating (IK) | IK04 |
| Connection Type | Screwed terminal |
| Terminal Capacity | 1-4 mm² |
| Cable Nature | Flexible or rigid |
| Cable Section | 1-4 mm² |
| Tube Diameter Range | 16-32 mm |
| Operating Temperature | -5°C to 35°C |
| Storage Temperature | -10°C to 70°C |
| Voltage Type | AC |
| Mandatory Neutral | No |
| Terminal Marking | Yes |
| Heating Switch | No |
| Washing Machine Switch | No |
| Push Button Switch | No |
| Monitoring Contact | No |
| Label Space | No |
| Lighting Feature | No |
| Smart Home Compatible | No (Not compatible with Apple HomeKit, Google Assistant, or Amazon Alexa) |
| IFTTT Support | No |
| UK Building Regulations Part M | Not compliant |
| Installation Type | Flush-mounted with basic element housing top |
| Mounting Plate Included | No |
| Recommended Use | Indoor use only |
| Assembly Arrangement | Basic element with housing top |
Order Legrand Obria 4-Gang 1-Way Switch 16A Champagne | MEC21010CH at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
