Description

Shop Legrand Obria 1-Gang Double Pole Switch 20A Water Heater with LED Indicator Champagne | MEC21025CH In Iraq Best Prices

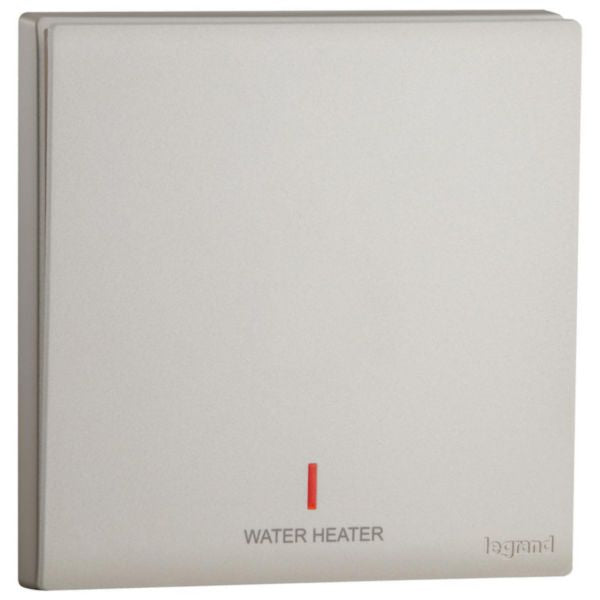

Premium 20A double pole switch with LED indicator for water heater control, champagne finish, British Standards certified, complete installation-ready set

The Obria 1 gang 1W 20A Double Pole Switch with LED Indicator and Water Heater Marking is a premium electrical switching solution designed specifically for controlling power supply to water heater devices up to 20A capacity. This robust switch features a sophisticated champagne finish that seamlessly integrates with modern interior designs while maintaining exceptional functionality. The product is sold as a complete set with reference number MEC21025CH and EAN 3414972667265. Equipped with advanced LED indicator lighting that illuminates when the switch is in the 'on' position, this double pole switch provides clear visual confirmation of power status. The switch incorporates an earth connection for enhanced safety and includes screw-type terminals that ensure enhanced electrical contacts with easy installation capabilities. The champagne-colored finish combined with the modern full plate design creates an elegant aesthetic that complements any contemporary or traditional décor. This switch complies with British Standards certifications for heavy loads and is recommended for inside use only. With its thermoplastic housing, lacquered matt finish, and robust construction, the Obria switch delivers technicity and durability that meets professional installation standards. The quick and easy plate-rocker clipping system facilitates rapid installation, while the 250V nominal voltage and 20A rated current specifications make it ideal for demanding applications requiring reliable power control.

Key Features

20A Double Pole switch rated for heavy electrical loads and water heater control
LED indicator lighting that illuminates when switch is in 'on' position for clear power status confirmation
Earth connection included for enhanced electrical safety and protection
Screw-type terminals with enhanced contacts for secure and easy installation
Quick and easy plate-rocker clipping system for rapid professional installation

Technical Specifications

Specification	Value
Product Name	Obria 1 Gang 20A Double Pole Switch with LED Indicator
Reference Number	MEC21025CH
EAN Code	3414972667265
Rated Current	20 Amperes
Nominal Voltage	250 Volts AC
Frequency	50-60 Hz
Switch Type	2-pole Double Pole
Method of Operation	Rocker/button
Number of Rockers	1
Mounting Method	Flush-mounted
Type of Fastening	Screw mounting
Material	Thermoplastic
Colour	Champagne/Gold
Surface Finishing	Lacquered Matt
Lighting Function	Illuminated (on) with Glow lamp
Degree of Protection (IP)	IP20
Impact Strength (IK)	IK04
Connection Type	Screwed terminal
Terminal Capacity	1-4 mm²
Cable Nature	Flexible or rigid
Device Width	86 mm
Device Height	87.4 mm
Device Depth	34.4 mm
Built-in Depth	19.7 mm
Minimum Built-in Installation Box Depth	35 mm
Operating Temperature Range	-5°C to 35°C
Storage Temperature Range	-10°C to 70°C
Heating Switch Function	Yes - Water Heater Marking
Monitoring Contact	Yes
Mandatory Neutral	Yes
Halogen Free	No
Antimicrobial Treatment	No
Smart Home Compatibility	Not compatible with Apple HomeKit, Google Assistant, or Amazon Alexa
UK Building Regulations Part M	Not compliant
Standards Compliance	British Standards for heavy loads
Recommended Use	Inside use only

Order Legrand Obria 1-Gang Double Pole Switch 20A Water Heater with LED Indicator Champagne | MEC21025CH at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
