Shop Legrand Obria 2 Gang BS 13A Switch Socket USB A+C 15W Dark Silver | MEC33090SL In Iraq Best Prices

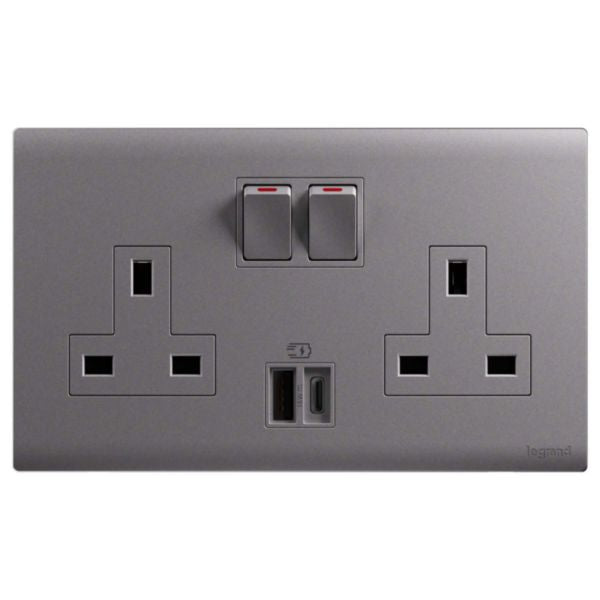

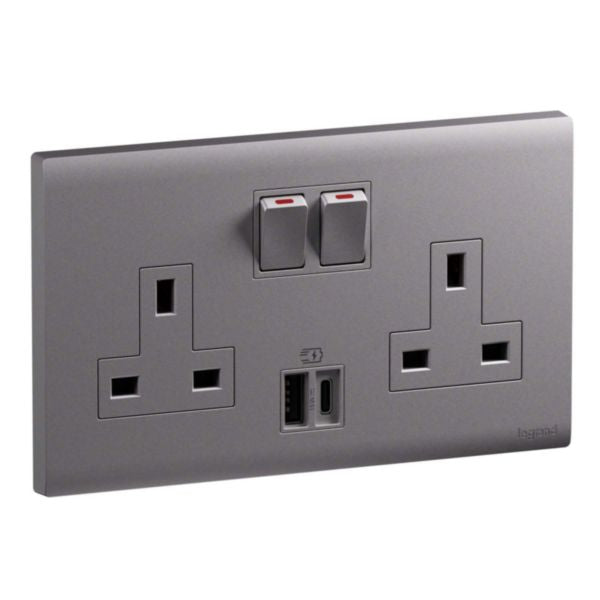

Modern 2 gang British 13A switched socket with integrated 15W USB A+C charger, featuring dark silver finish, safety shutters, and screw-type terminals for reliable charging and power distribution.
The Obria 2 gang BS 13A switched socket outlet with integrated USB A+C charger represents a modern solution for contemporary electrical installations. This dual-function device combines two standard British 13A switched socket outlets with a powerful 15W USB charging capability, allowing simultaneous connection and fast charging of multiple electronic devices. The product features a complete set design with screw-type terminals for secured and enhanced contact connections, ensuring reliable and durable performance.
Designed with modern aesthetics in mind, this switched socket outlet features a dark silver finish that seamlessly integrates with contemporary interior designs. The full plate design provides a sophisticated appearance while maintaining the robustness of the support frame. Safety is paramount, with the device fitted with safety shutters to maximize child protection. The quick and easy plate clipping system facilitates straightforward installation, making it suitable for both residential and commercial applications.

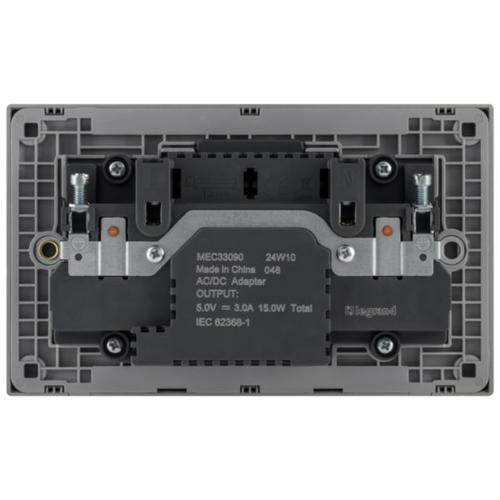

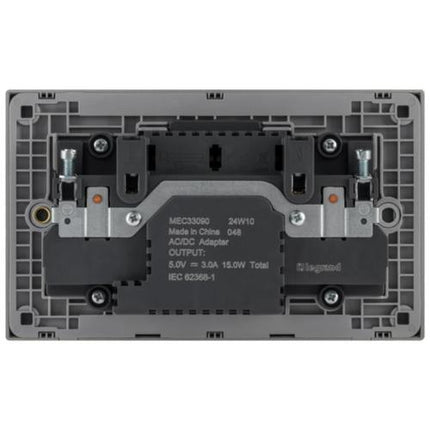

The device supports a maximum current rating of 3A for USB power supply, with dual USB ports (one USB-A and one USB-C) providing flexibility for charging various electronic devices. Operating at 250V with a frequency range of 50-60 Hz, this socket outlet is suitable for indoor use only. The terminal marking indication feature enables easy identification during installation, while the screw-type terminals accommodate flexible or rigid cables ranging from 1-4mm².
Key Features
- Dual switched 13A socket outlets with integrated 15W USB A+C charger for simultaneous charging
- Modern dark silver finish with full plate design for contemporary interior integration
- Safety shutters for maximum child protection and enhanced safety
- Quick and easy plate clipping system for straightforward installation
- Screw-type terminals for secured and enhanced electrical connections
- Supports 3A maximum USB power output with dual USB ports (USB-A and USB-C)
- Terminal marking indication for easy identification during installation
- Suitable for indoor use with IP20 protection rating and IK04 impact strength
Technical Specifications
| Specification |
Value |
| Brand | Legrand - Obria |
| Product Code | MEC33090SL |
| EAN | 3414972674027 |
| Type | 2 Gang BS 13A Switched Socket with USB Charger |
| Standard | British Standard (BS) |
| Nominal Current | 13 A |
| Nominal Voltage | 250 V |
| Frequency Range | 50-60 Hz |
| USB Output Power | 15 W |
| USB Ports | 1x USB-A + 1x USB-C |
| Maximum USB Current Rating | 3 A |
| Number of Socket Outlets | 2 (both switchable) |
| Number of Modules | 4 |
| Connection Type | Screw Type Terminals |
| Terminal Capacity | 1-4 mm² |
| Cable Type Compatible | Flexible or Rigid |
| Color | Dark Silver |
| Material | Thermoplastic |
| Device Width | 146 mm |
| Device Height | 87.4 mm |
| Device Depth | 33.9 mm |
| Built-in Depth | 21.9 mm |
| Minimum Installation Box Depth | 35 mm |
| Mounting Method | Flush-mounted with screw fastening |
| Protection Rating | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -5°C to +35°C |
| Storage Temperature Range | -10°C to +70°C |
| Voltage Type | AC |
| Protective Contact | Square |
| Assembly Arrangement | Basic element with full cover plate |
| With On/Off Switch | Yes |
| Switch Operator Color | Silver |
| Safety Feature | Safety shutters for child protection |
| Terminal Marking | Yes |
| Surface Finishing | Matt Lacquered |
| Halogen Free | No |
| Prewired | No |
| Smart Home Compatible | No (Apple HomeKit, Amazon Alexa, Google Assistant not supported) |
| Power Delivery | No |
| Recommended Use | Indoor use only |
