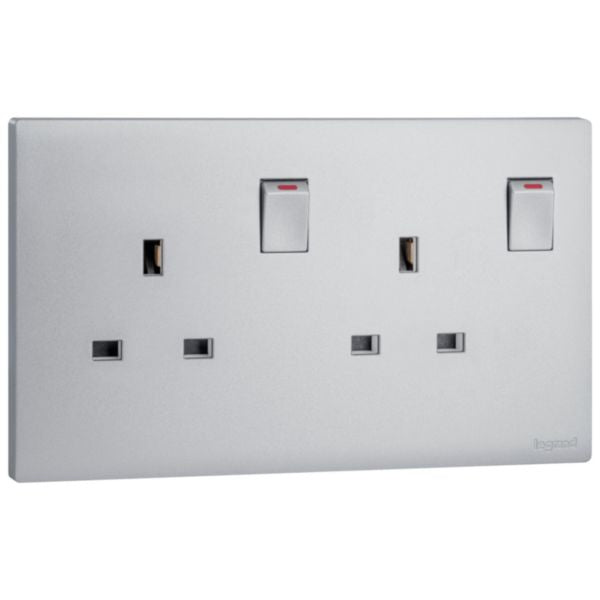

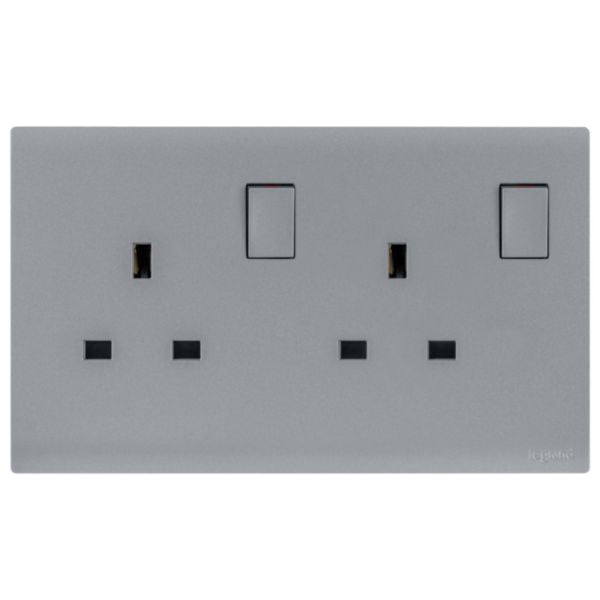

Shop Legrand Obria 2 Gang BS 13A Double Pole Switched Socket Dark Silver | MEC32040SL In Iraq Best Prices
Premium 2 gang double pole switched socket with 2 earth terminals, 13A 250V rating, safety shutters, and dark silver finish for modern home and commercial installations.
The Obria 2 Gang BS 13A Double Pole Switched Socket with 2 Earth Terminals in Dark Silver is a premium electrical socket designed for reliable power distribution in residential and commercial applications. This complete socket assembly features two 2P+E British Standard outlets rated at 13A and 250V, providing safe and convenient power access for multiple electrical devices simultaneously. The socket incorporates a modern full plate design with dark silver finish that seamlessly integrates into contemporary interior décor while maintaining robust functionality.
This double pole switched socket is engineered with screw-type terminals for enhanced electrical contacts and open terminal design for simplified installation. The device features safety shutters to maximize child protection and prevent accidental contact with live terminals. The quick and easy plate-rocker clipping system ensures rapid installation, while the thermoplastic material construction provides durability and long-term reliability. With an IP20 rating and IK04 impact strength, this socket meets stringent safety standards suitable for inside use in homes, offices, and commercial spaces.
The Obria range represents the perfect balance between technicity and robustness, offering a support frame that ensures stable electrical connections and consistent performance. The socket is designed for flush-mounted installation with a mounting depth of 20.2mm, making it compatible with standard electrical installation boxes. Terminal markings are clearly indicated for easy identification, and the device accommodates flexible or rigid cables with cross-sections ranging from 1-4mm². Operating temperature range of -5 to 35°C ensures reliable performance across various climate conditions.
Key Features
- 2 x 2P+E British Standard outlets rated 13A at 250V for reliable power distribution
- Double pole switching with concurrent neutral conductor switching for enhanced safety
- Safety shutters for maximum child protection and accident prevention
- Quick and easy plate-rocker clipping system for rapid installation

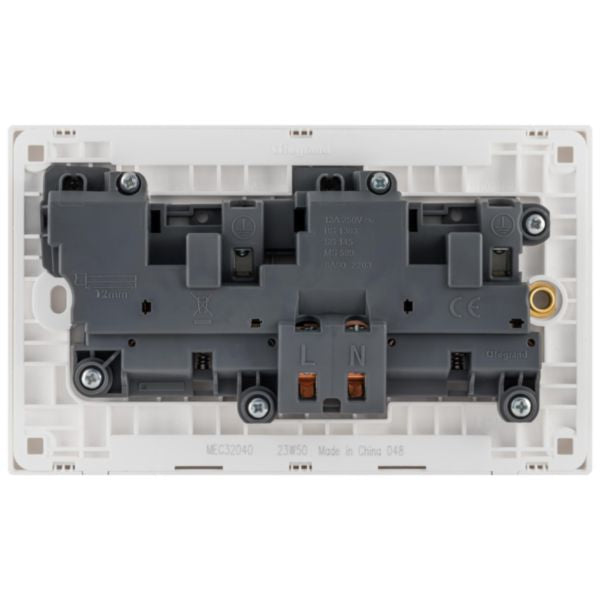

- Screw-type terminals with open design for enhanced contacts and simplified wiring
- Modern dark silver finish with full plate design for contemporary interior integration
- Technicity and robustness of support frame for stable electrical connections
- Flush-mounted installation compatible with standard electrical boxes
- IP20 rated for indoor use with IK04 impact strength protection
- Terminal markings for easy identification and proper cable connection
Technical Specifications
| Specification |
Value |
| Model | British Standard |
| Number of Socket Outlets | 2 x 2P+E |
| Rated Current | 13A |
| Rated Voltage | 250V AC |
| Frequency Range | 50-60 Hz |
| Double Pole Switching | Yes with concurrent neutral conductor |
| Protective Contact Type | Square |
| Safety Features | Safety shutters for child protection |
| Connection Type | Screwed terminal |
| Terminal Capacity | 1-4 mm² flexible or rigid cable |
| Cable Support | Screw cable clamp |
| Material | Thermoplastic |
| Colour | Dark Silver |
| Surface Finish | Matt lacquered |
| Assembly Arrangement | Basic element with full cover plate |
| Mounting Method | Flush-mounted |
| Type of Fastening | Mounting with screw |
| Device Width | 146 mm |
| Device Height | 87.4 mm |
| Device Depth | 30.6 mm |
| Built-in Depth | 20.2 mm |
| Minimum Installation Box Depth | 35 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -5°C to +35°C |
| Storage Temperature Range | -10°C to +70°C |
| Voltage Type | AC |
| Terminal Marking | Yes |
| Prewired | No |
| With On/Off Switch | Yes |
| Switch Operator Colour | Silver |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| With Miniature Fuse | No |
| Halogen Free | No |
| Product Reference | MEC32040SL |
| EAN Code | 3414972671972 |
| Brand | Legrand |
| Range | Obria |
| Recommended Use | Inside use only |
