Shop Legrand Obria 2 Gang 16A Multistandard Euro-US Switched Socket Champagne | MEC32054CH In Iraq Best Prices
Premium 2-gang multistandard switched socket combining Euro, US, Indian, Chinese and British standards with 16A capacity, safety shutters, and champagne finish for modern residential and commercial applications.

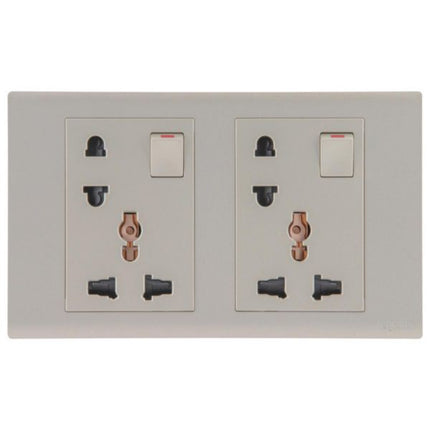

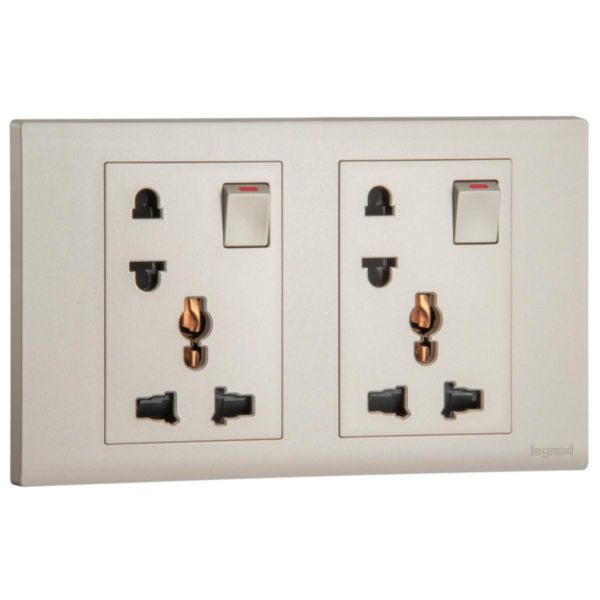

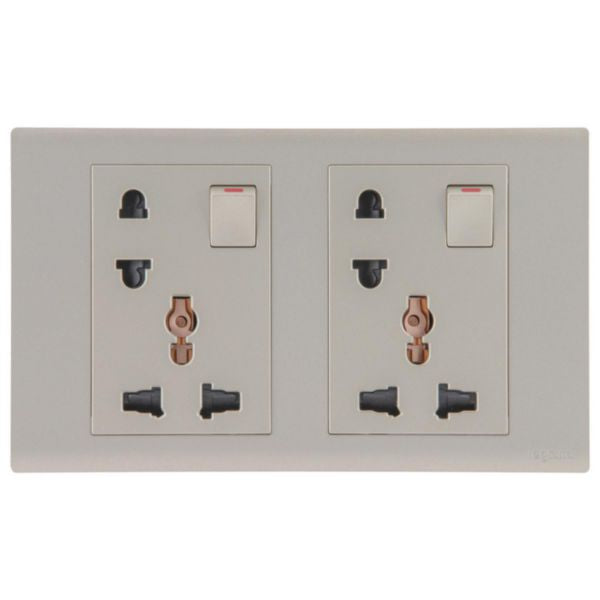

The Obria 2 Gang 16A Multistandard Euro-US Switched Socket in Champagne finish is a premium electrical outlet designed for modern homes and buildings. This innovative device combines two socket outlets in one elegant unit: a multistandard switched socket that supports Euro, US, Indian, Chinese, and British standards, paired with a switched Euro-US socket. Both outlets feature 16A, 250V capacity with concurrent neutral conductor switching for enhanced safety and functionality.
Crafted with thermoplastic material and featuring a champagne metallic finish, this socket outlet delivers both aesthetic appeal and robust performance. The device incorporates safety shutters to maximize child protection, making it ideal for family environments. The quick and easy plate-rocker clipping system ensures straightforward installation, while the screw-type terminals provide enhanced contact reliability and secure connections for flexible or rigid cables ranging from 1-4mm².
The Obria range is renowned for its technicity, robustness, and modern full-plate design that integrates seamlessly with contemporary interior décor. With an IP20 protection rating and IK04 impact resistance, this socket outlet withstands daily wear while maintaining superior electrical safety standards. The compact flush-mounted design fits standard installation boxes with a minimum depth of 35mm, making it compatible with most residential and commercial electrical installations.
Key Features
- Multistandard socket supporting Euro, US, Indian, Chinese and British electrical standards
- Dual switched socket outlets with 16A, 250V capacity and concurrent neutral conductor switching
- Safety shutters for enhanced child protection and electrical safety
- Quick and easy plate-rocker clipping system for straightforward installation
- Screw-type terminals providing enhanced contact protection and secure connections
- Champagne metallic finish with modern full-plate design for aesthetic integration
- Thermoplastic material construction with lacquered, matte surface finishing
- IP20 protection rating and IK04 impact resistance for durability
- Compatible with flexible or rigid cables from 1-4mm² cross-section
- Flush-mounted design suitable for standard installation boxes with 35mm minimum depth
Technical Specifications
| Specification |
Value |
| Product Model | Obria 2 Gang Multistandard Socket |
| Reference Number | MEC32054CH |
| EAN Code | 3414972672870 |
| Socket Configuration | 2P+E Multistandard 250V + 2P Euro-US 16A 250V |
| Number of Socket Outlets | 2 (one multistandard, one Euro-US) |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency Range | 50-60 Hz |
| Voltage Type | AC |
| Number of Modules | 3 |
| Connection Type | Screwed terminal |
| Terminal Capacity | 1-4 mm² |
| Cable Type | Flexible or rigid |
| Material | Thermoplastic |
| Colour | Champagne Gold |
| Surface Finishing | Lacquered, matte |
| Mounting Method | Flush-mounted |
| Type of Fastening | Mounting with screw |
| Device Width | 86 mm |
| Device Height | 87.4 mm |
| Device Depth | 38.7 mm |
| Built-in Depth | 27.8 mm |
| Minimum Installation Box Depth | 35 mm |
| Protection Rating (IP) | IP20 |
| Impact Strength Rating (IK) | IK04 |
| Operating Temperature Range | -5 to 35°C |
| Storage Temperature Range | -10 to 70°C |
| Safety Shutters | Yes |
| With On/Off Switch | Yes |
| Switchable Socket Outlets | 2 |
| Concurrent Neutral Conductor Switching | Yes |
| Eject Mechanism | Yes |
| Assembly Arrangement | Basic element with full cover plate |
| Halogen Free | No |
| Power Delivery | Yes |
| Terminal Marking Indication | Yes |
| Prewired | No |
| Recommended Use | Inside use only |
| Compatible with Smart Home Systems | No (Apple HomeKit, Amazon Alexa, Google Assistant not compatible) |
