Shop Legrand Obria 1 Gang Euro-US 16A Duplex Socket Champagne | MEC31049CH In Iraq Best Prices
Premium dual Euro-US socket with earth connection, 16A capacity, safety shutters, and elegant champagne finish for modern residential installations.

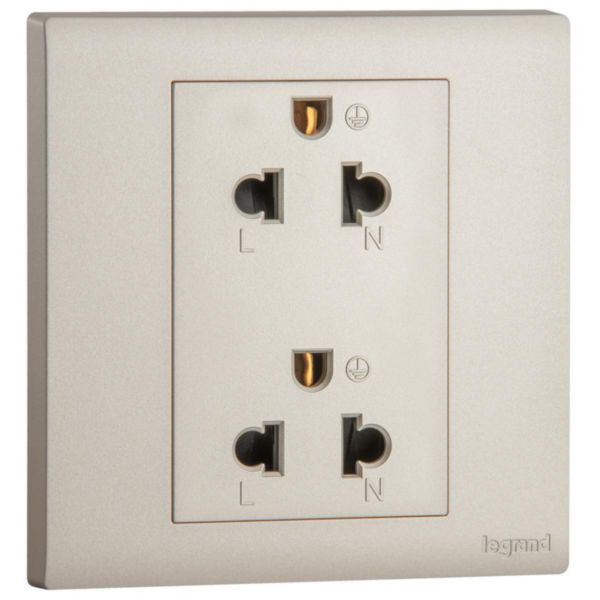

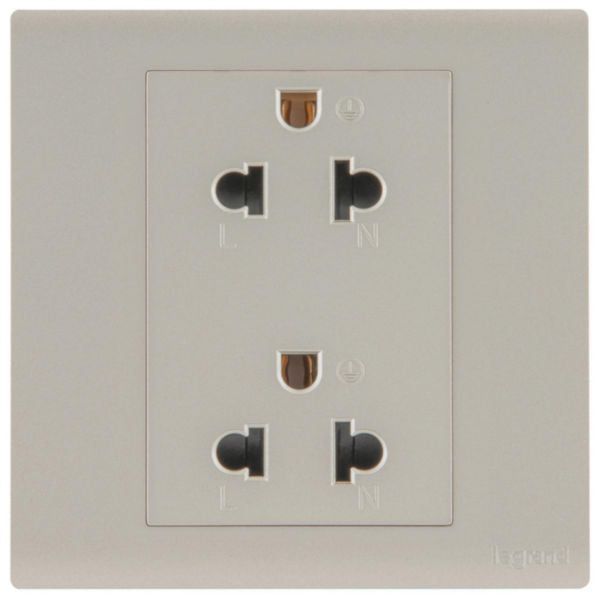

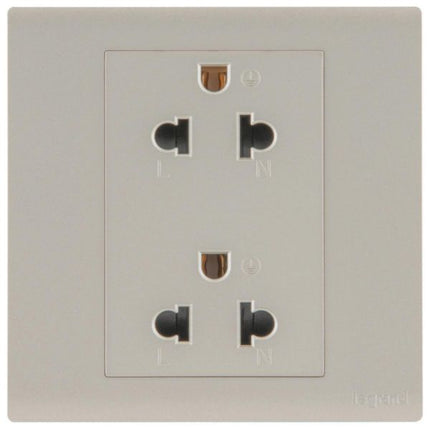

The Obria 1 gang Euro-US 16A Duplex 2 Poles + Earth socket in Champagne finish is a premium electrical outlet solution designed for modern homes and buildings. This dual socket allows simultaneous connection of two electrical devices to power supply with enhanced safety features. The socket features earth connection (2P+E configuration) for both outlets, providing comprehensive electrical protection. Each outlet is rated at 16A, 250V with 50-60Hz frequency compatibility, making it suitable for a wide range of household and commercial applications.
This duplex socket combines functionality with aesthetic appeal, featuring a modern full plate design that integrates seamlessly with contemporary interior décor. The champagne-colored finish provides an elegant appearance while maintaining the robustness of professional-grade electrical components. The socket is equipped with safety shutters to maximize child protection, an essential safety feature for residential installations. The quick and easy plate-rocker clipping system ensures straightforward installation, while screw-type terminals provide enhanced contact reliability and secure cable connections.
The Obria socket is constructed with high-quality thermoplastic material and features a lacquered, matt surface finish for durability and aesthetic appeal. With an IK04 degree of impact strength and IP20 protection rating, this socket is suitable for indoor use. The device dimensions of 86mm width x 87.4mm height x 36.6mm depth make it compatible with standard flush-mounted installation boxes with a minimum depth of 35mm. The socket supports flexible or rigid cables with a cross-section range of 1-4mm², accommodating various installation requirements.
Key Features
- Dual 2P+E Euro-US sockets with 16A, 250V rating for simultaneous two-device connection
- Safety shutters with eject mechanism for maximum child protection and enhanced security
- Quick and easy plate-rocker clipping system for straightforward installation
- Screw-type terminals with enhanced contact protection for secure and reliable connections
- Modern full plate design with champagne finish integrating seamlessly with contemporary décor
- Flush-mounted installation with standard mounting compatibility
- IK04 impact strength and IP20 protection rating for indoor residential use
- Thermoplastic construction with lacquered matt surface for durability and aesthetic appeal
Technical Specifications
| Specification |
Value |
| Product Type | Multi-standard Duplex Socket (Euro-US) |
| Socket Configuration | 2 x 2P+E (2 Poles + Earth) |
| Rated Current | 16 A |
| Rated Voltage | 250 V |
| Frequency | 50-60 Hz |
| Number of Active Contacts | Round: 2, Flat: 2, Square: 2 |
| Protective Contact Type | Round |
| Connection Type | Screw-type Terminals |
| Terminal Capacity | 1-4 mm² |
| Cable Type | Flexible or Rigid |
| Mounting Method | Flush-mounted with Screw Fastening |
| Assembly Arrangement | Basic Element with Full Cover Plate |
| Number of Modules | 3 |
| Device Width | 86 mm |
| Device Height | 87.4 mm |
| Device Depth | 36.6 mm |
| Built-in Depth | 28.2 mm |
| Minimum Installation Box Depth | 35 mm |
| Material | Thermoplastic |
| Surface Finish | Lacquered Matt |
| Color | Champagne (Gold) |
| Impact Strength Rating | IK04 |
| Protection Degree | IP20 |
| Operating Temperature Range | -5°C to +35°C |
| Storage Temperature Range | -10°C to +70°C |
| Voltage Type | AC (Alternating Current) |
| Safety Features | Safety Shutters with Eject Mechanism |
| Concurrently Switching Neutral | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Smart Home Compatible | No (Apple HomeKit, Amazon Alexa, Google Assistant not compatible) |
| Power Delivery | Yes |
| SKU/Reference | MEC31049CH |
| EAN Code | 3414972670562 |
| Brand | Legrand - Obria Range |
| Recommended Use | Indoor Residential Use Only |
Order Legrand Obria 1 Gang Euro-US 16A Duplex Socket Champagne | MEC31049CH at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
