Shop Legrand Obria 1 Gang BS 15A Unswitched Socket Dark Silver | MEC31043SL In Iraq Best Prices
Premium 1-gang British Standard 15A unswitched socket with dark silver finish, safety shutters, screw terminals, and modern design for reliable electrical power supply in residential applications.

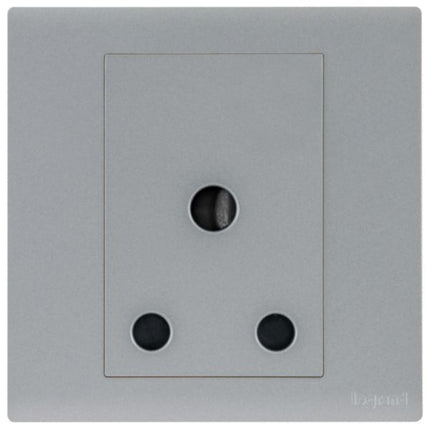

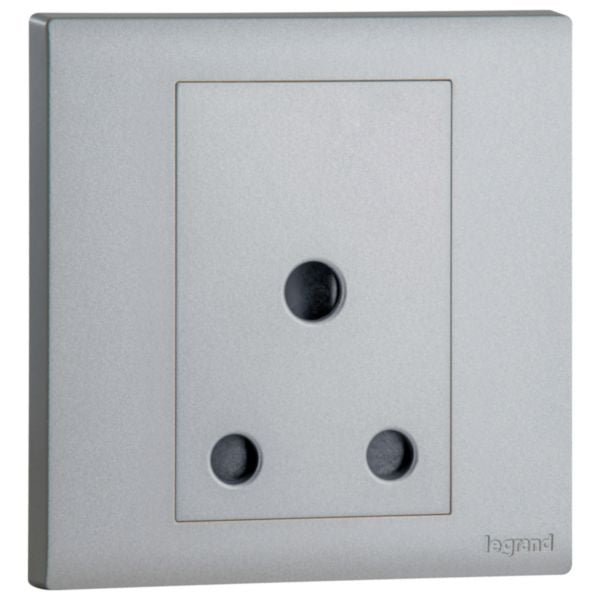

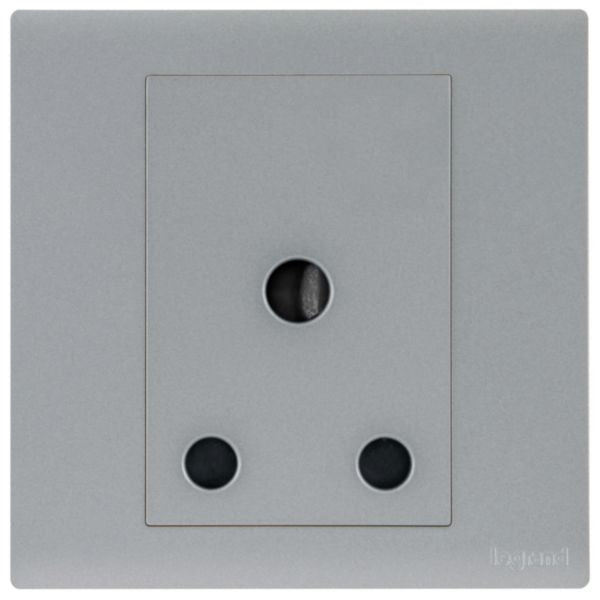

The Obria 1 Gang BS 15A Unswitched Socket in Dark Silver is a premium electrical outlet designed for reliable power supply to electronic and electrical devices. This British Standard compliant socket features a modern full plate design that seamlessly integrates with contemporary interior décor. The socket is equipped with safety shutters to maximize child protection and comes with screw-type terminals for enhanced contacts, ensuring secure and reliable electrical connections.
This flush-mounted socket outlet is constructed from high-quality thermoplastic material with a lacquered, matt finish in dark silver color. It features an eject mechanism for convenient plug removal and is rated for 15A at 250V with 50-60Hz frequency compatibility. The socket includes 2P+E (two poles plus earth) configuration with a round protective contact, providing comprehensive electrical safety. The mounting system utilizes screw-type fastening with a built-in depth of 23.4mm, making it compatible with standard installation boxes requiring a minimum depth of 35mm.
The product combines technicity and robustness with its durable support frame, offering both functional excellence and aesthetic appeal. With dimensions of 86mm width, 87.4mm height, and 31.6mm depth, this socket is designed to fit standard British electrical installations. The terminal marking indication and cable support system with screw cable clamps ensure easy installation and proper electrical connections. Operating temperature range of -5 to 35°C makes it suitable for various indoor environments, while the IP20 protection rating and IK04 impact strength rating ensure durability and safety in typical domestic applications.
Key Features
- British Standard 2P+E 15A 250V electrical socket with round protective contact
- Safety shutters for maximum child protection and electrical safety
- Screw-type terminals for enhanced contacts and secure connections
- Modern full plate design with dark silver lacquered matt finish for aesthetic integration
- Quick and easy plate-rocker clipping system for convenient installation
- Eject mechanism for simple and convenient plug removal
- Flush-mounted installation with 23.4mm built-in depth
- Thermoplastic construction with robust support frame for durability
- IP20 protection rating and IK04 impact strength rating
- Operating temperature range -5 to 35°C for various indoor environments
Technical Specifications
| Specification |
Value |
| Product Model | British Standard Socket |
| Rated Current | 15 Amperes |
| Rated Voltage | 250 Volts AC |
| Frequency | 50-60 Hz |
| Configuration | 2P+E (Two Poles + Earth) |
| Protective Contact | Round |
| Number of Modules | 2 |

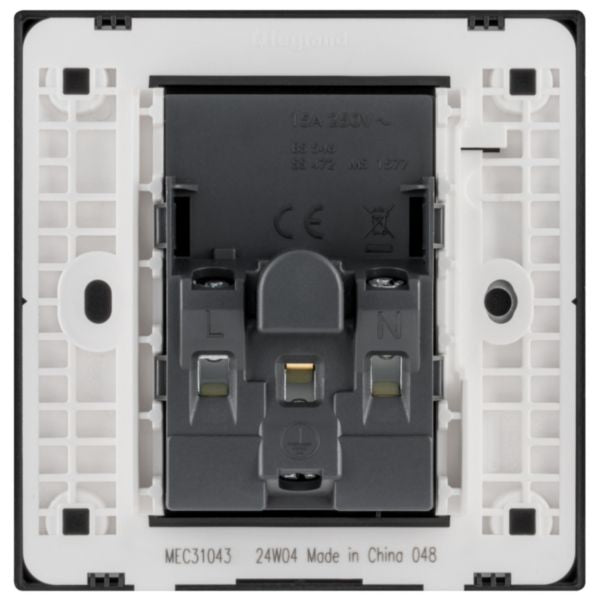

| Connection Type | Screwed Terminal |
| Terminal Capacity | 1-4 mm² |
| Cable Support | Screw Cable Clamp |
| Material | Thermoplastic |
| Surface Finish | Lacquered Matt |
| Color | Dark Silver |
| Width | 86 mm |
| Height | 87.4 mm |
| Depth | 31.6 mm |
| Built-in Depth | 23.4 mm |
| Minimum Installation Box Depth | 35 mm |
| Mounting Method | Flush-mounted |
| Fastening Type | Mounting with Screw |
| IP Protection Rating | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature | -5 to 35°C |
| Storage Temperature | -10 to 70°C |
| Eject Mechanism | Yes |
| Safety Shutters | Yes |
| Power Delivery | Yes |
| Halogen Free | No |
| Smart Home Compatible | No (Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant) |
| Reference Number | MEC31043SL |
| EAN Code | 3414972670357 |
Order Legrand Obria 1 Gang BS 15A Unswitched Socket Dark Silver | MEC31043SL at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
