Shop Legrand Obria 1 Gang BS 13A Double Pole Switched Socket Dark Silver | MEC32039SL In Iraq Best Prices
Premium British Standard 13A double pole switched socket with 2 earth terminals, safety shutters, and modern Dark Silver finish for safe residential and commercial power supply applications.

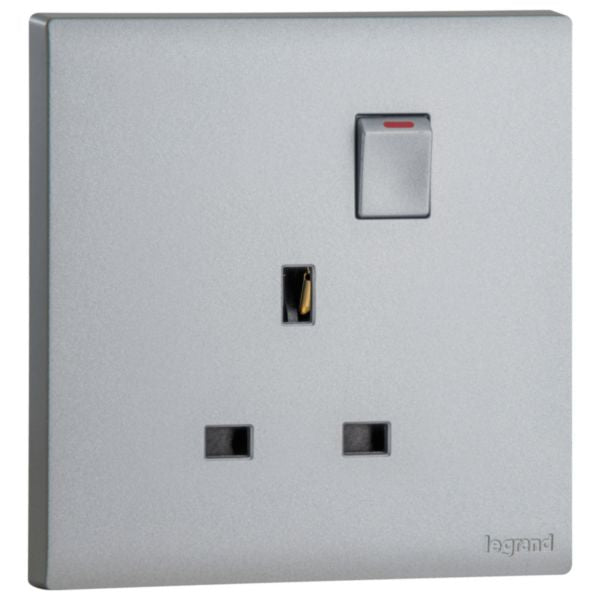

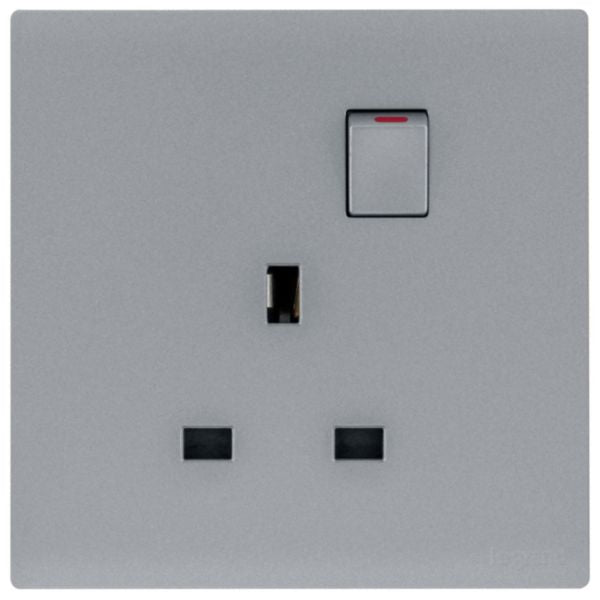

The Obria 1 gang BS 13A Double Pole Switched Socket with 2 Earth Terminal in Dark Silver is a premium electrical socket designed for modern home and building installations. This double pole switched socket allows the safe supply of power to electrical devices with enhanced safety features including 2 earth terminals for optimal grounding protection. The socket features a quick and easy plate-rocker clipping system for straightforward installation, combined with safety shutters to maximize child protection. With its technicity and robustness of the support frame, this socket integrates seamlessly into any modern décor with its full plate design.

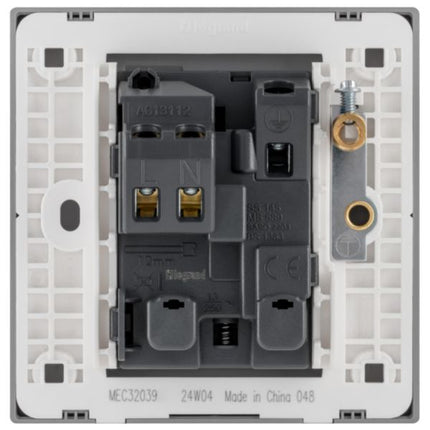

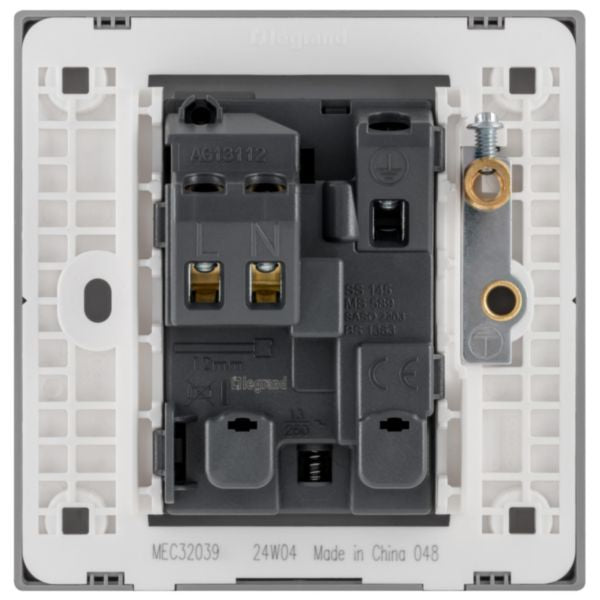

The socket is constructed with screw type terminals for enhanced contacts and an open terminal design for easy installation. It operates at 250V with a nominal current of 13A, suitable for 50-60 Hz frequency applications. The Dark Silver finish provides a contemporary aesthetic while maintaining durability with its lacquered, matt surface protection. Designed for flush-mounted installation with a minimum built-in depth of 35mm, this socket meets British Standard specifications and includes terminal marking indication for safe wiring.
This product is recommended for inside use only and comes as a complete set under one catalog number (REF. MEC32039SL, EAN 3414972671828). The socket features an IP20 degree of protection and IK04 impact strength rating, making it suitable for residential and small commercial applications. With compatible cable sections of 1-4mm², it accommodates both flexible and rigid cable types, providing versatility for various installation requirements.
Key Features
- Double pole switched socket with 2 earth terminals for enhanced grounding protection
- Safety shutters integrated for maximum child protection and safety
- Quick and easy plate-rocker clipping system for straightforward installation
- Screw type terminals with enhanced contacts and open terminal design
- Modern Dark Silver lacquered finish with full plate design for contemporary aesthetics
- British Standard 13A 250V rated for 50-60 Hz frequency
- Flush-mounted installation with minimum 35mm built-in depth
- IP20 degree of protection with IK04 impact strength rating
- Compatible with flexible and rigid cables 1-4mm²
- Terminal marking indication for safe and accurate wiring
Technical Specifications
| Specification |
Value |
| Product Type | Double Pole Switched Socket with Earth Terminal |
| Standard | British Standard (BS 13A) |
| Nominal Voltage | 250V AC |
| Nominal Current | 13A |
| Frequency | 50-60 Hz |
| Number of Modules | 2 modules |
| Connection Type | Screwed terminal |
| Cable Capacity | 1-4 mm² |
| Cable Types | Flexible or rigid |
| Protection Degree (IP) | IP20 |
| Impact Strength (IK) | IK04 |
| Device Width | 86 mm |
| Device Height | 87.4 mm |
| Device Depth | 33.5 mm |
| Minimum Built-in Depth | 35 mm |
| Built-in Depth | 22.7 mm |
| Mounting Method | Flush-mounted |
| Type of Fastening | Mounting with screw |
| Material | Thermoplastic |
| Colour | Dark Silver |
| Surface Finishing | Matt lacquered |
| With On/Off Switch | Yes |
| Switch Operator Colour | Silver |
| Protective Contact | Square |
| Safety Shutters | Yes |
| Earth Terminals | 2 |
| Operating Temperature Range | -5 to 35°C |
| Storage Temperature Range | -10 to 70°C |
| Voltage Type | AC |
| Terminal Marking | Yes |
| Halogen Free | No |
| Antimicrobial Treatment | No |
| Smart Home Compatible | No (Apple HomeKit, Amazon Alexa, Google Assistant not compatible) |
| Prewired | No |
| Batteries/Accumulator | No |
| Reference Number | MEC32039SL |
| EAN Code | 3414972671828 |
| Recommended Use | Inside use only |
