Heavy-duty 45A double-pole switch with red LED indicator, matt white finish, and British Standards compliance for reliable electrical control

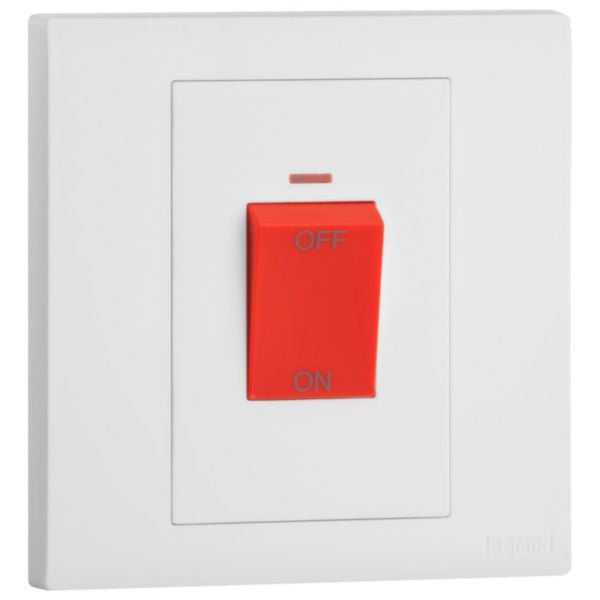

The Obria 1 Gang 1W 45A DP Switch with Red LED Indicator in Matt White finish is a premium electrical switch designed for heavy-duty applications requiring reliable power control. This double-pole switch allows you to control the power supply to a 45A electrical device with precision and safety. The distinctive red LED indicator provides visual confirmation of the switch status, while the red switch operator offers excellent visibility in any lighting condition. Built with a modern full plate design that integrates seamlessly with contemporary interior décor, this switch combines aesthetic appeal with robust functionality.

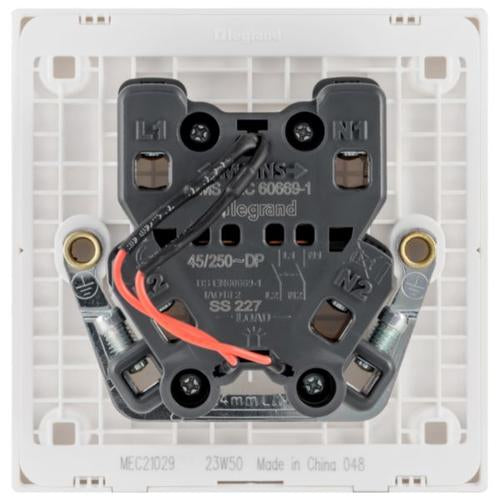

Featuring screw-type terminals for enhanced electrical contacts and an open terminal design for easy installation, this Obria switch is engineered for professional and residential applications. The flush-mounted installation method ensures a clean, integrated appearance on any wall surface. With a nominal voltage rating of 250V and rated current of 45A, this switch handles demanding electrical loads effortlessly. The thermoplastic material construction ensures durability and longevity, while the matt white finish provides a sophisticated, contemporary look that complements any interior design scheme.
This switch complies with British Standards certifications for heavy loads, making it an ideal choice for applications requiring dependable performance and safety. The quick and easy plate-rocker clipping system simplifies installation, while the robust support frame demonstrates the technicity and quality that Legrand products are known for. Whether you're upgrading your home electrical system or installing new circuits in a commercial space, the Obria 1 Gang 1W 45A DP Switch delivers reliable performance and stylish appearance.
Key Features
- 45A rated current capacity for heavy electrical loads
- Double-pole configuration for enhanced control and safety
- Red LED indicator for visual status confirmation
- Quick and easy plate-rocker clipping system for simplified installation
- Complies with British Standards certifications for heavy loads
- Screw-type terminals for superior electrical contacts
- Matt white finish with modern full plate design
- Thermoplastic material construction for durability
- Flush-mounted installation for clean, integrated appearance
- 250V nominal voltage rating for standard residential and commercial applications
Technical Specifications
| Specification |
Value |
| Product Type | Double-Pole Switch |
| Rated Current | 45 Amperes |
| Nominal Voltage | 250 Volts AC |
| Frequency | 50-60 Hz |
| Mounting Method | Flush-mounted |
| Fastening Type | Screw mounting |
| Material | Thermoplastic |
| Surface Finish | Matt White |
| Color | White (RAL 9003) |
| Switch Operator Color | Red |
| Lighting | LED Illuminated (on) |
| LED Type | LED Exchangeable |
| Device Width | 86 mm |
| Device Height | 87.4 mm |
| Device Depth | 33.9 mm |
| Built-in Depth | 21.8 mm |
| Minimum Installation Box Depth | 35 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Connection Type | Screwed Terminal |
| Terminal Capacity | 1-10 mm² |
| Cable Nature | Flexible or Rigid |
| Cable Section | 1-10 mm² |
| Operating Temperature Range | -5 to 35°C |
| Storage Temperature Range | -10 to 70°C |
| Number of Modules | 2 |
| Number of Rockers | 1 |
| Monitoring Contact | Yes |
| Halogen Free | No |
| Antimicrobial Treatment | No |
| British Standards Compliance | Yes |
| SKU/Reference | MEC21029WH |
| EAN Code | 3414972667715 |
| Brand | Legrand |
| Range | Obria |
