Shop Legrand Obria 1-Gang Double Pole Switch 45A with Red LED Matt Black | MEC21028BL In Iraq Best Prices
Premium 45A double pole switch with red LED indicator and matt black finish. Features screw terminals, British Standards compliance, and modern flush-mounted design for heavy-load electrical applications.

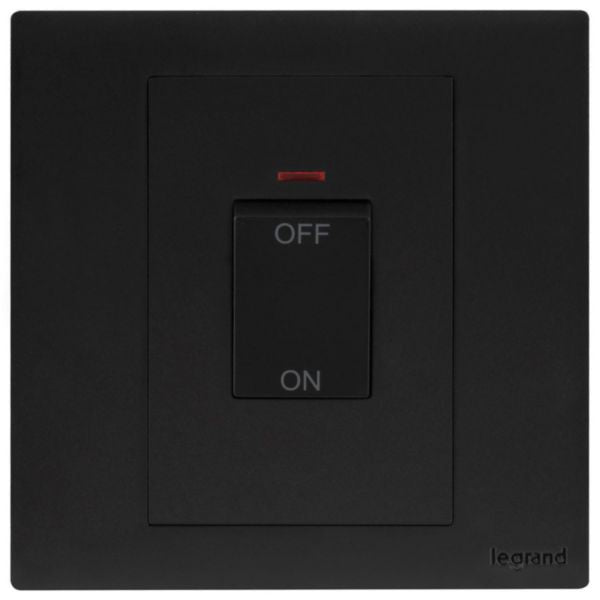

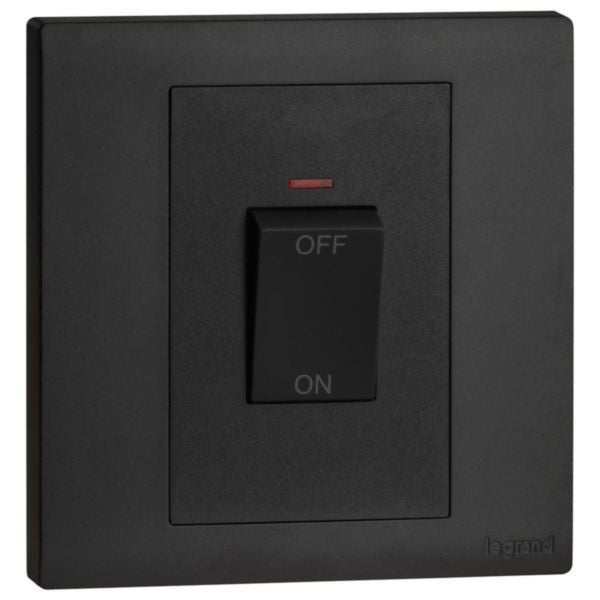

The Obria 1 Gang 1W 45A Double Pole Switch with Red LED Indicator in Matt Black finish is a premium electrical switch designed for controlling high-capacity power supplies up to 45A. This robust switch features a modern full plate design that integrates seamlessly with contemporary interior décor while maintaining exceptional durability and functionality. The illuminated red LED indicator provides clear visual feedback when the switch is in the ON position, making it easy to identify the power status at a glance.
This switch is engineered to comply with British Standards certifications for heavy loads and is constructed with screw-type terminals that ensure enhanced electrical contacts and simplified installation. The thermoplastic material with matt black finish offers a sophisticated aesthetic while providing excellent impact resistance rated at IK04. The flush-mounted design accommodates standard installation boxes with a minimum depth of 35mm, making it compatible with most residential and commercial electrical systems.
The Obria series represents the pinnacle of technical excellence and robustness, featuring a support frame that combines modern design principles with reliable engineering. With its 250V nominal voltage rating and rated current of 45A, this double pole switch is ideal for controlling washing machines, water heaters, electric ovens, and other high-power electrical appliances. The quick and easy plate-rocker clipping system ensures rapid installation, while the screw mounting terminals accommodate cable sections from 1-10mm², providing versatility for various wiring configurations.
Key Features
- 45A double pole switch rated for heavy electrical loads and high-capacity applications
- Illuminated red LED indicator provides clear visual feedback of ON position status
- Screw-type terminals ensure enhanced electrical contacts and simplified installation
- Modern matt black finish with full plate design for contemporary aesthetic integration
- British Standards certified for safety and reliability in residential and commercial use
- Quick and easy plate-rocker clipping system enables rapid installation
- Impact resistance rated IK04 with thermoplastic construction for durability
- 250V nominal voltage with flexible cable accommodation from 1-10mm² sections
Technical Specifications
| Specification |
Value |
| Product Type | Double Pole Switch (2-pole) |
| Rated Current | 45A |
| Nominal Voltage | 250V AC |
| Frequency Range | 50-60 Hz |
| Number of Modules | 2 modules |
| Number of Rockers | 1 rocker |
| Method of Operation | Rocker/button |
| Mounting Method | Flush-mounted |
| Type of Fastening | Screw mounting |
| Material | Thermoplastic |
| Surface Finish | Matt |
| Color | Black |
| Lighting Function | Illuminated (on) with LED exchangeable |
| LED Indicator Color | Red |
| Degree of Protection (IP) | IP20 |
| Impact Strength (IK) | IK04 |

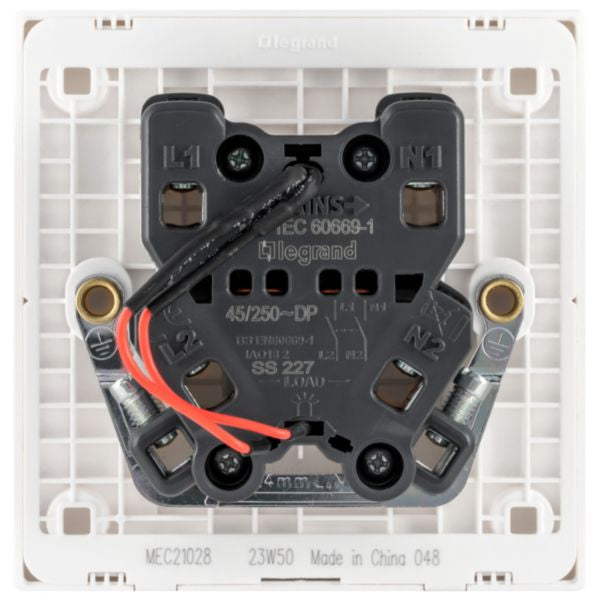

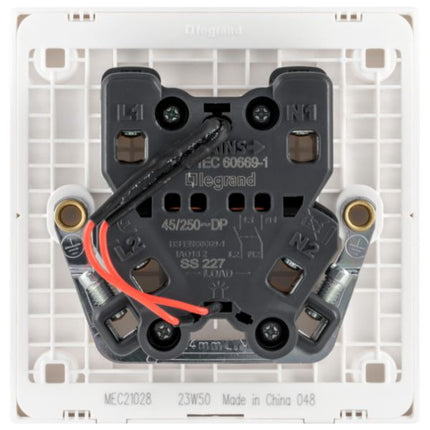

| Connection Type | Screwed terminal |
| Cable Section Range | 1-10 mm² |
| Device Width | 86 mm |
| Device Height | 87.4 mm |
| Device Depth | 33.9 mm |
| Built-in Depth | 21.8 mm |
| Minimum Installation Box Depth | 35 mm |
| Operating Temperature Range | -5 to 35°C |
| Storage Temperature Range | -10 to 70°C |
| Halogen Free | No |
| Antimicrobial Treatment | No |
| Monitoring Contact | Yes |
| Mandatory Neutral | Yes |
| Standards Compliance | British Standards for heavy loads |
Order Legrand Obria 1-Gang Double Pole Switch 45A with Red LED Matt Black | MEC21028BL at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
