Shop Legrand Obria 1 Gang 2X2P 16A Euro-US Socket Matt Black | MEC31047BL In Iraq Best Prices
Premium multi-standard Euro-US socket with 16A capacity, safety shutters, and modern matt black finish for secure and versatile electrical connections.

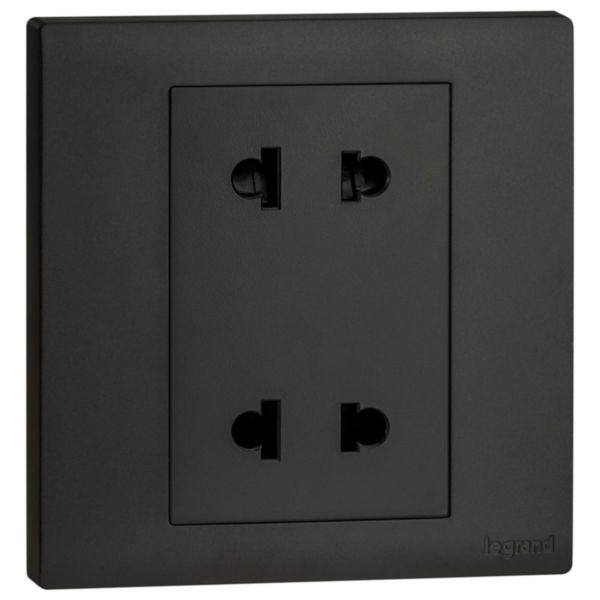

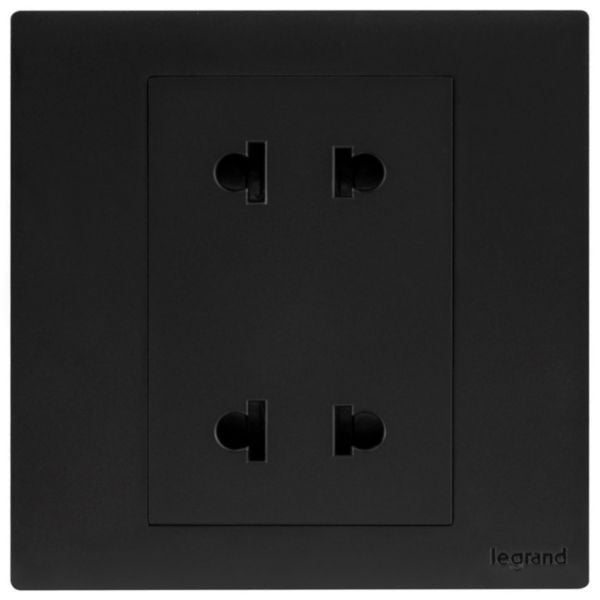

The Obria 1 Gang 2X2P 16A Euro-US Socket in Matt Black is a premium multi-standard electrical socket designed for modern homes and commercial spaces. This versatile socket allows the connection of electrical devices to power using either Euro or US standards, making it ideal for international use and flexibility. The socket features screw-type terminals for enhanced contacts and an open terminal design for easy installation, ensuring reliable and secure electrical connections. With a nominal current rating of 16A at 250V for Euro standard and 15A at 127V for US standard, this socket provides ample power capacity for most household and office devices.
The Obria socket is engineered with advanced safety features including integrated safety shutters to maximize child protection, preventing accidental contact with electrical components. The quick and easy plate-rocker clipping system enables rapid installation without requiring specialized tools. The matt black finish provides a sophisticated, modern aesthetic that seamlessly integrates with contemporary interior designs. The socket features a thermoplastic plastic construction with robust dimensions (86mm width x 87.4mm height x 36.1mm depth), ensuring durability and longevity in demanding environments.
This socket is rated IP20 for degree of protection and IK04 for impact strength, making it suitable for standard indoor applications. The product comes as a complete set under reference number MEC31047BL with EAN 3414972670418. Operating temperature range is -5°C to 35°C, with storage capabilities from -10°C to 70°C. The socket accommodates cable sections from 1-4mm² with flexible or rigid cable support, making it compatible with various electrical installations and configurations.
Key Features
- Multi-standard socket compatible with both Euro and US electrical standards
- Safety shutters for maximum child protection and accident prevention
- Screw-type terminals with enhanced contact quality for reliable connections
- Quick and easy plate-rocker clipping system for rapid installation
- Modern matt black finish that integrates seamlessly with contemporary interiors
- Robust thermoplastic construction rated IP20 and IK04 for durability
- Complete set with full cover plate and 3-module assembly arrangement
- Flexible cable support accommodating 1-4mm² cable sections
Technical Specifications
| Specification |
Value |
| Product Type | Multi-standard Socket (Euro/US) |
| Model | Obria 1 Gang 2X2P 16A Euro-US Socket |
| Reference Number | MEC31047BL |
| EAN Code | 3414972670418 |
| Nominal Current | 16A (Euro) / 15A (US) |
| Nominal Voltage | 250V (Euro) / 127V (US) |
| Frequency | 50-60 Hz |
| Number of Active Contacts | 2 Round, 2 Flat, 2 Square |

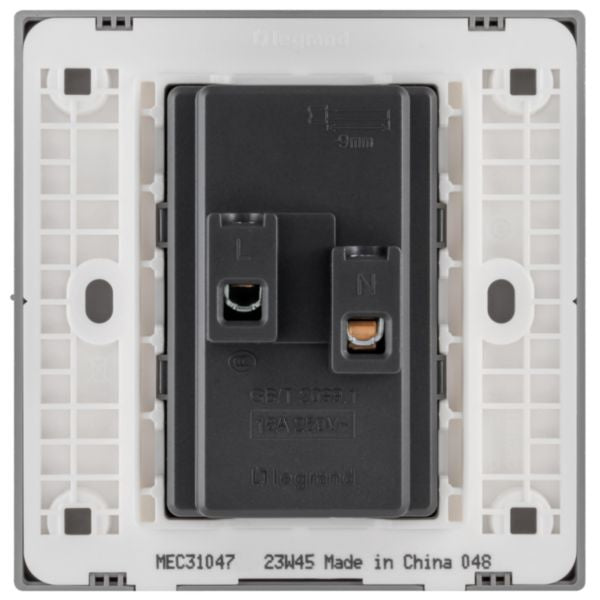

| Connection Type | Screwed Terminal |
| Cable Section | 1-4 mm² |
| Cable Support | Screw Cable Clamp |
| Material | Thermoplastic |
| Colour | Matt Black |
| Device Width | 86 mm |
| Device Height | 87.4 mm |
| Device Depth | 36.1 mm |
| Built-in Depth | 27.8 mm |
| Minimum Installation Box Depth | 35 mm |
| Mounting Method | Flush-mounted |
| Type of Fastening | Mounting with Screw |
| Assembly Arrangement | Basic Element with Full Cover Plate |
| Number of Modules | 3 Module System |
| Protection Degree (IP) | IP20 |
| Impact Strength (IK) | IK04 |
| Operating Temperature Range | -5°C to 35°C |
| Storage Temperature Range | -10°C to 70°C |
| Voltage Type | AC |
| Protective Contact | None |
| With Hinged Lid | No |
| With Enhanced Contact Protection | No |
| Eject Mechanism | Yes |
| Lockable | No |
| Safety Shutters | Yes |
| Power Delivery | Yes |
| Terminal Marking Indication | Yes |
| Prewired | No |
| Halogen Free | No |
| Antimicrobial Treatment | No |
| Brand | Legrand |
| Product Line | Obria |
| Recommended Use | Inside Use Only |
