Shop Legrand Obria 1 Gang 2X2P 16A Euro-US Socket Dark Silver | MEC31047SL In Iraq Best Prices
Multi-standard 1 gang socket supporting both Euro and US electrical standards with 16A capacity, featuring safety shutters, modern Dark Silver design, and easy screw terminal installation for residential and commercial applications.

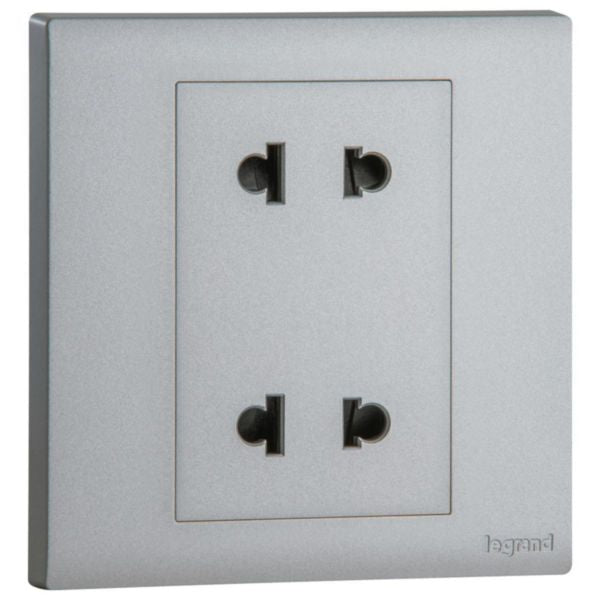

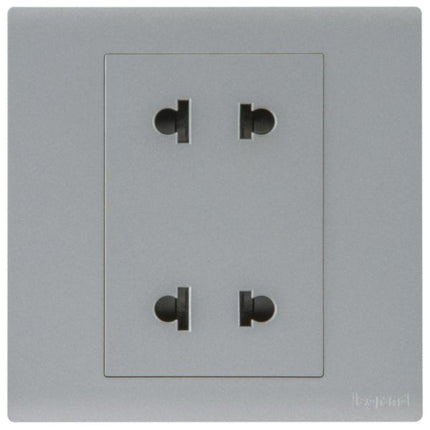

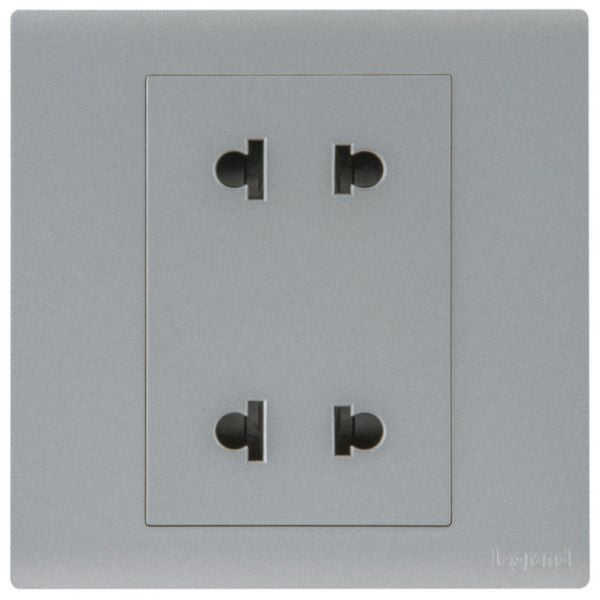

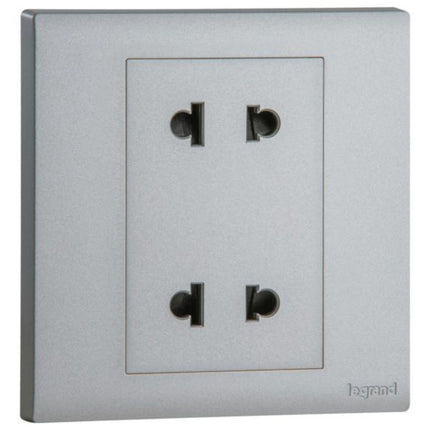

The Obria 1 Gang 2X2P 16A Euro-US Socket in Dark Silver is a versatile dual-standard electrical socket designed to accommodate both European and US power standards seamlessly. This multi-standard socket allows the connection of electrical devices to power either Euro or US standards, making it ideal for international use and adaptable environments. With a nominal current rating of 16A at 250V for Euro standard and 15A at 127V for US standard, this socket provides reliable power distribution across different electrical systems.
Featuring a modern full plate design with Dark Silver finish, this socket integrates perfectly into contemporary interior décor while maintaining robust functionality. The socket comes as a complete set under one catalog number (MEC31047SL) and includes safety shutters to maximize child protection. The quick and easy plate-rocker clipping system ensures effortless installation, while screw-type terminals with an open design facilitate simple and secure cable connections. The device measures 86mm in width, 87.4mm in height, and 36.1mm in depth, fitting standard flush-mounted installation boxes with a minimum depth of 35mm.
The Obria socket is constructed from high-quality thermoplastic material with lacquered matt surface finishing, ensuring durability and aesthetic appeal. It offers an IP20 degree of protection and IK04 impact strength rating, suitable for indoor use in residential and commercial applications. Operating within a temperature range of -5°C to 35°C, this socket maintains reliable performance across varying environmental conditions. With its technicity, robustness of support frame, and modern design, the Obria 1 Gang 2X2P 16A Euro-US Socket represents an excellent choice for flexible power connectivity needs.
Key Features
- Dual-standard compatibility supporting both Euro (10A, 250V) and US (15A, 127V) electrical systems
- Safety shutters for enhanced child protection and secure operation
- Quick and easy plate-rocker clipping system for effortless installation

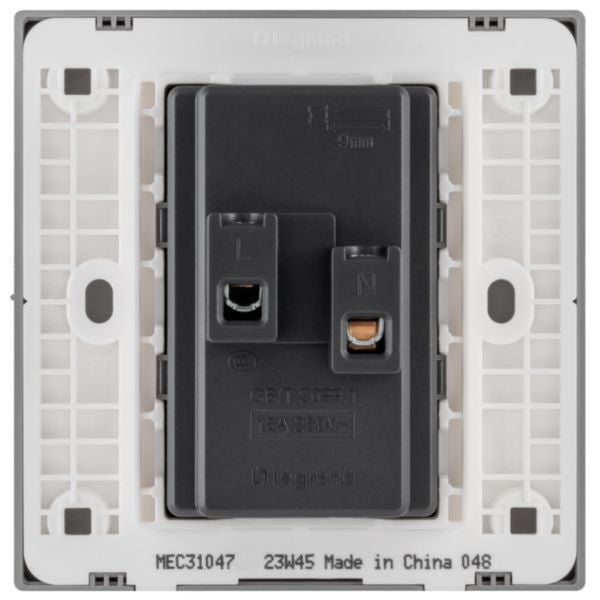

- Screw-type terminals with open design for simple and secure cable connections
- Modern full plate design in Dark Silver finish for contemporary aesthetic integration
- Complete set solution under single catalog number for convenient procurement
- IP20 protection degree and IK04 impact strength for reliable indoor performance
- Operating temperature range -5°C to 35°C for consistent functionality
Technical Specifications
| Specification |
Value |
| Product Model | Multi-standard socket (Euro/US) |
| Reference Number | MEC31047SL |
| EAN Code | 3414972670470 |
| Nominal Current | 16A (Euro), 15A (US) |
| Nominal Voltage | 250V (Euro), 127V (US) |
| Frequency | 50-60 Hz |
| Number of Active Contacts | 2 round, 2 flat, 2 square |
| Connection Type | Screwed terminal |
| Assembly Arrangement | Basic element with full cover plate |
| Number of Modules | 3 module system |
| Device Width | 86 mm |
| Device Height | 87.4 mm |
| Device Depth | 36.1 mm |
| Built-in Depth | 27.8 mm |
| Minimum Installation Box Depth | 35 mm |
| Material | Thermoplastic |
| Colour | Dark Silver |
| Surface Finishing | Lacquered Matt |
| Protection Degree (IP) | IP20 |
| Impact Strength (IK) | IK04 |
| Operating Temperature Range | -5°C to 35°C |
| Storage Temperature Range | -10°C to 70°C |
| Cable Section Capacity | 1-4 mm² |
| Cable Support | Screw cable clamp |
| Mounting Method | Flush-mounted |
| Type of Fastening | Mounting with screw |
| Voltage Type | AC |
| Power Delivery | Yes |
| Eject Mechanism | Yes |
| Safety Shutters | Yes |
| Terminal Marking | Yes |
| Halogen Free | No |
| Smart Home Compatible | No (Apple HomeKit, Amazon Alexa, Google Assistant not compatible) |
| Recommended Use | Indoor use only |
