Shop Legrand Obria 1-Gang Double Pole Switch 20A with LED Indicator Champagne | MEC21024CH In Iraq Best Prices
Premium 20A double pole switch with LED indicator and earth connection for high-load appliances. Features screw terminals, champagne finish, and British Standards compliance for reliable power control.

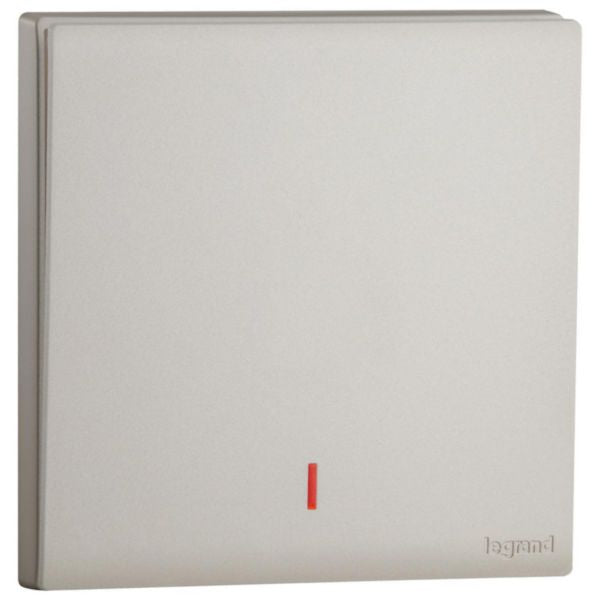

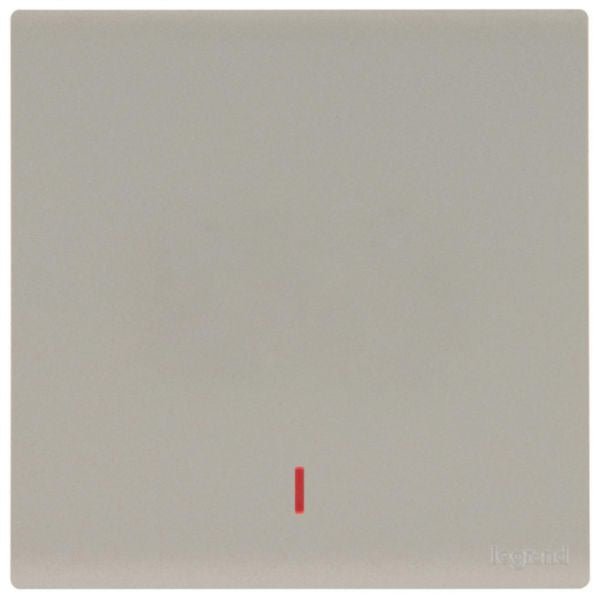

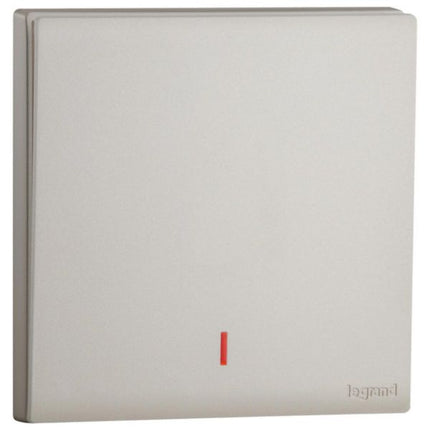

The Obria 1 Gang 1W 20A Double Pole Switch with LED Indicator and Earth Connection in Champagne finish is a premium electrical switch designed for controlling high-load appliances. This robust switch is specifically engineered to manage the power supply to electrical devices such as refrigerators, water heaters, central heating boilers, and other fixed appliances that require 20A capacity. The switch features an integrated LED indicator that illuminates when the switch is in the ON position, providing visual confirmation of power status.

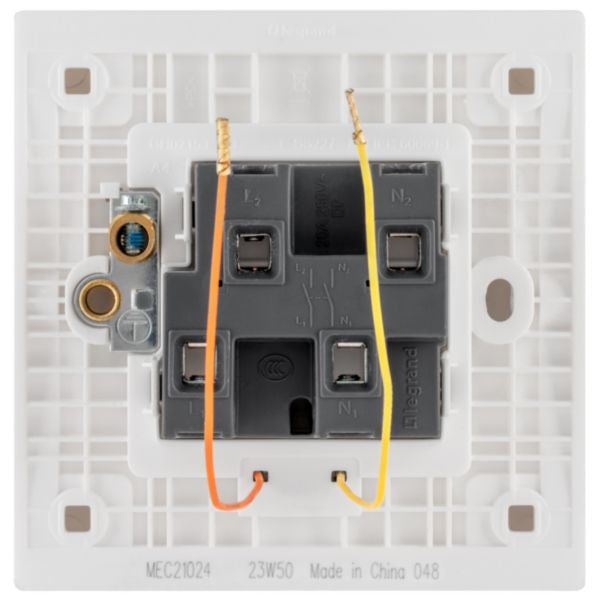

This switch combines modern design with exceptional functionality, featuring a thermoplastic construction with a lacquered matt finish in champagne color. The device incorporates screw-type terminals for enhanced contact reliability and includes an open terminal design for easy installation. With a 250V nominal voltage rating and 20A rated current, it meets British Standards certifications for heavy-load applications. The switch is designed for flush-mounted installation with a built-in depth of 19.7mm, making it compatible with standard electrical installation boxes.
The Obria range is known for its technicity and robustness, offering a modern full-plate design that integrates seamlessly with contemporary interior decoration. The switch operates across a wide temperature range (-5 to 35°C) and supports both rigid and flexible cable connections from 1-4mm². The earth connection feature provides enhanced safety for fixed appliances, while the monitoring contact ensures reliable operation. This is an ideal solution for residential and commercial applications requiring a dependable, aesthetically pleasing switch for high-power applications.
Key Features
- 20A rated current capacity for high-power appliances control
- Double pole switching for enhanced safety and reliability
- Integrated LED indicator illuminates when switch is ON
- Earth connection for improved safety with fixed appliances
- Screw-type terminals for secure and enhanced contact reliability
- Champagne finish with modern full-plate design for aesthetic integration
- British Standards certified for heavy-load applications
- Flush-mounted installation compatible with standard electrical boxes
- Wide operating temperature range from -5°C to 35°C
- Supports both rigid and flexible cable connections 1-4mm²
Technical Specifications
| Specification |
Value |
| Product Reference | MEC21024CH |
| EAN Code | 3414972667111 |
| Wiring System | Switch 2-pole |
| Rated Current | 20A |
| Nominal Voltage | 250V |
| Frequency | 50-60 Hz |
| Method of Operation | Rocker/button |
| Assembly Arrangement | Basic element with housing top |
| Number of Rockers | 1 |
| Mounting Method | Flush-mounted |
| Type of Fastening | Screw mounting |
| Material | Thermoplastic |
| Surface Finishing | Matt Lacquered |
| Color | Champagne Gold |
| Lighting Function | Illuminated (ON) with Glow Lamp |
| Degree of Protection | IP20 |
| Impact Strength | IK04 |
| Connection Type | Screwed Terminal |
| Cable Section | 1-4 mm² |
| Device Width | 86 mm |
| Device Height | 87.4 mm |
| Device Depth | 34.4 mm |
| Built-in Depth | 19.7 mm |
| Min. Depth of Installation Box | 35 mm |
| Operating Temperature Range | -5°C to 35°C |
| Storage Temperature Range | -10°C to 70°C |
| Voltage Type | AC |
| Monitoring Contact | Yes |
| Earth Connection | Yes |
| Halogen Free | No |
| Antimicrobial Treatment | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| UK Building Regulations Part M Compliant | No |
| Brand | Legrand Obria |
| Product Type | Double Pole Switch with LED Indicator |
| Certification | British Standards |
| Installation Type | Indoor Use Only |
Order Legrand Obria 1-Gang Double Pole Switch 20A with LED Indicator Champagne | MEC21024CH at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
