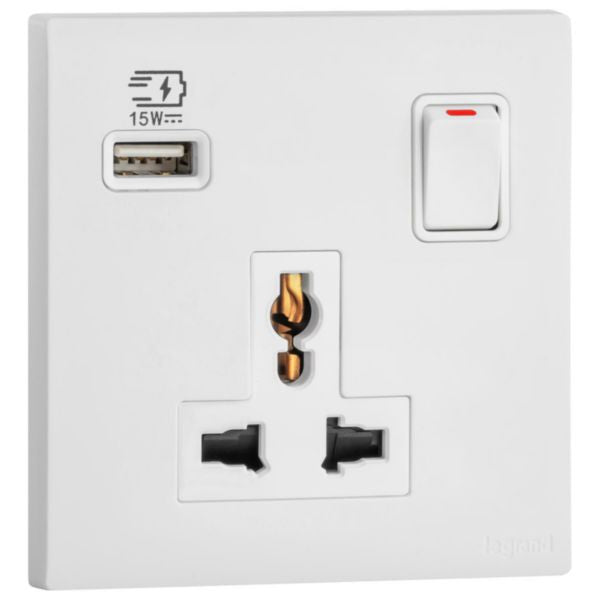

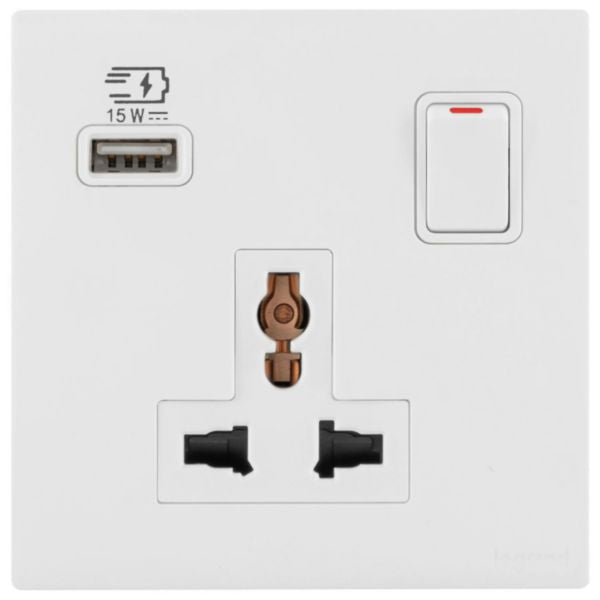

Obria 1 Gang 16A Multistandard Switched Socket with integrated 15W USB Type A charger. Supports Euro, US, Indian, Chinese and British standards. Matt White finish with safety shutters and screw terminals.
The Obria 1 Gang 16A Multistandard Switched Socket with USB Type A 15W is a versatile and modern electrical solution designed for contemporary living spaces. This innovative socket combines a multistandard switched socket with a powerful USB A charger, allowing simultaneous power supply to two electronic devices. The multistandard design supports Euro, US, Indian, Chinese, and British electrical standards, making it ideal for international usage and compatibility with various appliances and devices from around the world.
Features a robust screw-type terminal connection system that ensures secure and enhanced contact connectivity. The socket outlet is switchable, providing convenient control over power distribution. With a 15W USB A charger integrated into a single device, users can charge any compatible electronic device quickly and conveniently without requiring additional adapters or separate charging solutions. The Matt White finish provides a modern aesthetic that integrates seamlessly with contemporary interior design schemes.
The device incorporates safety shutters to maximize child protection and features marked terminals for easy identification during installation. With a nominal current rating of 16A at 250V AC (50-60 Hz), this socket delivers reliable performance for household electrical needs. The quick and easy plate clipping system ensures straightforward installation, while the full cover plate design maintains a professional appearance. Suitable for flush-mounted installation with a minimum built-in depth of 35mm, this socket represents the perfect combination of functionality, safety, and modern design.
Key Features
- Multistandard socket supporting Euro, US, Indian, Chinese and British electrical standards for global compatibility
- Integrated 15W USB Type A charger for fast and convenient device charging
- Switchable socket outlet with on/off control for convenient power management
- Safety shutters for maximum child protection and enhanced security
- Screw-type terminals for secured and enhanced contact connections with marked terminals for easy identification
- Modern Matt White finish with full cover plate design for contemporary aesthetic integration
- Quick and easy plate clipping system for straightforward installation
- Nominal current rating of 16A at 250V AC (50-60 Hz) for reliable household performance
- Flush-mounted installation compatible with minimum 35mm built-in depth
- Thermoplastic material construction for durability and longevity
Technical Specifications
| Specification |
Value |
| Product Model | Multi-standard socket with USB Type A charger |
| Reference Number | MEC33081WH |
| EAN Code | 3414972673440 |
| Brand | Legrand - Obria |
| Socket Type | 2P+E 16A Multi-standard, 250V with 15W USB A charger |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| USB Output Power | 15 W |
| Number of USB-A Ports | 1 |
| USB Current Rating | 3 A maximum |
| Number of Socket Outlets | 1 switchable outlet |
| Number of Modules | 2 |
| Connection Type | Screwed terminal |
| Terminal Capacity | 1-4 mm² |
| Cable Nature | Flexible or rigid |
| Colour | Matt White |
| RAL Number | 9003 (similar) |
| Material | Thermoplastic |
| Surface Finish | Matt |
| Degree of Protection | IP20 |
| Degree of Impact Strength | IK04 |
| Device Width | 86 mm |
| Device Height | 87.4 mm |
| Device Depth | 32.5 mm |
| Built-in Depth | 21.5 mm |
| Minimum Built-in Installation Box Depth | 35 mm |
| Mounting Method | Flush-mounted |
| Type of Fastening | Mounting with screw |
| Assembly Arrangement | Basic element with full cover plate |
| Operating Temperature Range | -5 to 35 °C |
| Storage Temperature Range | -10 to 70 °C |
| Voltage Type | AC |
| With On/Off Switch | Yes |
| Switch Operator Colour | White |
| Safety Features | Safety shutters for child protection |
| Terminal Marking | Yes |
| Halogen Free | No |
| Suitable Use | Recommended inside use only |
| Standards Supported | Euro, US, Indian, Chinese, British |
