Shop Legrand Obria 1 Gang 16A Multistandard Switched Socket USB Type A 15W Dark Silver | MEC33081SL In Iraq Best Prices
Premium multistandard switched socket with integrated USB Type A 15W charger, featuring screw terminals, safety shutters, and Dark Silver finish for modern homes and offices.

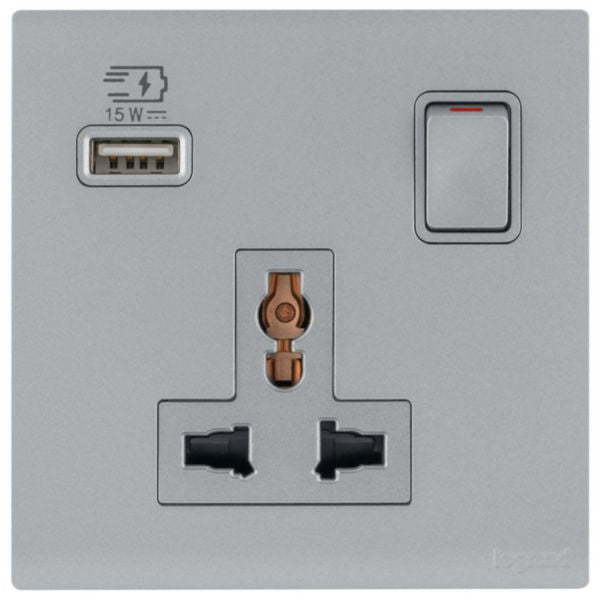

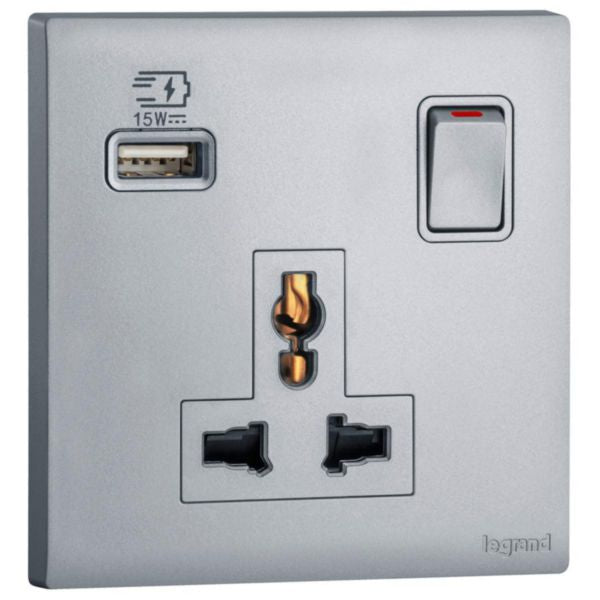

The Obria 1 Gang 16A Multistandard Switched Socket with USB Type A 15W charger is a premium electrical accessory designed to provide convenient power distribution for modern homes and offices. This innovative device combines a multistandard switched socket with an integrated USB Type A charger, allowing simultaneous connection of two electronic devices. The socket is compatible with Euro, US, Indian, Chinese, and British electrical standards, making it universally adaptable for international use.
This comprehensive wiring device features screw-type terminals for secured and enhanced connections, ensuring reliable power delivery with a maximum current rating of 3A for USB charging. The Dark Silver finish provides a modern aesthetic that seamlessly integrates with contemporary interior designs. With safety shutters for child protection and a quick and easy plate clipping system, this socket prioritizes both functionality and safety. The device operates at 250V with a frequency range of 50-60Hz and maintains an IP20 degree of protection rating.

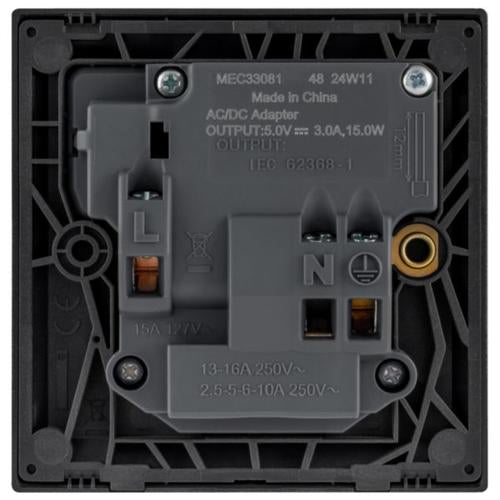

The Obria socket is constructed from high-quality thermoplastic material and features marked terminals for easy identification during installation. It supports a cable section capacity of 1-4mm², making it compatible with standard electrical wiring. With dimensions of 86mm width, 87.4mm height, and 32.5mm depth, this flush-mounted device requires a minimum built-in installation box depth of 35mm. The operating temperature range of -5 to 35°C ensures reliable performance in various environmental conditions, making it suitable for residential and commercial applications.
Key Features
- Multistandard compatibility with Euro, US, Indian, Chinese, and British electrical standards
- Integrated USB Type A 15W charger for fast and convenient device charging
- Screw-type terminals for secured and enhanced electrical connections
- Safety shutters for maximum child protection and enhanced safety
- Quick and easy plate clipping system for simple installation
- Dark Silver finish with modern full plate design for aesthetic integration
- Marked terminals for easy identification during installation
- IP20 degree of protection rating for indoor use
- IK04 impact strength rating for durability
- Supports 1-4mm² cable sections for standard electrical wiring
Technical Specifications
| Specification |
Value |
| Product Model | Multi-standard Socket with USB Charger |
| Reference Number | MEC33081SL |
| EAN Code | 3414972673426 |
| Brand | Legrand - Obria |
| Socket Type | 2P+E 16A Multi-standard, 250V |
| USB Specifications | 1x USB Type A, 15W output, 3A maximum current rating |
| Number of Modules | 2 modules |
| Connection Type | Screw-type terminals |
| Voltage Rating | 250V AC |
| Current Rating | 16A nominal |
| Frequency Range | 50-60 Hz |
| Cable Section Capacity | 1-4 mm² |
| Material | Thermoplastic (Halogen-free: No) |
| Color | Dark Silver |
| Surface Finish | Lacquered Matt |
| Device Width | 86 mm |
| Device Height | 87.4 mm |
| Device Depth | 32.5 mm |
| Built-in Depth | 21.5 mm |
| Minimum Installation Box Depth | 35 mm |
| Mounting Method | Flush-mounted with screw fastening |
| Protection Degree | IP20 |
| Impact Strength | IK04 |
| Operating Temperature Range | -5 to 35°C |
| Storage Temperature Range | -10 to 70°C |
| With On/Off Switch | Yes |
| Switch Operator Color | Silver |
| Safety Features | Safety shutters for child protection |
| Terminal Marking | Yes - marked terminals for easy identification |
| Smart Home Compatible | Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
| Power Delivery Support | No |
| Installation Type | Quick and easy plate clipping system |
| Recommended Usage | Inside use only |
| Warranty | Standard Legrand warranty coverage |
Order Legrand Obria 1 Gang 16A Multistandard Switched Socket USB Type A 15W Dark Silver | MEC33081SL at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
